Beschrijving
De ASUS Prime Z390M-Plus is een krachtig micro-ATX moederbord ontworpen voor Intel’s 8e en 9e generatie Core-processors via de LGA1151-socket, wat zorgt voor uitstekende prestaties en toekomstbestendigheid. Dit model biedt uitgebreide connectiviteit met onder andere HDMI en DVI-D voor scherpe grafische output, meerdere USB 3.1 Gen2 en Gen1 poorten voor snelle gegevensoverdracht, en een Gigabit LAN-poort voor stabiele netwerkverbindingen. Dankzij ondersteuning voor M.2 en SATA-opslagoplossingen is het systeem snel en flexibel uitbreidbaar, waardoor dit moederbord perfect is voor zowel gaming als productieve werkomgevingen.
Klik hier voor de processoren die worden ondersteund.
Klik hier voor de drivers

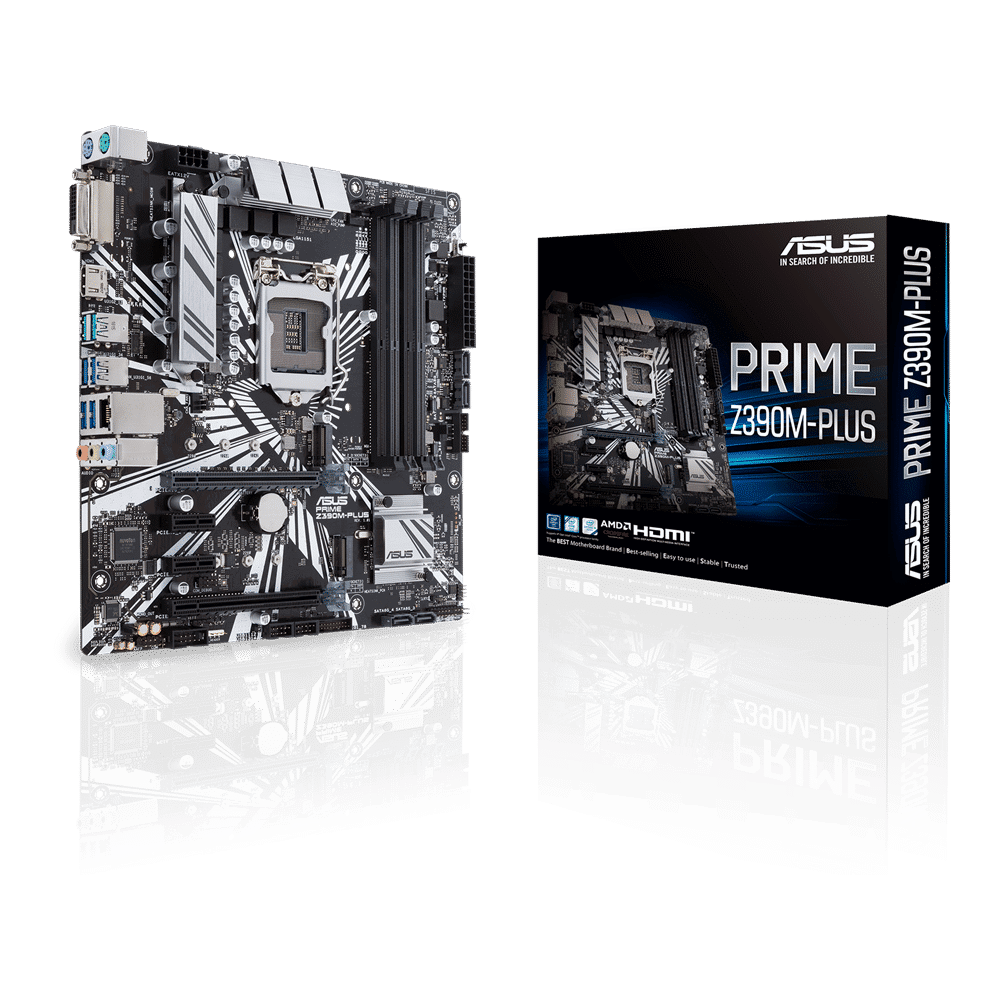

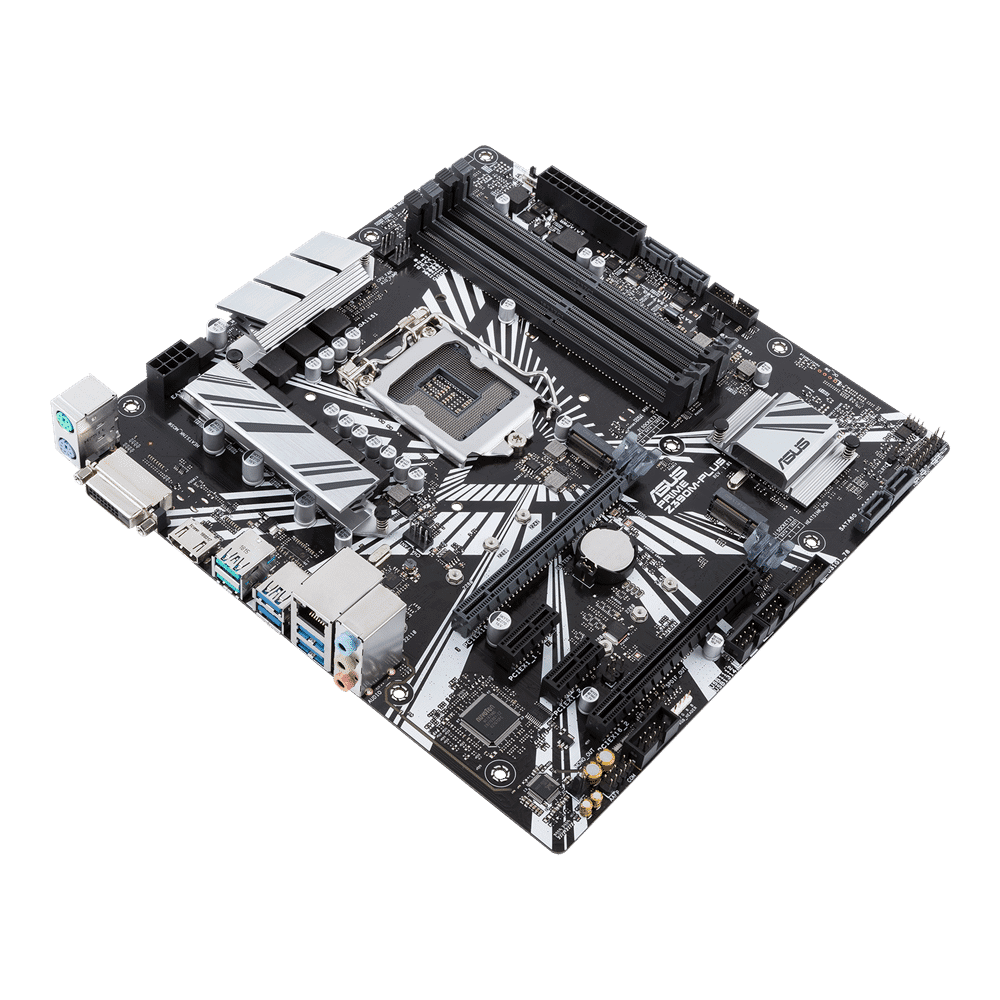

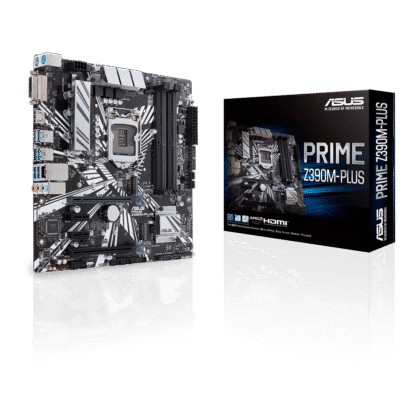

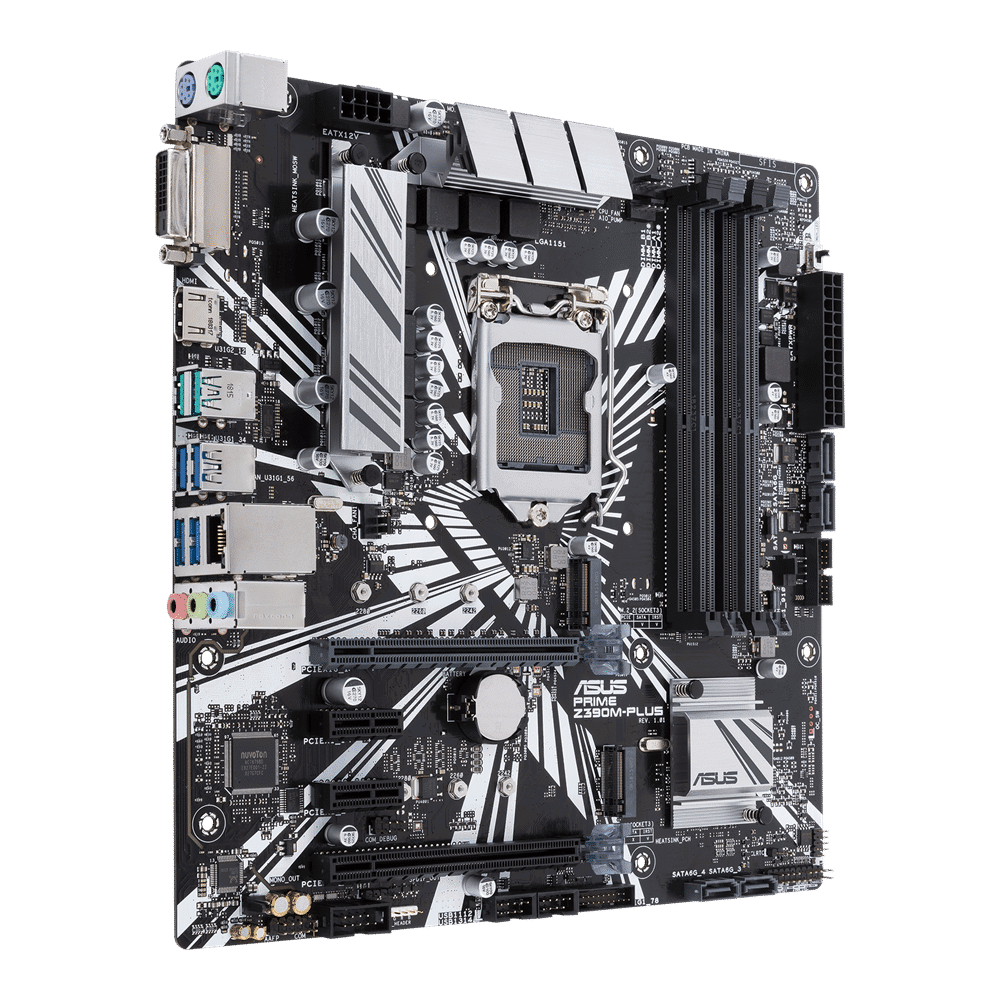

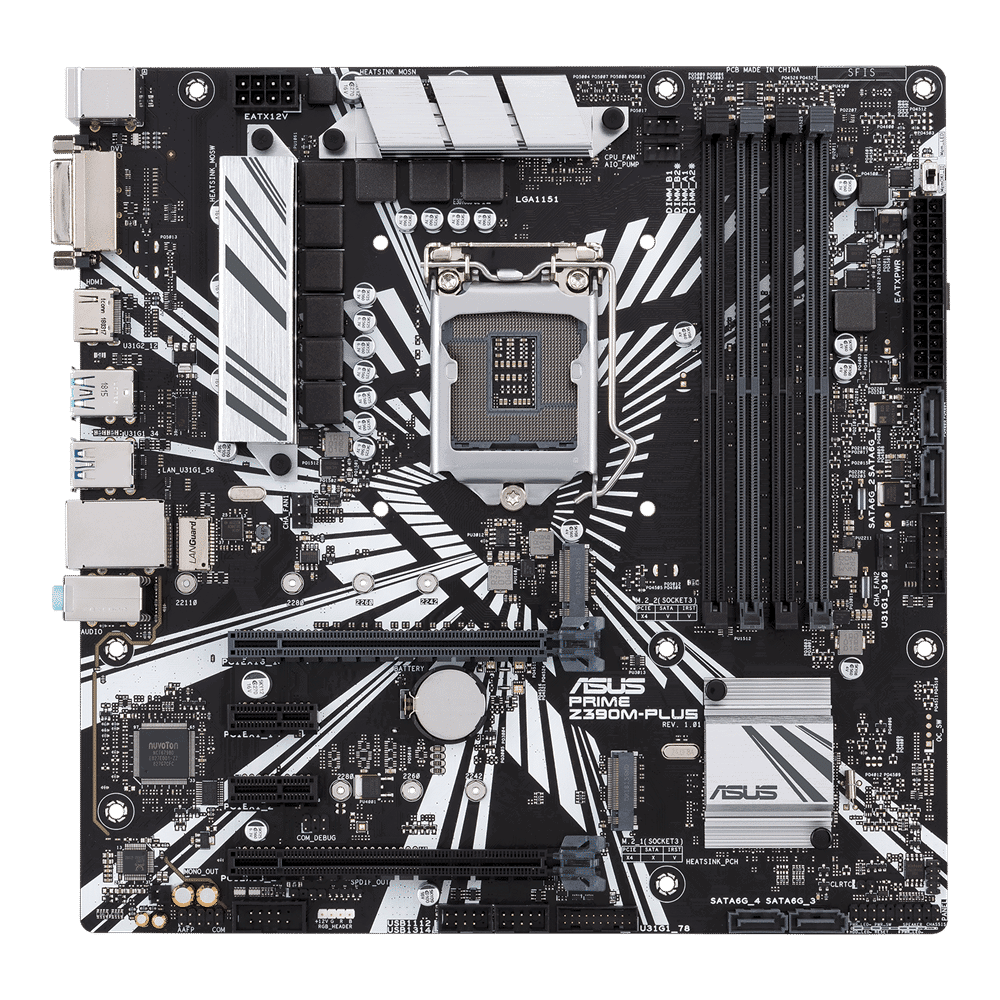

Product: ASUS Prime Z390M-Plus
Socket: 1151
Geschikt voor: 8e en 9e generatie processoren
Categorie: moederborden
Merk: ASRock
Staat: Nieuw – Retail
EAN: 0192876126622, 4718017126625
SKU: 90MB0Z60-M0EAY0, PRIME Z390M-PLUS
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (ASUS Prime Z390M-Plus)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
Model
PRIME Z390M-PLUS
CPU
* Raadpleeg www.asus.com voor lijst met ondersteunde CPU´s,Intel® Socket 1151for 9th / 8th Generation Pentium®/Celeron® Processors,Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® Z390
Geheugen
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,* De maximaal ondersteunde geheugenfrequentie verschilt per processor.,Ondersteunt Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture
Grafische
Multi-VGA output support : HDMI/DVI-D ports,- Supports HDMI with max. resolution 4096 x 2160 @ 30Hz,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,Integrated Graphics Processor- Intel® HD Graphics support,Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Ondersteuning Multi-GPU
Supports AMD CrossFireX™ Technology
Uitbreidingssleuven
1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) *,
1 x PCIe 3.0/2.0 x16 (max at x4 mode),
2 x PCIe 3.0/2.0 x1
Opslag
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),
4 x SATA 6Gb/s port(s), gray,Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1),PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card,Intel® Z390 Chipset : ,
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s),Anti-surge LANGuard
Audio
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.,Realtek® ALC8878-Channel High Definition Audio CODEC,- Supports : Jack-detection, Front Panel Jack-retasking,Audio Feature :,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB-poorten
2 x USB 3.1 Gen 2 port(s),
8 x USB 3.1 Gen 1 port(s) (4 at mid-board),Intel® Z390 Chipset :,
4 x USB 2.0 port(s) (4 at mid-board)
Speciale functies
– Stylish Fanless Design Heat-sink solution & MOS Heatsink,
– ASUS O.C. Tuner,ASUS Optimem II：,- MemOK! II,M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds),ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,
– ASUS Overvoltage Protection: World-class circuit-protecting power design,
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,
– Improved DDR4 Stability,ASUS EPU :,- EPU,ASUS Exclusive Features :,
– AI Suite 3,- Ai Charger,ASUS Quiet Thermal Solution :,
– ASUS Fan Xpert 4,ASUS EZ DIY :,
– ASUS CrashFree BIOS 3,
– ASUS EZ Flash 3,
– ASUS UEFI BIOS EZ Mode,ASUS Q-Design :,
– ASUS Q-Slot,
– ASUS Q-DIMM

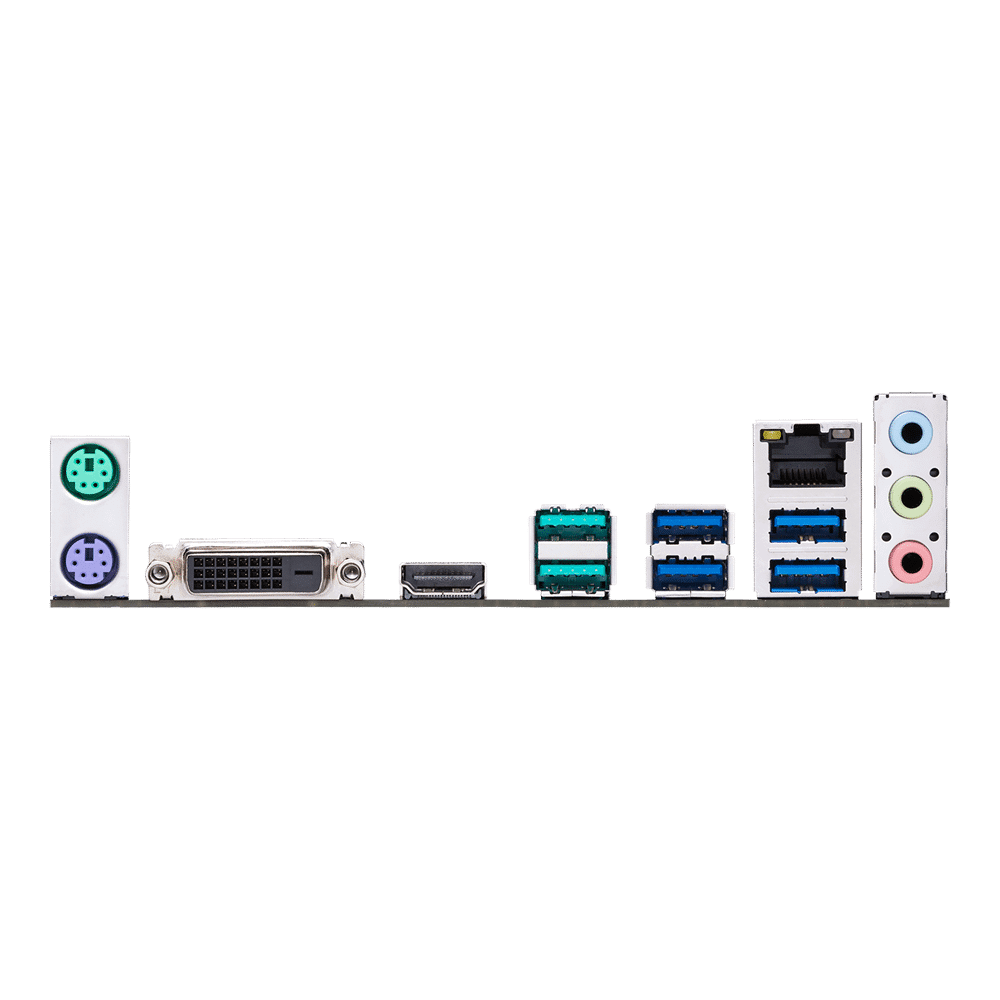

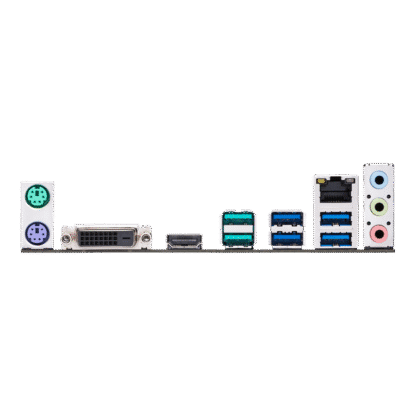

I/O-poorten achterzijde
2 x USB 3.1 Gen 2 Type-A,,
1 x DVI-D,
1 x PS/2 keyboard (purple),
1 x PS/2 mouse (green),
4 x USB 3.1 Gen 1 Type-A,
3 x Audio jack(s),
1 x HDMI,
1 x LAN (RJ45) port(s)
Interne I/O
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin),
1 x Mono Out header,
1 x RGB Header,
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),
1 x MemOK! II switch(es),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),
2 x Chassis Fan connector(s) (2 x 4-pin),1 x 8-pin EATX 12V Power connectors,
1 x System panel connector,
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),
1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),
1 x CPU Fan connector(s) (1 x 4-pin),1 x AIO_PUMP connector (1 x 4-pin),
1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),
1 x Front panel audio connector(s) (AAFP),
1 x Clear CMOS jumper(s)
Accessoires
1 x SCD (by region),
2 x SATA 6Gb/s cable(s),
User´s manual,
I/O Shield,
1 x M.2 Screw Package
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Beheermogelijkheden
WfM 2.0, DMI 3.0, WOL by PME, PXE
Ondersteunde disks
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Besturingssysteem
Windows® 10 64-bit
Vormfactor
mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
NB
* PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card. **
** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
