Product informatie

ASUS Z170 Pro Gaming:  moederbord | ATX | Socket 1151 | 6e en 7e Gen CPU Support | Intel Z170 | 4 x DDR4 | PCI-e 3.0 x16 | PCI-e 3.0 x1  | M.2 | Sata-600 | USB 3.1 Gen2 Type-A | USB 3.1 Gen2 Type-C | Displayport | HDMI

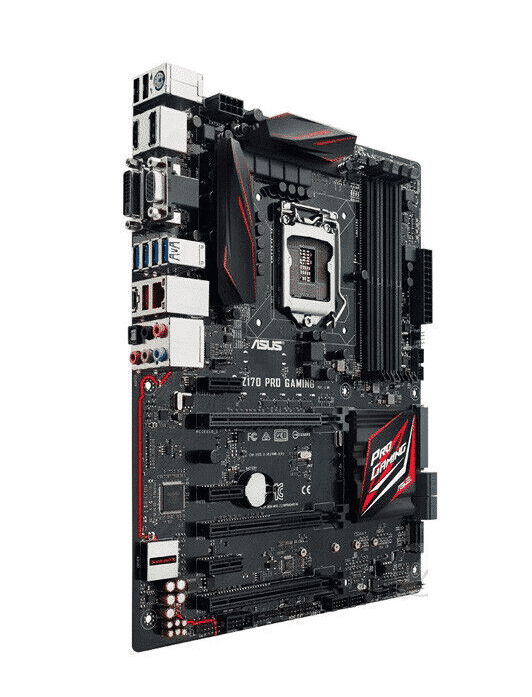

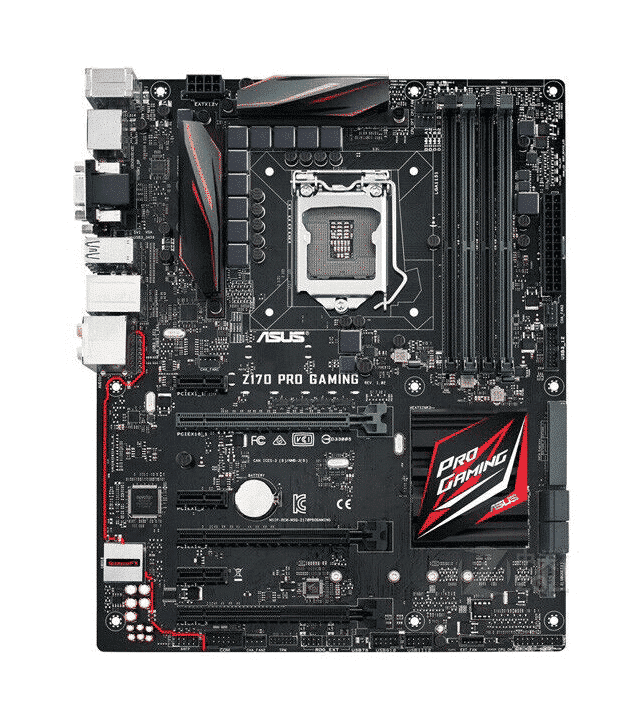

Product:ASUS Z170 Pro Gaming
Socket: Socket 1151
Geschikt voor: 6e en 7e generatie processoren
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished – voorzien van de laatst beschikbare bios versie
EAN: 4053162931268, 4712900114874
SKU: 90MB0MD0-M0EAY0, Z170 PRO GAMING
Garantie: 6 maanden

Drivers voor de ASUS Z170 Pro Gaming
Processoren die door worden ondersteund door de ASUS Z170 Pro Gaming

pakketinhoud:
– Moederbord (ASUS Z170 Pro Gaming )
–IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

CPU
LGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3, Pentium®, and Celeron® processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.

Chipset
Intel® Z170 Express Chipset

Memory
4 x DIMM, maximum 64 GB, DDR4 3400(O.C.)*/3333(O.C.)*/3200(O.C.)*/
3100(O.C.)*/3000(O.C.)*/2933(O.C.)*/2800(O.C.)*/2666(O.C.)*/2600(O.C.)*/
2400(O.C.)*/2133 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please
refer to Memory QVL (Qualified Vendors List) for details.
** Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors
List).

Graphics
Integrated graphics processor – Intel® HD Graphics support Multi-VGA output support: DisplayPort, HDMI, D-sub, DVI ports
– Supports DisplayPort 1.2 with maximum resolution of 4096 x 2304@60Hz
– Supports HDMI 1.4b with maximum resolution of 4096 x 2160@24Hz
– Supports DVI with maximum resolution of 1920 x 1200 @ 60 Hz
– Supports D-sub with maximum resolution of 1920 x 1200 @ 60 Hz
– Supports up to three displays simultaneously
Supports Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD Technology, and Intel® InsiderTM
Maximum shared memory of 512 MB

Expansion slots
2 x PCI Express 3.0 x16 slots (single at x16 mode or dual at X8 mode)
1 x PCI Express 3.0 x16 slot (max. at x4 mode)
3 x PCI Express 3.0 x1 slots

Multi-GPU Support
Supports NVIDIA® 2-Way/Quad-GPU SLI™ Technology
Supports AMD® 3-Way/Quad-GPU CrossFireX™ Technology

Audio
SupremeFX 8-Channel High Definition Audio CODEC
– Supports Jack-detection, Multi-streaming, and Front Panel MIC Jack-retasking
– High quality 115dB SNR stereo playback output Audio Features:
– SupremeFX Shielding™ Technology
– Headphone AMP
– Sonic Radar II
– Optical S/PDIF out port at back panel

Storage
Intel® Z170 Express Chipset with RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology 14 support
– 1 x SATA Express port (gray, compatible with 2 x SATA 6.0 Gb/s ports)
– 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x4 mode)*
– 4 x SATA 6.0 Gb/s ports (gray)
– Supports Intel® Smart Response Technology**
* When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
** This function works depending on the type of CPU installed.

LAN
Intel® Gigabit LAN Anti-surge LANGuard
GameFirst technology

USB ASMedia® USB 3.1 Controller
– supports ASUS USB 3.1 Boost:
– 2 x USB 3.1 ports (1 Type-A, red; 1 Type-C, black at back panel)
Intel® Z170 Express Chipset
– supports ASUS USB 3.1 Boost:
– 6 x USB 3.0 / 2.0 ports (2 ports at mid-board, 4 ports at rear panel, blue)
– 8 x USB 2.0/1.1 ports (6 ports at mid-board, 2 ports at rear panel, black)*
* Two USB 2.0 ports at mid-board share with ROG extension (ROG_EXT) port.

ASUS
gaming features Gamer’s Guardian
– DIGI+ VRM
– DRAM Overcurrent Protection
– ESD Guards on VGA, LAN, Audio, KBMS and USB 3.0/ 2.0 ports
– Highly Durable Components
– Stainless Steel Back I/O

Performance Optimization
ASUS Dual Intelligent Processors 5
– 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+
VRM, Fan Xpert 3, and Turbo App
DIGI+ VRM
– ASUS DIGI+ VRM utility
EPU
– EPU
TPU
– Auto Tuning, TurboV, GPU Boost
Fan Xpert 3 featuring Fan Auto Tuning function and multiple thermistors
selection for optimized system cooling control
RAMCache Media Streamer
– Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go!
– Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
EZ DIY
Push Notice
– Monitor your PC status with smart devices in real time
UEFI BIOS EZ Mode featuring friendly graphics user interface
– O.C. Tuner
– CrashFree BIOS 3
– EZ Flash 3
Q-Design
– ASUS Q-Shield
– ASUS Q-DIMM
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
ASUS Exclusive Features
– USB 3.1 Boost featuring speedy USB 3.1 transmission
– AI Suite 3
– Disk Unlocker
– AI Charger+
– ASUS CPU-Z

Rear Panel I/O ports
1 x PS/2 keyboard/mouse combo port 1 x Optical S/PDIF out
1 x DisplayPort 1 x DVI port
1 x HDMI port 1 x D-Sub port
1 x LAN (RJ-45) port
2 x USB 2.0 / 1.1 ports
4 x USB 3.0 / 2.0 ports
2 x USB 3.1 ports (1 Type-A, red; 1 Type-C, black)
8-channel audio I/O ports

Internal connectors
1 x 19-pin USB 3.0 / 2.0 connector support additional 2 USB 3.0 / 2.0 ports
3 x USB 2.0 / 1.1 connectors support additional 6 USB 2.0 / 1.1 ports (One connector shares with the ROG_EXT header)
1 x System panel connector
1 x Front panel audio connector (AAFP)
1 x SATA Express connector, gray, compatible with 2 x SATA 6.0 Gb/s ports 4 x SATA 6.0 Gb/s connectors (gray)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices 1 x 4-pin CPU fan connector
1 x 4-pin CPU optional fan connector
1 x 5-pin EXT_FAN (Extension Fan) connector
3 x Chassis fan connectors (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Thermal sensor connector 1 x COM header
1 x TPM header
1 X CPU Over Voltage jumper (CPU_OV) 1 x Clear CMOS jumper
1 x 24-pin EATX power connector
1 x 8-pin ATX 12V power connector
1 x ROG extension (ROG_EXT) header

BIOS features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

OS support
Windows® 10* Windows® 8.1* Windows® 7
* 64-bit supported only
Form factor ATX form factor: 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
