Beschrijving

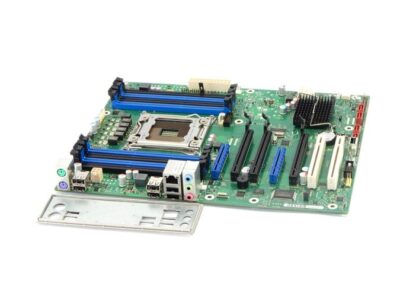

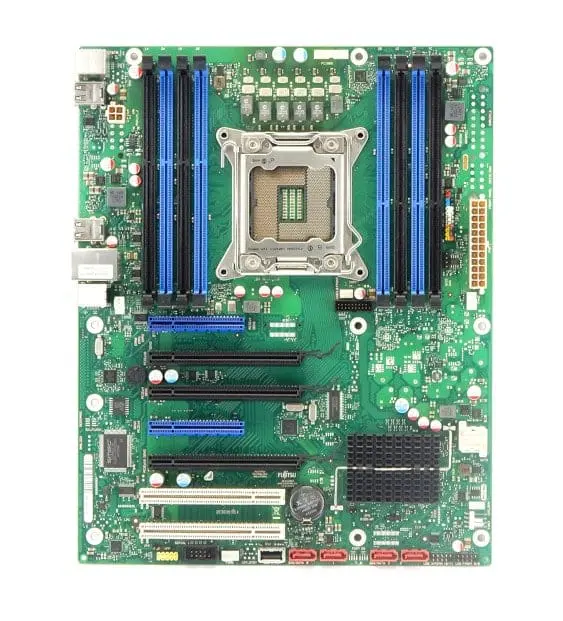

Moederbord – Socket 1156 | ATX | Intel C602 Chipset | DDR3 up to 64GB | Gigabit Ethernet | PCI-e 3.0 x16 | PCI-e 3.0 x8 | PCI-e 2.0 x16 PCI |SATA-300 | SATA-600 | USB 2.0 |
Product: D3128-B25 GS1;
Merk: Fujitsu;
Staat: Gebruikt
Garantie: 6 Maanden
CPU
– LGA2011 (up to 150W TDP)
– Intel® Xeon® Processor E5-26xx [V2] series
– Intel® Xeon® Processor E5-16xx [V2] series
– Intel® CoreTM i7 Processor 38xx / 39xx series
– Intel® CoreTM i7 Processor 48xx / 49xx series
Chipset
– Intel C602
Memory
8 DIMM Sockets DDR3, max. 64GB, Single / Dual / Triple / Quad Channel
800/1066/1333/1600MHz, single rank / dual rank unbuffered, ECC / non
support (depends on processor)
LAN
– Intel 82579LM LAN Controller with 10/100/1000 MBit/s
Slots
– 1x PCI Express 3.0 x16
– 2x PCI Express 2.0 x16
– 1x PCI Express 3.0 x8
– 2x PCI
SATA
– 2x SATA III 600 Interfaces (up to 6GBit/s, NCQ);
– 4x SATA II 300 Interfaces ((up to 3GBit/s, NCQ; no support for optical drives)
Audio
Conexant CX20642, 5.1 Multichannel, High Definition Audio
Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– 6 x USB 2.0 connectors|
– 2 x USB 2.0 connectors|
– 2x SATAII connectors
– 4x SATAIII connectors
– 1x FireWire™ (9-Pin, Intel standard Header)
– 1x Serial (FIFO, 16550 compatible)
Rear Panel I/O
I/O Panel
– 2x PS/2
– 6 x USB 2.0
– 1 x RJ45 LAN Jack
– Audio
Accessories
– I/O Shield
Form Factor
– ATX Form Factor
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
