Product informatie

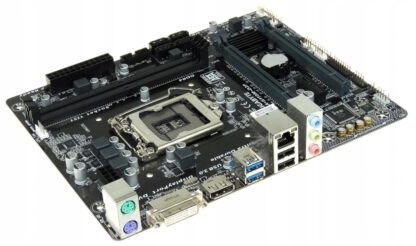

De Gigabyte GA-H110M-D2P WG is een Micro-ATX Socket 1151 moederbord gebaseerd op de Intel H110 chipset. Het bord dient gecombineerd te worden met DDR4 geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de Gigabyte GA-H110M-D2P WG , 4 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.

Eigenschappen: Moederbord | M-ATX | Socket 1151 | 2x DDR4 | SATA-600 | PCI-e 2.0 x1 | PCI-e 2.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | HDMI | DVI-I

Product: Gigabyte GA-H110M-D2P WG
Aansluiting: Socket 1151
Geschikt voor: 6e en 7e generatie processoren
Categorie: moederborden
Merk: Gigabyte
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
Garantie: 6 maanden

pakketinhoud:
– Moederbord (GA-H110M-D2P WG )
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– kabels

CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/
Intel® Core™ i3 processors/Intel® Pentium® processors/
Intel® Celeron® processors in the LGA1151 package
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel® H110 Express Chipset

Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than the size of
the physical memory installed.
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Go to GIGABYTE’s website for the latest supported memory speeds and
memory modules.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x DVI-I port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version.
Maximum shared memory of 512 MB

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module
and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

Storage Interface
Chipset:
– 4 x SATA 6Gb/s connectors

USB
Chipset:
– 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through
the internal USB headers)

Internal Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x DVI-I port
1 x DisplayPort
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE® I/O Controller Chip

Hardware Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you
install.

BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard specifications.
– 3D OSD
– @BIOS
– AutoGreen
– Cloud Station
– EasyTune
– Easy RAID
– Fast Boot
– Smart TimeLock
– Smart Keyboard
– Smart Backup
– System Information Viewer
– USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install

Operating System
Support for Windows 10/8.1 64-bit
Support for Windows 7 32-bit/64-bit
* Please download the “Windows USB Installation Tool” from GIGABYTE’s website
and install it before installing Windows 7.

Form Factor
Micro ATX Form Factor; 22.6cm x 18.0cm
