Product informatie

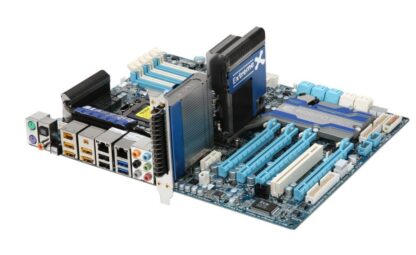

Het Gigabyte GA-X58A-UD7 Socket 1366 moederbord is een ATX moederbord welke is voorzien van 4 DDR3 geheugensloten. Het Gigabyte GA-X58A-UD7 moederbord is een LGA1366 moederbord welke is voorzien van o.a. een netwerk (RJ-45) aansluiting, IEEE1394, eSATA en maar liefst 6 DDR3 geheugen sloten

Korte Specificaties:


Moederbord – Socket 1366 | ATX | Intel X58 Chipset | 6 x DDR3 up to 24GB | Gigabit Ethernet | PCI | PCI-e 2.0 | PCI-e x16 |  eSATA | Firewire 400 (6-pin) |  USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | PATA-133 | SATA-300 | SATA-600


Processoren die ondersteund worden door de Gigabyte GA-X58A-UD7
Drivers voor de Gigabyte GA-X58A-UD7


Product: Gigabyte GA-X58A-UD7;
Categorie: Intel socket 1366 Moederborden;
Merk: Gigabyte;
EAN: 4719331850227
SKU: GA-X58A-UD5
Staat: Gebruikt – Bios bijgewerkt naar de laatste versie
Garantie:
3 Maanden


pakketinhoud:
– Moederbord (Gigabyte GA-X58A-UD7)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels

CPU


– Support for an Intel® Core™ i7 series processor in the LGA1366 package
(Go to GIGABYTE’s website for the latest CPU support list.)
– L3 cache varies with CPU

Chipset


– North Bridge: Intel® X58 Express Chipset
– South Bridge: Intel® ICH10R


Memory


– 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory(Note 1)
– Dual/3 channel memory architecture
– Support for DDR3 2200/1333/1066/800 MHz memory modules
– Support for non-ECC memory modules
– Support for Extreme Memory Profile (XMP) memory modules

Audio


– Realtek ALC889 codec
– High Definition Audio
– 2/4/5.1/7.1-channel
– Support for Dolby® Home Theater
– Support for S/PDIF In/Out
– Support for CD In

LAN


– 2 x RTL8111D chip (10/100/1000 Mbit)
– Support for Teaming
– Support Smart Dual LAN

IEEE 1394


– T.I. TSB43AB23 chip
– Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Slots


2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2)
2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 3) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 and PCIEX8_2 slots conform to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
1 x PCI slot

Storage


South Bridge:
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Marvell 9128 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0, and RAID 1
* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
* SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.

GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
JMicron JMB362 chip:
2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive


USB


Integrated in the South Bridge
Up to 10 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
Up to 2 USB 3.0/2.0 ports on the back panel

Connector


1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
8 x SATA 3Gb/s connectors
2 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x power fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x power button
1 x reset button

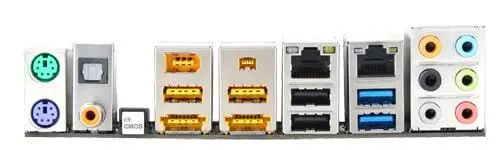

Rear Panel I/O
I/O Panel


-1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
1 x clearing CMOS button
2 x IEEE 1394a ports
4 x USB 2.0/1.1 ports
2 x USB 3.0 ports
2 x eSATA/USB Combo connectors
2 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

Accessories


– I/O Shield

Form Factor


– ATX Form Factor
– 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Specificaties

Gewicht 1 kg
Intel

Socket 1366

Merk

Gigabyte

Chipset

Intel X58

Formaat

ATX

Geheugentype

DDR3

Aantal geheugenslots

6

Maximale geheugengrootte

24 GB

Aansluitingen

2x RJ-45 LAN, eSATA, Firewire 400 (6-pin), USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Opslag interfaces

PATA-133, Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 8x, PCI-e x1, PCI-e x16

Socket

Gigabyte GA-X58A-UD7 socket 1366 moederbord

Snelle levering

Merk: Gigabyte
Model: GA-X58A-UD7
Socket: LGA1366
Chipset: Intel X58
Geheugen: 6x DDR3 (24GB Max)
Form-Factor: ATX
EAN: 4719331844110
SKU: GA-EX58A-UD7


Artikelnummer: GA-X58A-UD7 Categorieën: , , Tags: , ,
