Gigabyte GA-Z170XP-SLI: moederbord | ATX | Socket 1151 | 6e en 7e Gen CPU Support | Intel Z270 | 4 x DDR4 | PCI-e 3.0 x16 | PCI-e 3.0 x1 | M.2 Socket (Key E) | Sata-600 | Ultra M.2 | USB 3.1 Gen1 | DVI-D | D-Sub | HDMI

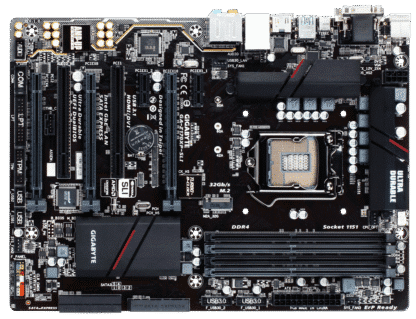

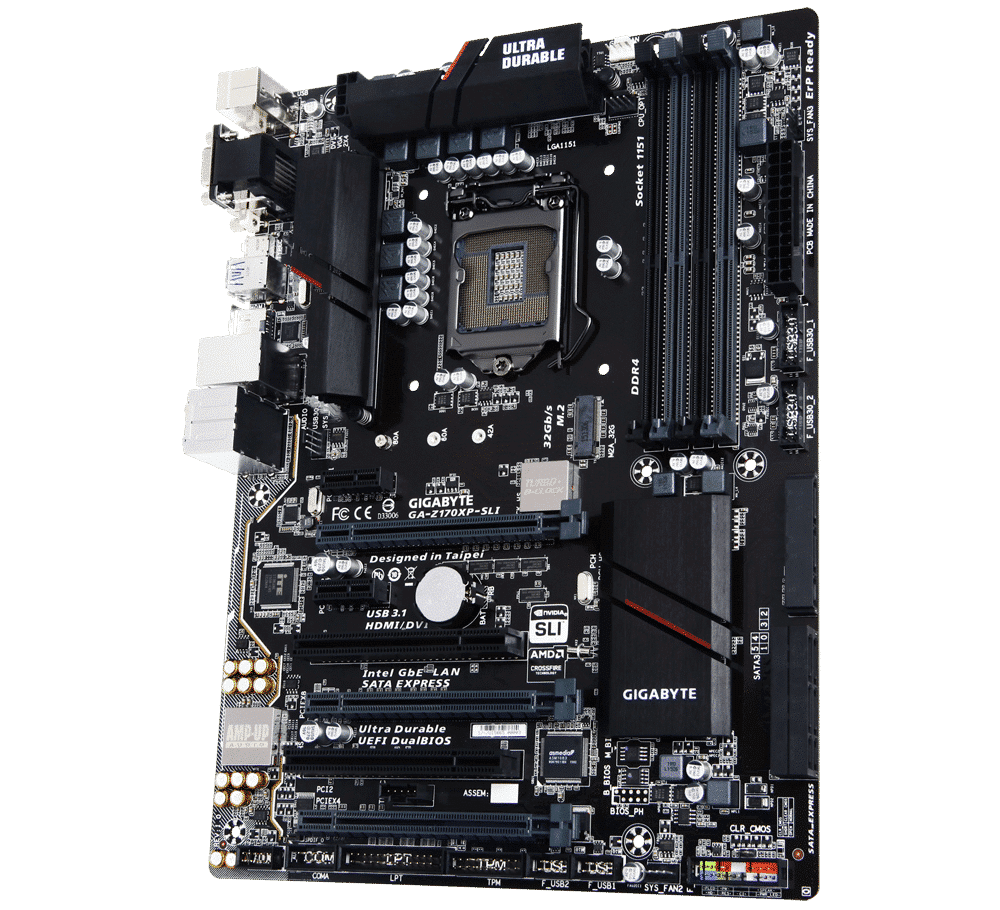

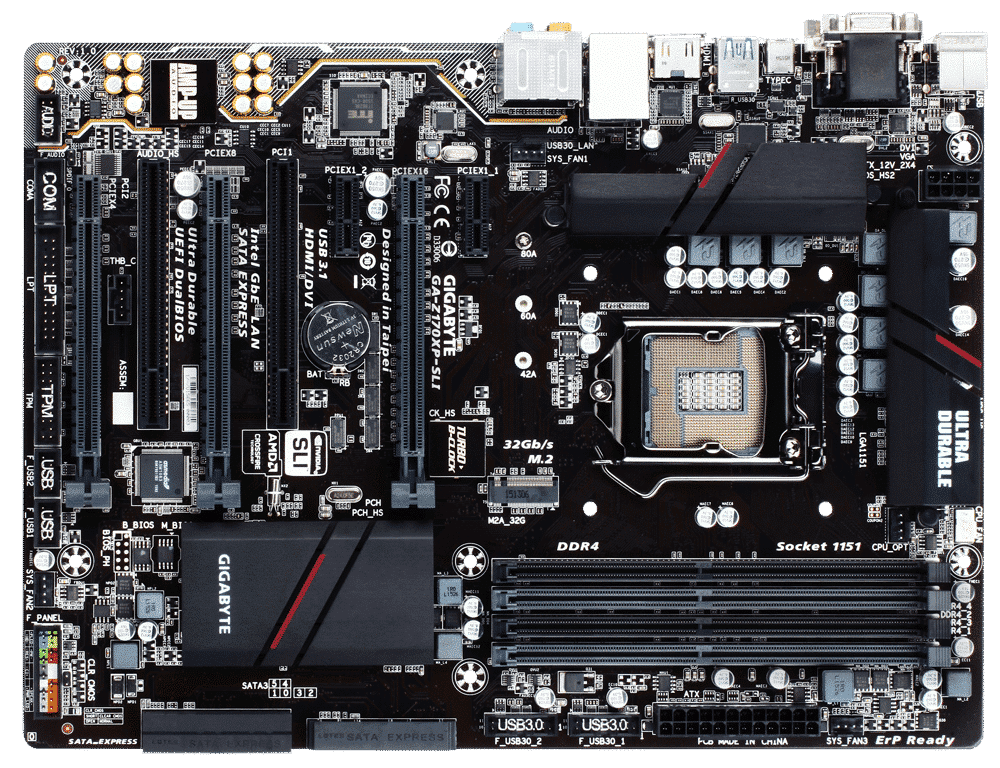

Product: Gigabyte GA-Z170XP-SLI
Socket: Socket 1151
Geschikt voor: 6e en 7e generatie processoren
Categorie: Moederborden
Merk: Gigabyte
Staat: Refurbished – voorzien van de laatst beschikbare bios versie
EAN: 0889523001271, 4719331828325
SKU:GA-Z170XP-SLI
Garantie: 6 maanden
Drivers voor de Gigabyte GA-Z170XP-SLI
Processoren die door worden ondersteund door de Gigabyte GA-Z170XP-SLI
pakketinhoud:
– Moederbord (GA-Z170XP-SLI)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– L3 cache varies with CPU
Chipset
– Intel® Z170
Memory
– 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
– Dual channel memory architecture
– Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
– Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
– Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
– Support for Extreme Memory Profile (XMP) memory modules
BIOS
– 2 x 64 Mbit flash
– Gebruik van gelicentieerde AMI UEFI BIOS
– Ondersteuning voor DualBIOS™
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 1024 MB
Multi-Graphics Technology
– Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
– Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
Audio
– Realtek® ALC1150 codec
– High Definition Audio
– 2/4/5.1/7.1-channel
– Support for S/PDIF Out
LAN
– Realtek® GbE LAN-chip (10/100/1000 Mbit)
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. When the PCIEX1_2 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
2 x PCI slots
Opslag interfaces
1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
3 x SATA Express connectors
6 x SATA 6Gb/s connectors
– Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-8 Internal Connectors,” for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB
Chipset:
7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+ASMedia® ASM1142 chip:
1 x USB Type-C™ port on the back panel, with USB 3.1 support
1 x USB 3.1 Type-A port (red) on the back panel
Interne I/O-Connectoren
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
3 x SATA Express connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 3.0/2.0 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

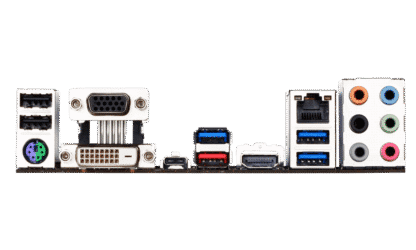

Connectoren op het achterpaneel
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 support
1 x USB 3.1 Type-A port (red)
3 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Accessories
– I/O-Shield
Form Factor
– ATX Form Factor; 30.5cm x 22.5cm
OS
– Windows® 10 64-bit (for 7th Generation Intel® Processors)
– Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Gewicht | 1 kg |
---|---|
Intel | Socket 1151 |
Merk | Gigabyte |
Chipset | Intel Z270 |
Formaat | ATX |
Geheugentype | DDR4 |
Aantal geheugenslots | 4 |
Maximale geheugengrootte | 64 GB |
Aansluitingen | D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen1 Type-A, USB 3.1 Gen1 Type-C |
Opslag interfaces | SATA Express 10 Gb/s, Serial ATA-600, Ultra M.2 Socket |
Interfaces | M.2, PCI, PCI-e 3.0 x1, PCI-e 3.0 x16 |
Model | GA-Z170XP-SLI |
Lengte | 30.5 cm |
Breedte | 22.5 cm |
Pakketinhoud | Moederbord en I/O-Shield |
