Product informatie

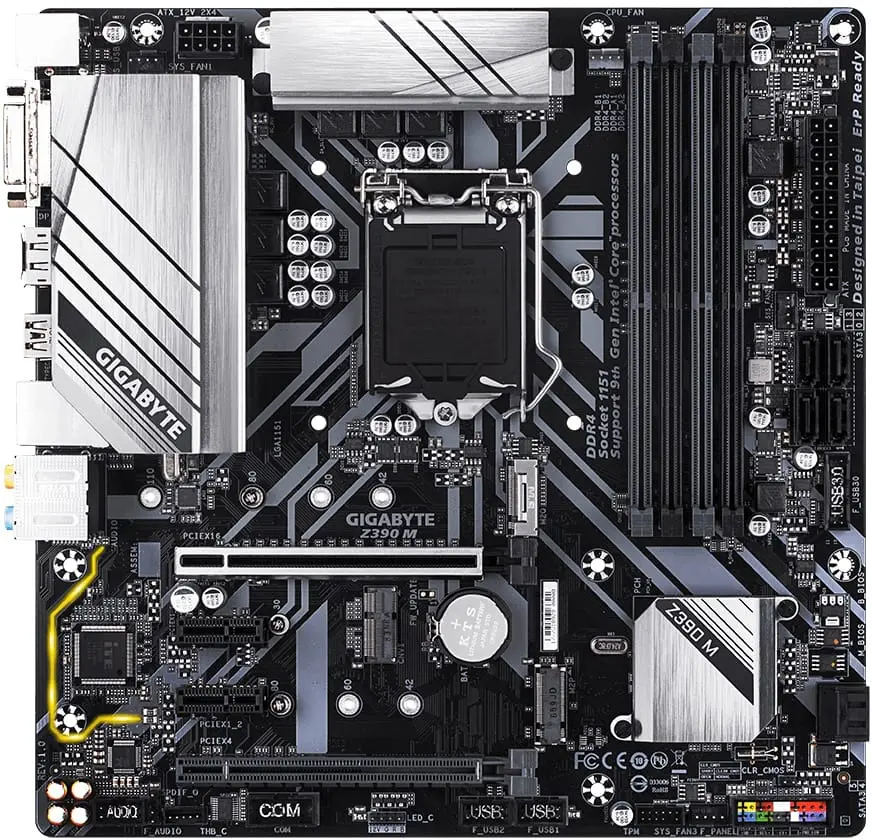

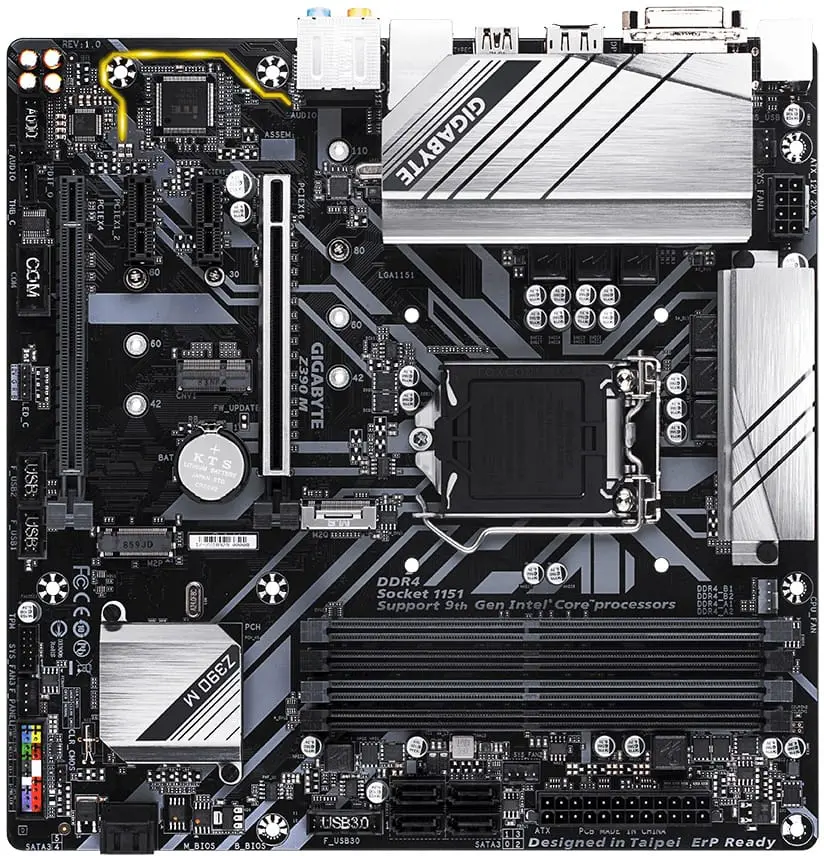

Het Gigabyte Z390 M moederbord is een Micro-ATX moederbord met plaats voor 4 DDR4 geheugen modules, met een maximum van 128GB.



Specificaties:
 moederbord | Micro-ATX | Socket 1151 | Intel Z390-chipset | PCI-e 3.0 x1, 2x PCI-e 3.0 x16 | 2x M.2 (PCI-e 3.0 x4 + SATA) | 6x SATA-600 | 6x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen1, 5Gb/s) type-c | USB 3.2 (Gen2, 10Gb/s) | DisplayPort | DVI-D | HDMI


Product: Z390 M
Socket:
Socket 1151
Geschikt voor: 8e en 9e generatie processoren
Categorie: Moederborden
Merk: Gigabyte
Staat: Nieuw (1x gebruikt om CPU te testen) – BIOS geüpdatet naar de nieuwste versie
EAN: 4719331804848
SKU:
GA-Z390 M, Z390 M, Z390-M
Garantie: 6 maanden


Drivers voor de Gigabyte Z390 M
Processoren die door de Gigabyte Z390 M worden ondersteund


pakketinhoud:
– Moederbord (Z390 M)
– IO-Shield (blikken achterplaatje)
– handleiding
– driver-cd
– kabels


CPU
Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)


Chipset
Intel® Z390 Express Chipset


Memory
4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed.
Dual channel memory architecture
Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules


Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU.


Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out


LAN
Intel® GbE LAN chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)


Multi-Graphics Technology
– Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies


Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready


USB Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper


Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 2 Type-A port (red)
2 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks


I/O Controller
iTE® I/O Controller Chip


H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.


BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features
– Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
– Support for Q-Flash
– Support for Xpress Install


Operating System
Support for Windows 10/8.1/8/7


Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm

Specificaties

Gewicht1 kg
Intel

Socket 1151

Merk

Gigabyte

Chipset

Intel Z390

Formaat

Micro-ATX

Geheugentype

DDR4

Aantal geheugenslots

4

Maximale geheugengrootte

128 GB

Aansluitingen

Displayport, DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0, USB 3.1 Gen1 Type-C

Opslag interfaces

M.2 (PCI-e 2.0 x4 + SATA), Serial ATA-600

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16, PCI-e 3.0 x4

Socket

Gigabyte Z390 M socket 1151 moederbord

Snelle levering

Merk: Gigabyte
Model:GA-Z390 M
Socket: LGA1151
Chipset: Intel Z390
Geheugen: 4x DDR4 (128GB Max)
Form-Factor: Micro-ATX
EAN: 4719331804848


Artikelnummer: Gigabyte Z390 M Categorieën: , , Tags: , ,
