Beschrijving

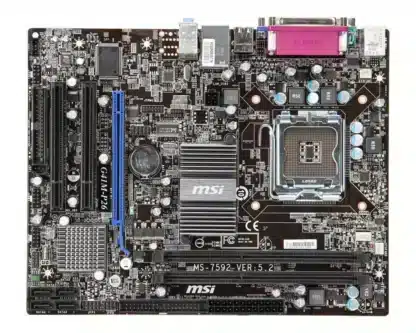

MSI G41M-P26: Moederbord | Micro-ATX | Socket 775 | 2x DDR3 (max 8GB) | 4x SATA-300 | PATA-100 | PCI | PCI-e x16 | PCI-e x16 | USB 2.0 | VGA (D-Sub)
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: MSI G41M-P26
Socket: Socket 775
Categorie: moederborden
Merk: ASRock
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN: 0816909080100, 4719072205027
SKU: 7592-120R, G41M-P26
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (MSI G41M-P26)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
– LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
– Supports FSB 1333/1066/800 MHz
– Supports Hyper-Threading Technology
– Supports Untied Overclocking Technology
– Supports EM64T CPU
Chipset
– Northbridge: Intel® G41
– Southbridge: Intel® ICH7
Memory
– Dual Channel DDR2 memory technology
– 2 x DDR2 DIMM slots
– Supports DDR3 800/1066/1333** non-ECC, un-buffered memory
– Max. capacity of system memory: 4GB**
BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Audio
– 5.1 CH Windows® Vista™ Premium Level HD Audio (VIA® VT1708S Audio Codec)
LAN
– PCI Express LAN 10/100 Fast Ethernet by Atheros AR8132
Slots
– One PCI Express x16 slot (PCI Express Bus SPEC V1.0 compliant).
– Two 32-bit v2.3 master PCI bus slots.
– Support 3.3v/5v PCI bus interface.
Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– CPU x1/ System x2 FAN connectors
– CD-in connector
– Front panel audio connector
– Front panel connector
– 1 x chasis intrusion connector
– 2 x USB 2.0 connectors
– 1 x Floppy disk drive connector
– 4 x Serial ATAII connectors
– 1 x ATA100 connector
– 1 x SPDIF-Out connector
– Clear CMOS Jumper
– 1 x Serial port connector
– 1 x TPM module connector

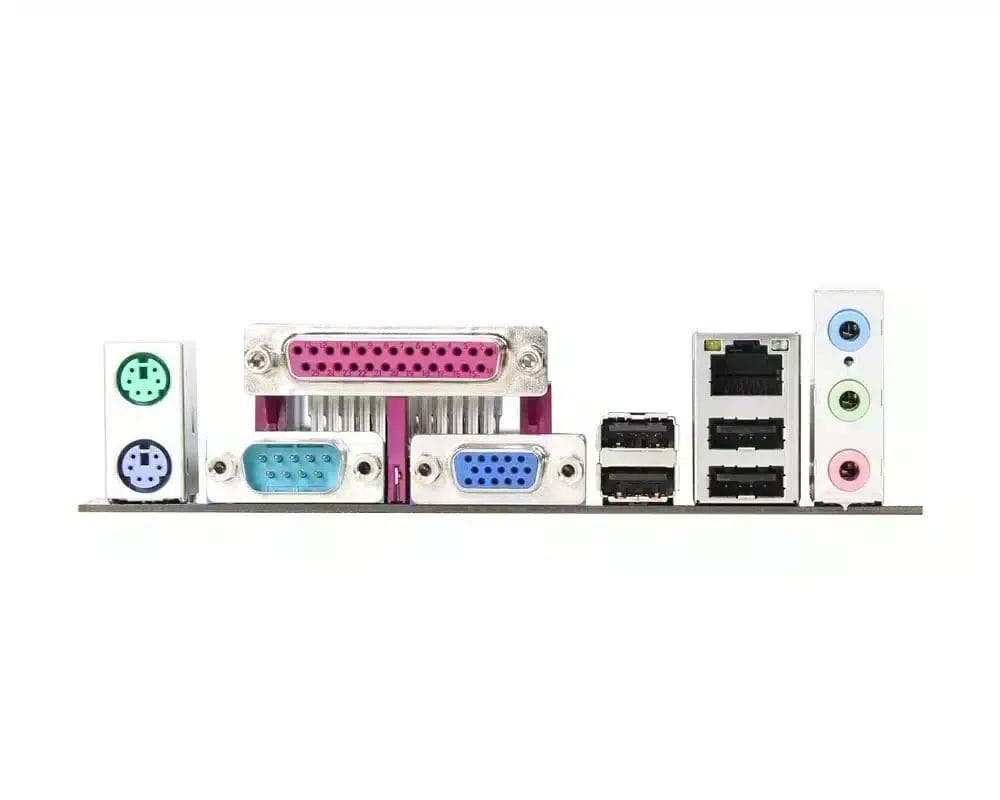

Rear Panel I/O
I/O Panel
– 1 x PS/2 keyboard
– 1 x PS/2 mouse
– 1 x Parallel port
– 1 x Serial port
– 1 x Graphics Card port
– 4 x USB 2.0 ports
– 1 x RJ45 LAN jack
– 1 x 3 in 1 audio jack
Accessories
– I/O Shield
Form Factor
– Micro ATX Form Factor: 24.5 cm x 20.0 cm
OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit / 2000 compliant
Certifications
– FCC, CE
– EuP Ready (EuP ready power supply is required)
