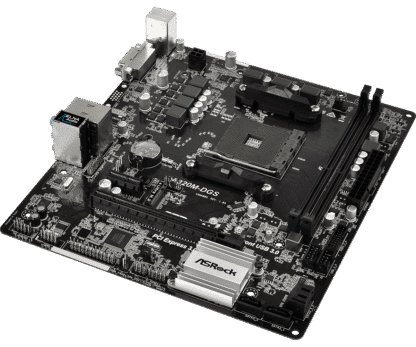

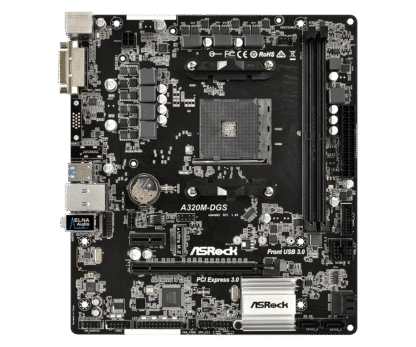

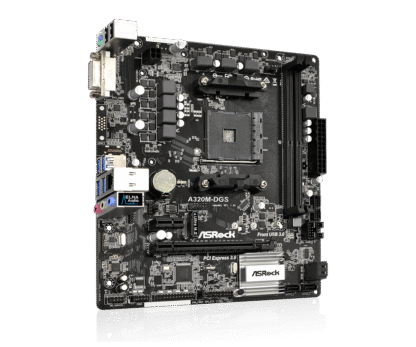

ASRock A320M-DGS

Fast delivery
39,95

Brand: Asrock
Model: A320M-DGS
Socket: AM4
Memory: 2x DDR4 (32GB Max)
Form-Factor: Micro-ATX
EAN: 4717677333206
SKU: 90-MXB590-A0UAYZ

26 in stock

  • Free shipping from €100,-
  • Reliable for more than 10 years!
  • Fast delivery
  • Monthly payments possible!
SKU: ASRock 320M-DGS Categories: , Tags: , ,

Product information

The ASRock A320M-DGS is a Micro-ATX AM4 motherboard based on the AMD Promontory A320 chipset. The board must be combined with DDR4 memory, for which 2 slots are available. In total, the ASRock A320M-DGS has 4 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | Micro-ATX | Connection Socket AM4 | 2x DDR4 | 4x SATA-600 | Ultra M.2 Socket (M2_1) | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 2x USB 2.0 | 4x USB 3.1 (Gen1, 5Gb / s)

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock A320M-DGS
Connection: Socket AM4
Category: motherboards
Brand: ASRock
EAN: 4717677333237
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXB5A0-A0UAYZ, A320M-DGS
Warranty:
6 months

Package Contents:
– Motherboard (ASRock A320M-DGS)
– backplate (blende)
– No manual
– No CD with drivers
– No cables


Unique Feature
ASRock Super Alloy
– High Density Glass Fabric PCB
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & amp; SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & amp; APP Shop

CPU
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– Digi Power design
– 7 Power Phase design
– Supports CPU up to 65W

Chipset
– AMD Promontory A320

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & amp; non-ECC, un-buffered memory *
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+ (OC) / 2933 (OC) / 2667/2400/2133 ECC & amp; non-ECC, un-buffered memory *
AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory *
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+ (OC) / 2933 (OC) / 2667/2400/2133 ECC & amp; non-ECC, un-buffered memory *
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+ (OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory *
AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory **
– Max. capacity of system memory: 32GB **
– 15μ Gold Contact in DIMM Slots ***

* For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support.

A-Series APUs:
A-Series APUs

Ryzen Series CPUs (Matisse):
Ryzen Series CPUs (Matisse)

Ryzen Series CPUs (Pinnacle Ridge):
Ryzen Series CPUs (Pinnacle Ridge)

Ryzen Series CPUs (Picasso):
Ryzen Series CPUs (Picasso)

Ryzen Series CPUs (Summit Ridge):
Ryzen Series CPUs (Summit Ridge)

Ryzen Series CPUs (Raven Ridge):
Ryzen Series CPUs (Raven Ridge)

SR : Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports HDCP 1.4 with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
– Supports Surge Protection
– ELNA Audio Caps


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE




Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7th A-Series APUs / Raven Ridge CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

– 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*

*Supports ASRock U.2 Kit
Supports NVMe SSD as boot disks


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU/ Chassis Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

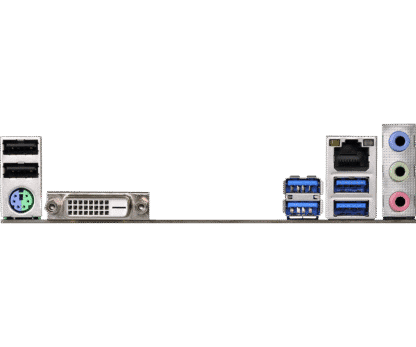

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x DVI-D Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight 1 kg
AMD

AM4

Brand

Asrock

Chipset

AMD Promontory A320

Form Factor

Micro-ATX

Memory Type

DDR4

Number of memory slots

2

Maximum memory size

32 GB

Connectors

DVI-D, USB 2.0, USB 3.1 Gen1

Storage Interfaces

SATA3 6.0 Gb/s, Ultra M.2 Socket

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

AMD AM4, AMD AM4
