Product informatie

ASRock A320M-DGS: Moederbord | Micro-ATX | AMD AM4 | AMD Promontory A320 Chipset | 2x DDR4 | SATA-600 | Ultra M.2 Socket (M2_1) | PCI-e 2.0 x1 |  PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb/s)


Klik hier voor de ondersteunende CPU’s
Klik hier voor de stuurprogramma’s

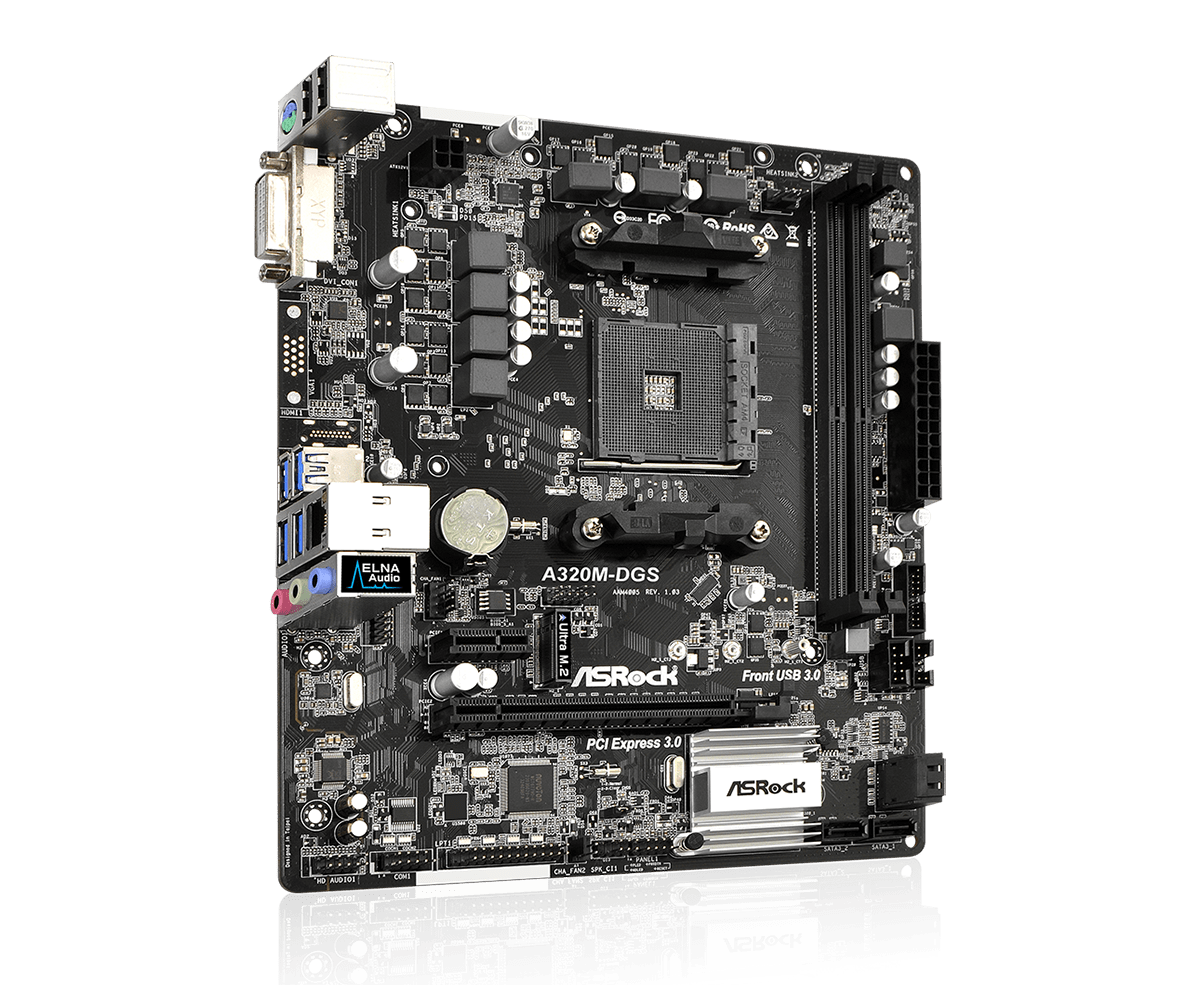

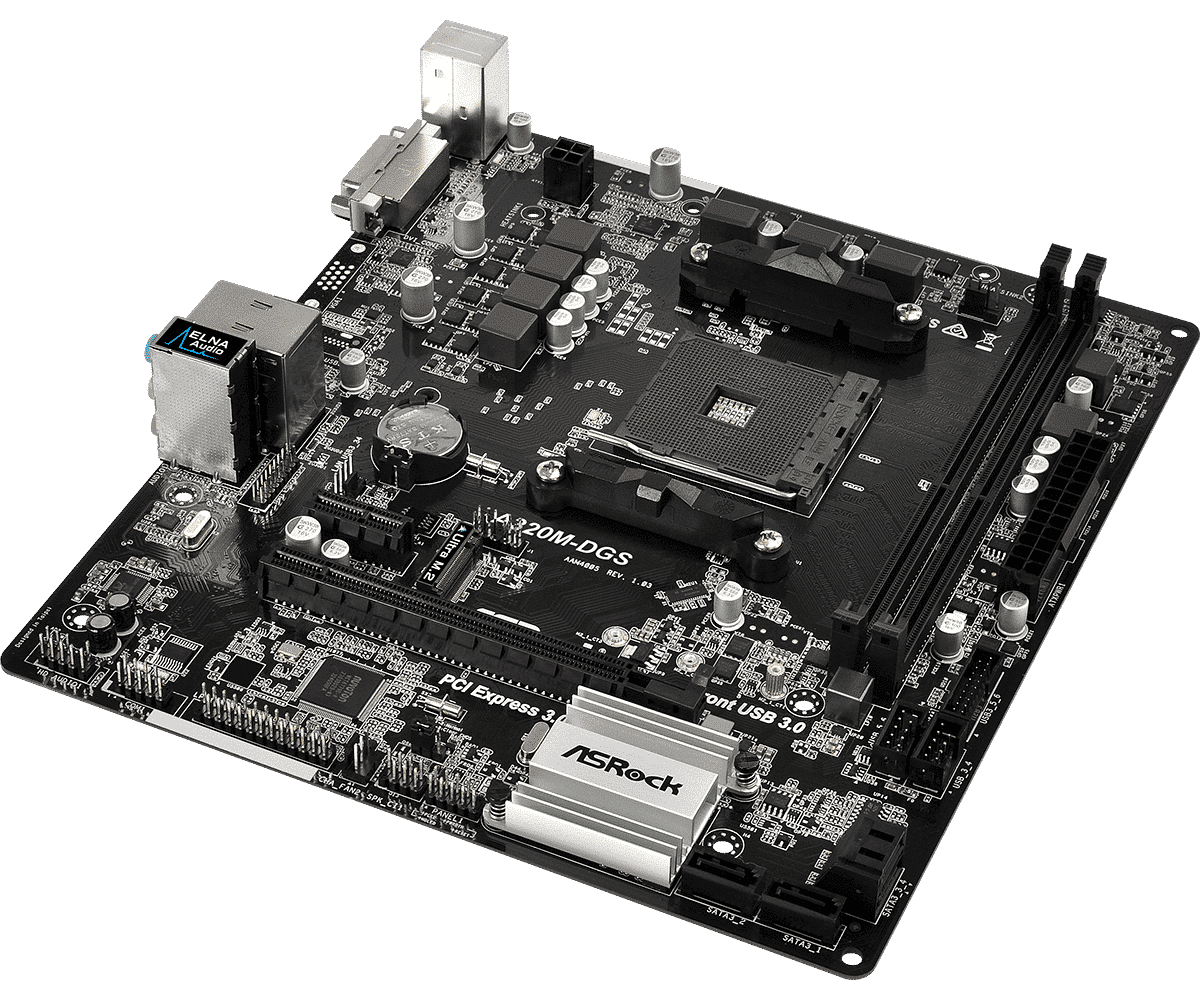

Product: ASRock A320M-DGS
Socket: AMD AM4
Categorie: moederborden
Merk: ASRock
EAN: 4717677333237
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXB5A0-A0UAYZ, A320M-DGS
Garantie:
6 maanden


pakketinhoud:
– Moederbord (ASRock A320M-DGS)
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


Unique Feature
ASRock Super Alloy
– High Density Glass Fabric PCB
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– Digi Power design
– 7 Power Phase design
– Supports CPU up to 65W

Chipset
– AMD Promontory A320

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory**
– Max. capacity of system memory: 32GB**
– 15μ Gold Contact in DIMM Slots***

*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support.

A-Series APUs:
A-Series APUs

Ryzen Series CPUs (Matisse):
Ryzen Series CPUs (Matisse)

Ryzen Series CPUs (Pinnacle Ridge):
Ryzen Series CPUs (Pinnacle Ridge)

Ryzen Series CPUs (Picasso):
Ryzen Series CPUs (Picasso)

Ryzen Series CPUs (Summit Ridge):
Ryzen Series CPUs (Summit Ridge)

Ryzen Series CPUs (Raven Ridge):
Ryzen Series CPUs (Raven Ridge)

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports HDCP 1.4 with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
– Supports Surge Protection
– ELNA Audio Caps


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE




Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7th A-Series APUs / Raven Ridge CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

– 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*

*Supports ASRock U.2 Kit
Supports NVMe SSD as boot disks


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU/ Chassis Fan Connector supports the CPU fan of maximum 1A (12W) fan power.


Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x DVI-D Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht1 kg
AMD

AM4

Merk

Asrock

Chipset

AMD Promontory A320

Formaat

Micro-ATX

Geheugentype

DDR4

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

DVI-D, Ethernet (RJ-45), M.2, USB 2.0, USB 3.1 Gen1

Opslag interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

M.2, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model

A320M-DGS

Lengte

23.1 cm

Breedte

20.6 cm

Pakketinhoud

Moederbord en I/O-Shield

ASRock A320M-DGS socket AM4 moederbord

Snelle levering

  • AMD Promontory A320-chipset
  • Micro-ATX
  • ASRock Super Legering
  • Ondersteunt AMD Socket AM4 A-serie APU’s (Bristol Ridge) en Ryzen-serie CPU’s (Summit Ridge en Raven Ridge)
  • Ondersteunt DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-serie APU)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Grafische uitvoer: DVI-D
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen1 (2 voor, 4 achter)
  • Realtek Gigabit LAN
