ASRock X370M Pro4 AM4 motherboard

Fast delivery
89,95

  • Formaat: Micro- ATX
  • Socket: AM4 (Support Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors)
  • Geheugen: 4 DDR4 DIMM slots, maximaal 64GB
  • USB Poorten: 4 USB 3.1 Gen1, 1 USB 3.2 Gen1 Type C, 2 USB 2.0
  • Grafische Output: HDMI, VGA (D-Sub), DVI-D

1 in stock

Vergelijk
SKU: X370M Pro4 Categories: , , Tags: , , ,

Description

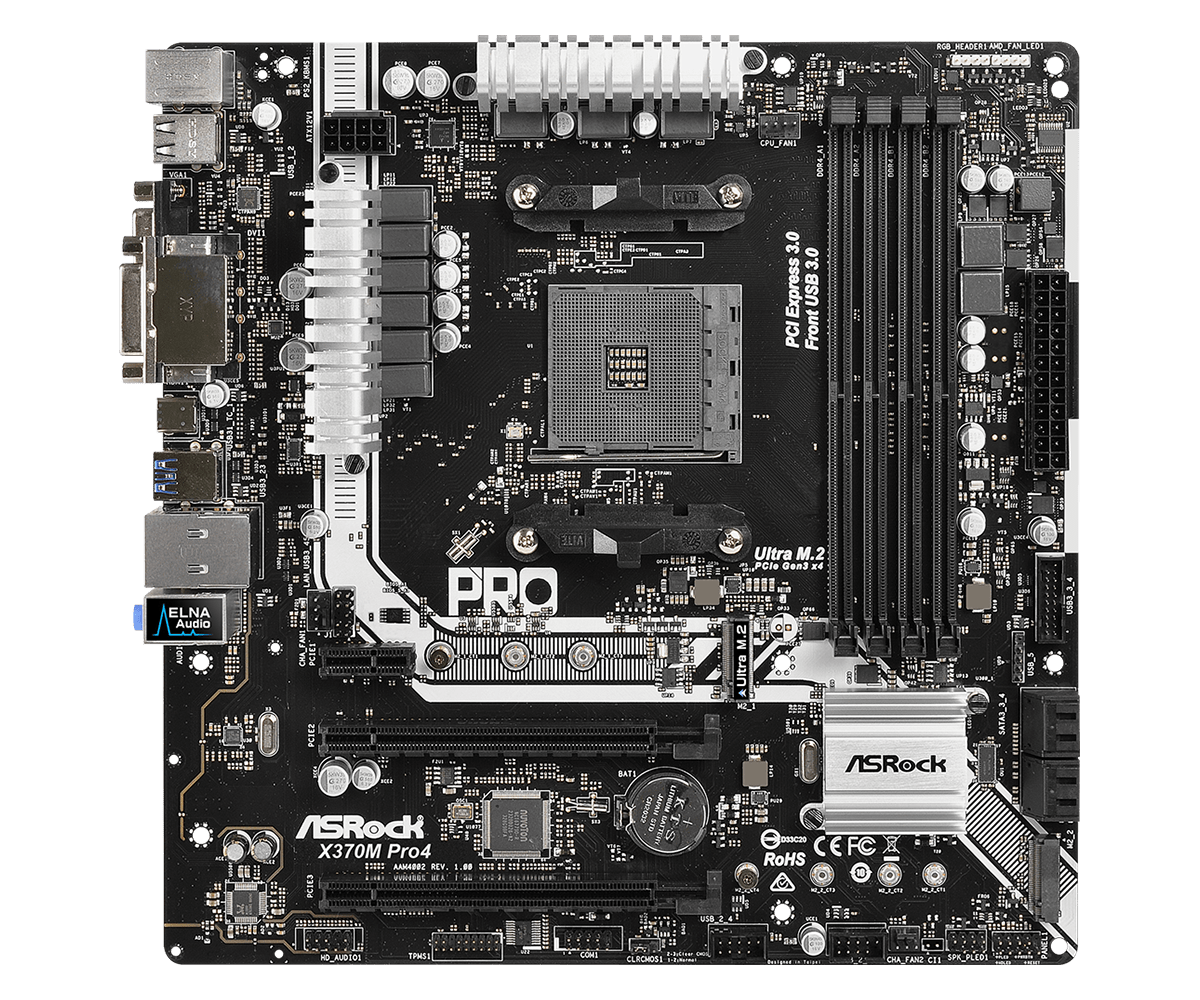

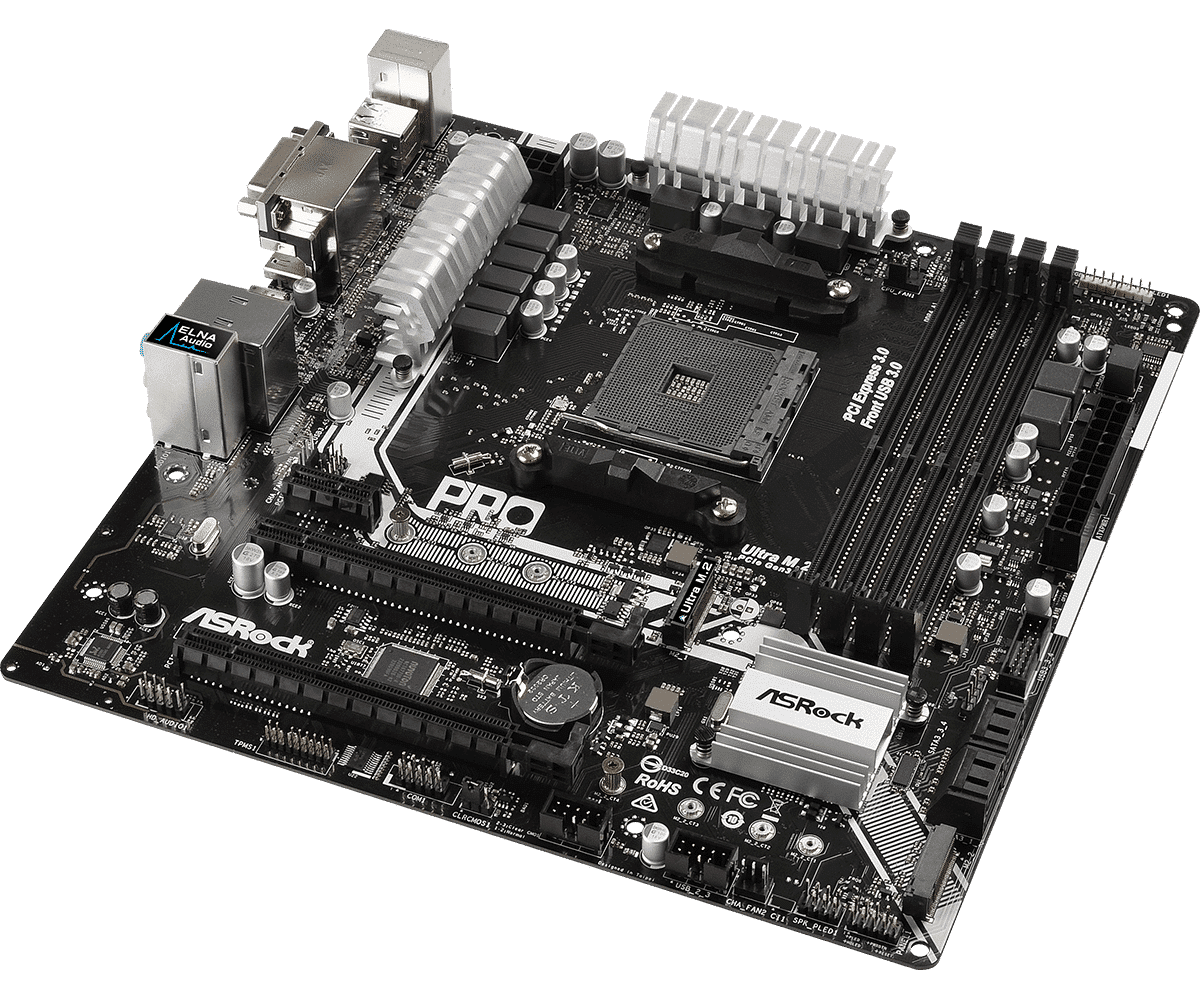

The ASRock X370M Pro4 is a micro-ATX motherboard designed for AMD AM4 processors and based on the X370 chipset.
It supports AMD Ryzen processors from the Ryzen™ 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series with the AM4 socket,
including Ryzen processors with integrated Radeon Graphics.

The motherboard offers support for up to 64 GB of DDR4 memory and features two M.2 slots, one of which supports PCIe Gen3 x4 for high-speed storage.
It also includes multiple display outputs, such as HDMI, DVI-D, and VGA, when used with a processor with integrated graphics.
With Gigabit LAN, 7.1-channel audio, and multiple USB ports, it is an excellent choice for versatile systems.


Product: ASRock X370M Pro4
Socket: AMD AM4
Category: Motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN: 4717677336139
SKU: X370M PRO4
Warranty: 6 months


Package Contents:
– Motherboard (ASRock X370M Pro4)
– I/O Shield (metal backplate)
– No manual
– No driver CD
– No cables


Unique Feature

ASRock Super Alloy
– Premium 42A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU

– Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– Digi Power design
– 9 Power Phase design


Chipset

– AMD Promontory X370


Memory

– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 ECC & non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB**
– 15μ Gold Contact in DIMM Slots

*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for DDR4 UDIMM maximum frequency support.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS

– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment


Graphics

– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio

– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– ELNA Audio Caps


LAN

– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD 7th A-Series APUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD Ryzen series CPUs (Matisse, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

– 1 x PCI Express 2.0 x1 Slot
– Supports AMD Quad CrossFireX™ and CrossFireX™

*Supports NVMe SSD as boot disks


Storage

– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)**
– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module

*M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.

**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector

– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x AMD Fan LED Header**
– 1 x CPU Fan Connector (4-pin)***
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x AMD LED Fan USB Header
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip

**The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

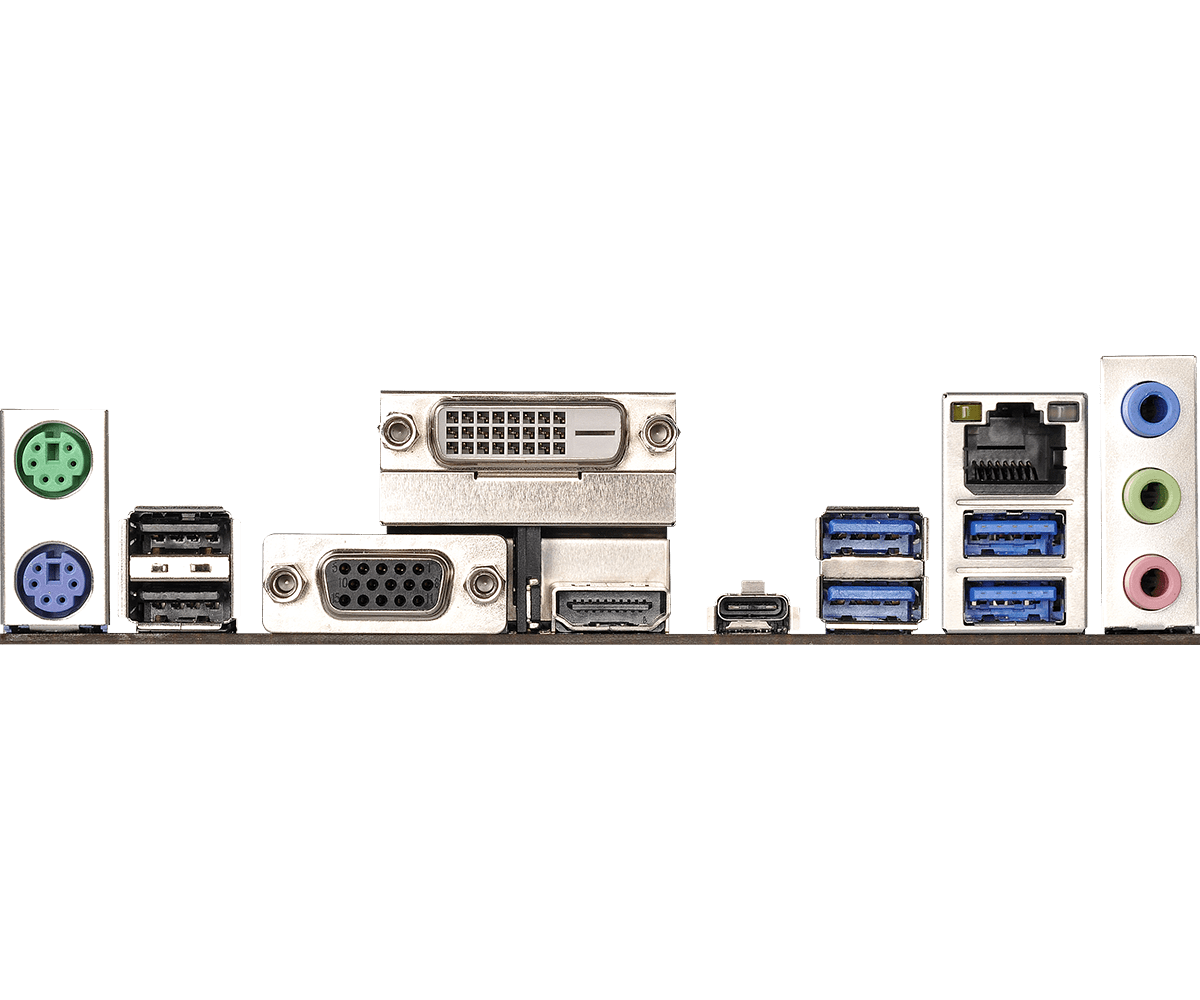

Rear Panel I/O

– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI

Software
– ASRock A-Tuning
– ASRock RGB LED
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories

– I/O Shield


Hardware Monitor

– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor

– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– Solid Capacitor design


OS

– Microsoft Windows® 10 64-bit / 11 64-bit*
*Bristol Ridge and Summit Ridge do not officially support Windows® 11.


Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
Brand

Asrock

Model

ASRock X370M Pro4

Form Factor

Micro-ATX

Socket

CPU Support

Ryzen 2000 Series, Ryzen 3000 G-Series, Ryzen 3000 Series, Ryzen 4000 Series, Ryzen 5000 G-Series, Ryzen 5000 Series

Chipset

AMD Promontory X370

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen1 Type-C

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket

Expansion slots

1 x PCI Express 2.0 x1, 1 x PCI Express 3.0 x16

Storage

2 x M.2, 4 x SATA3 6.0 Gb/s

USB

1 x USB 3.1 Gen1 Type-C, 2 x USB 2.0, 4 x USB 3.1 Gen1

Interfaces

M.2, PCI-e 3.0 x16

Length

24.4 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)
