Description
The ASRock X570 Phantom Gaming X AMD AM4 motherboard is based on the X570 chipset and supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000, and 5000 G-series desktop processors.
The motherboard features 2 dual-channel DDR4 memory slots with a maximum capacity of 128GB RAM. Additionally, the ASRock X570 Phantom Gaming X offers three PCI Express 4.0 x16 slots, two PCI Express 4.0 x1 slots, and three Hyper M.2 slots. The motherboard is also equipped with Wi-Fi, Bluetooth, eight SATA3 6.0 Gb ports, six USB 3.2 Gen1 ports, one USB 3.2 Gen2 Type-A port, and one USB 3.2 Gen2 Type-C port.

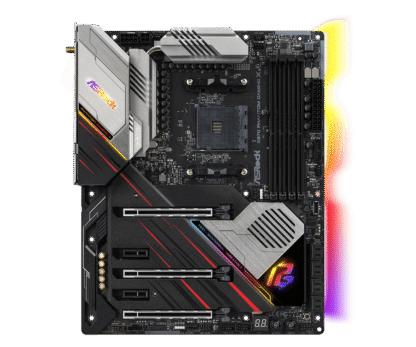

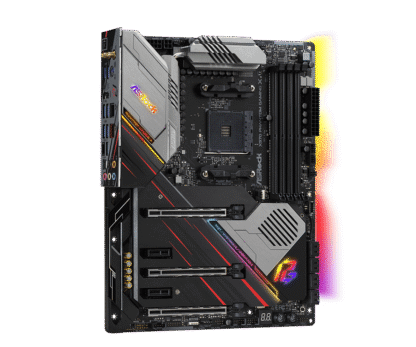

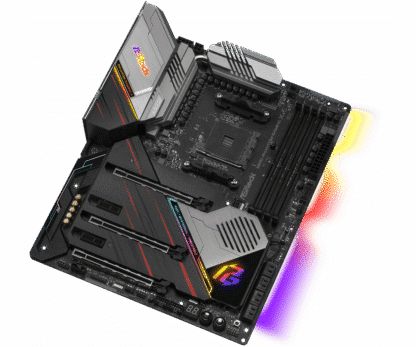

ASRock X570 Phantom Gaming X
Product:ASRock X570 Phantom Gaming X
Socket: AMD AM4
Category: motherboards
Brand: ASRock
EAN:4717677338850
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXBAN0-A0UAYZ, 90-MXBAN3-A0UAYZ, X570 Phantom Gaming X
Warranty: 6 months
Package contents:
– Motherboard (ASRock X570 Phantom Gaming X)
– IO-Shield (Metal backplate)
– Antennas
– No manual
– No driver CD
– No cables
Specifications
Gaming Armor
Power
– Hi-Density Power Connectors (24 pin, 8 pin and 4 pin)
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
– Phantom Gaming 2.5G LAN
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
– Heat Pipe Design
Audio
– Creative Sound Blaster™ Cinema5
Unique Feature
ASRock USB 3.2 Gen2
– ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– 50A Dr.MOS
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Combo Caps (Nichicon 12K Black Caps)
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
ASRock Phantom Gaming 2.5G LAN
Intel® 802.11ax WiFi
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
– Supports AMD AM4 Socket Ryzen™ 2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
– Intersil Digital PWM
– 14 Power Phase design
– Supports ASRock Hyper BCLK Engine II
*Please refer to CPU support list for details.
Chipset
– AMD X570
Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 128GB*
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots* Please refer to below table for AMD non-XMP memory frequency support. For more details, please refer to the QVL on ASRock’s website. Ryzen Series CPUs (Matisse): Ryzen Series CPUs (Pinnacle Ridge): Ryzen Series CPUs (Picasso): SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label
BIOS
– 256Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.* The Max shared memory 16GB requires 32GB system memory installed.
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
– Supports HDR (High Dynamic Range) with HDMI 2.0
– Supports HDCP 2.2 with HDMI 2.0 Port
– Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port
– Supports Microsoft® PlayReady
*Actual support may vary by CPU
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema5
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG):
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE 1 x Intel® Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I211AT):
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Wireless LAN
– Intel® 802.11ax WiFi Module
– Supports IEEE 802.11a/b/g/n/ax
– Supports Dual-Band (2.4/5 GHz)
– Supports WiFi6 802.11ax (2.4Gbps)
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO
Slots
AMD Ryzen series CPUs (Vermeer, Matisse)
– 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*
AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*
AMD Ryzen series CPUs (Picasso)
– 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*
AMD X570 Chipset
– 1 x PCI Express 4.0 x16 Slot (x4 (PCIE5))*
– 1 x PCI Express 4.0 x16 Slot (single at x4 (PCIE5))*
– 2 x PCI Express 4.0 x1 Slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™**
– Supports NVIDIA® Quad SLI™ and SLI™***
– Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards***
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE5 only.
Supports NVMe SSD as boot disks
**3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge).
***NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.
This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge).
Storage
– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
– 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
– 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
*If M2_3 is occupied, PCIE5 slot will be disabled
Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Supports ASRock U.2 Kit
Connector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x AMD Fan LED Header*
– 1 x RGB LED Header**
– 1 x Addressable LED Header***
– 1 x CPU Fan Connector (4-pin)****
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x AMD LED Fan USB Header
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x Clear CMOS Button
*The AMD Fan LED Header is compatible with a regular RGB LED stripe.
The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
**Supports in total up to 12V/3A, 36W LED Strip
***Supports in total up to 5V/3A, 15W LED Strip
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

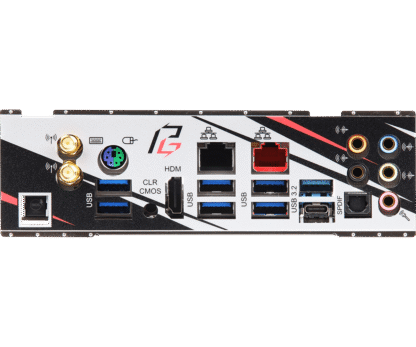

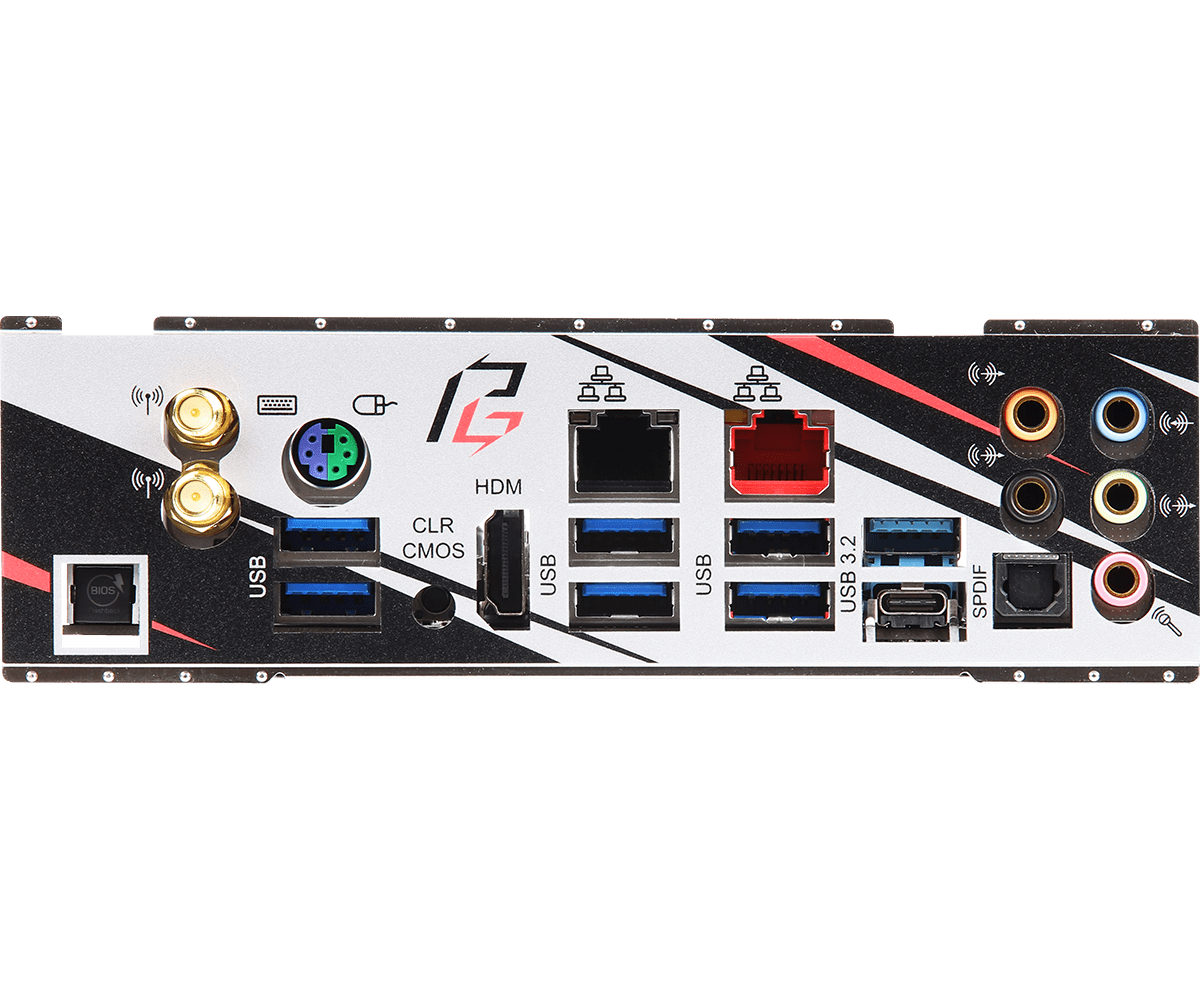

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*Ultra USB Power is supported on USB3_5_6 ports.
ACPI wake-up function is not supported on USB3_5_6ports.
Software and UEFI
Software
– ASRock Phantom Gaming Tuning
– ASRock Phantom Gaming LAN Software
– ASRock Polychrome SYNC
– ASRock Key Master*
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Hardware Monitor
– Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
OS
– Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
