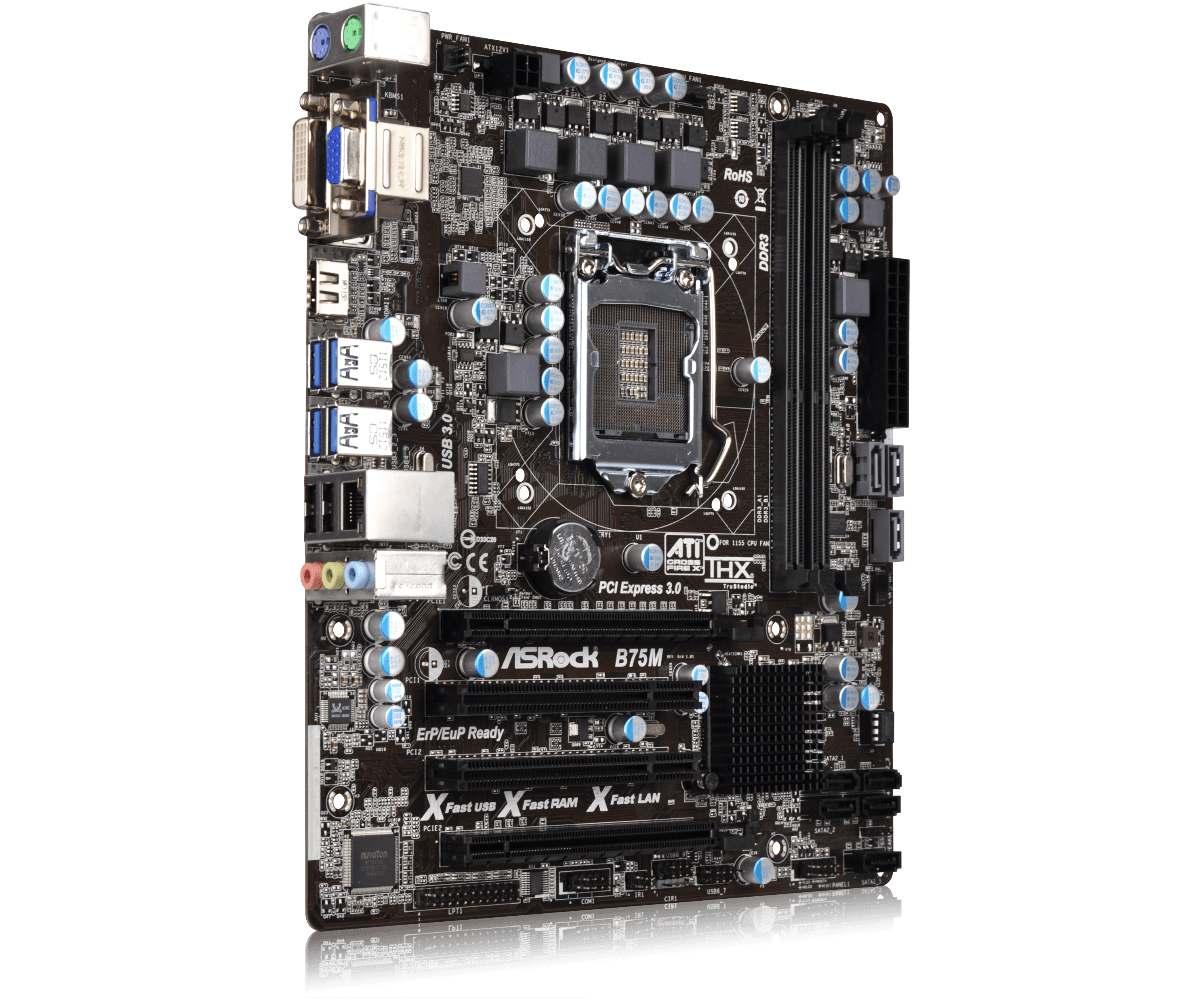

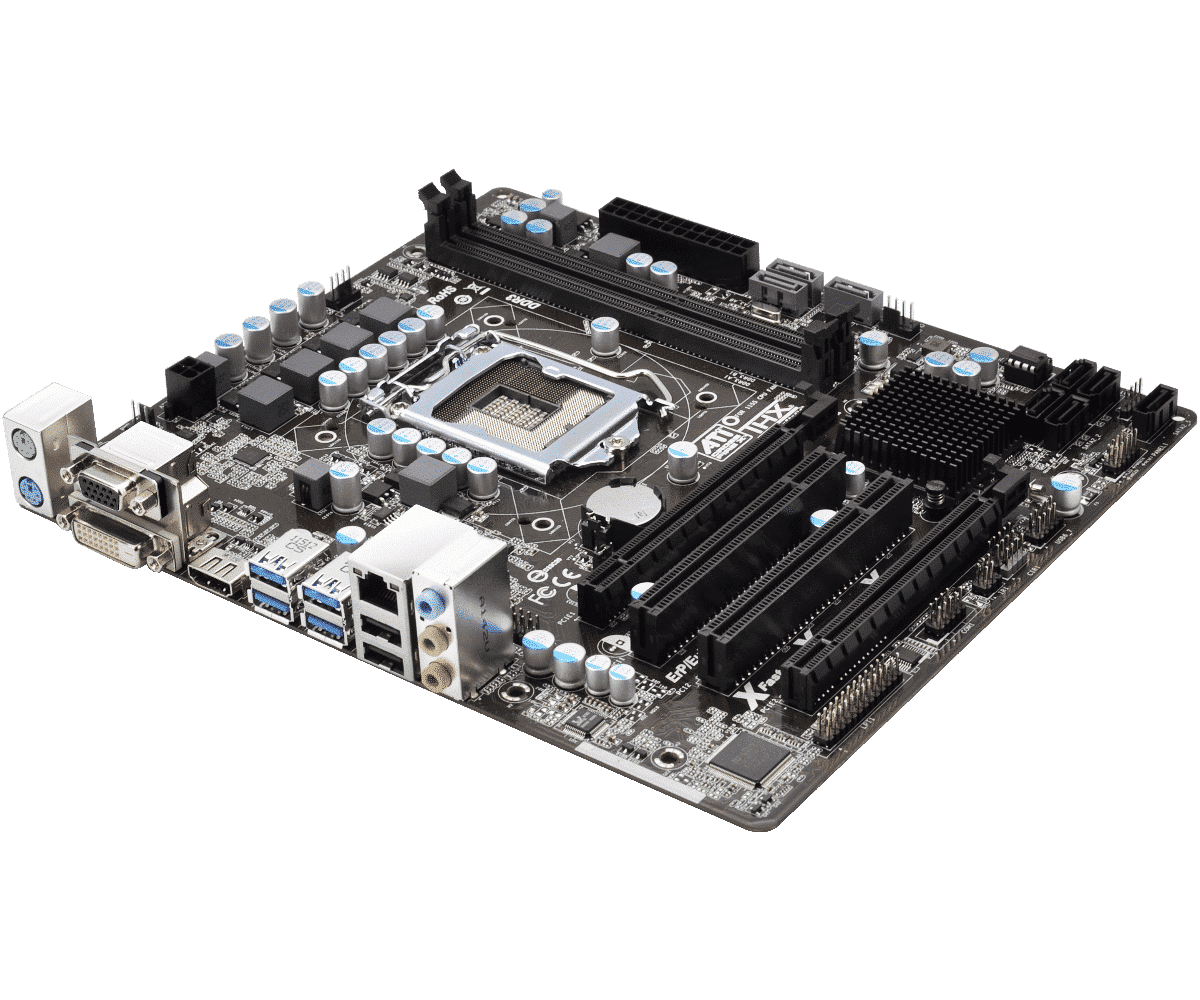

ASRock B75M socket 1155 moederbord

  • 100% All Solid Capacitor Design
  • Supports Dual Channel DDR3 1600
  • 1 PCIe 3.0 x16, Supports AMD Quad CrossFireX™ and CrossFireX™
  • PCIE Gigabit LAN
  • Supports Intel® HD Graphics with Built-in Visuals
  • Graphics Output Options : D-Sub, DVI-D, HDMI
  • Combo Cooler Option (C.C.O.)
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, Dehumidifier, UEFI System Browser
  • Supports Intel® Smart Connect, Intel® Rapid Start, Intel® Small Business Advantage

Uitverkocht

Vergelijk
Artikelnummer: B75M Categorieën: , , Tags: , ,

Beschrijving

Het ASRock B75M moederbord is een Micro-ATX moederbord welke is voorzien van 4 DDR3 geheugensloten. De ASRock B75M Socket 1155 moederbord is een moederbord voorzien van de Intel B75 Chipset.

Moederbord – Socket LGA1155 | Micro-ATX | Intel B75 Chipset | DDR3 up to 16GB | Gigabit Ethernet | SATA-300 | SATA-600 |USB 2.0 | USB 3.1 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D-Sub)

Product: B75M Socket 1155;
Categorie: Intel socket 1155 Moederborden;
Merk: ASrock;
EAN: 0168141510205, 4711140879482, 5053118644470, 5712505104941
SKU: 90-MXGLW0-A0UAYZ, B75 PRO3-M
Staat: Gebruikt – Bios bijgewerkt naar de laatste versie
Garantie:
6 Maanden

Processoren die ondersteund worden door de ASRock B75M
Drivers voor de Intel ASRock B75M


CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
– 3 + 1 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Hyper-Threading Technology


Chipset
– Intel® B75
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU

*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.


Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.

***In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
– Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU
– Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP function with DVI and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.

***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
– 2 x PCI slots
– Supports AMD Quad CrossFireX™ and CrossFireX™

*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.


SATA3
– 1 x SATA3 6.0 Gb/s connector by Intel® B75, supports NCQ, AHCI and Hot Plug functions
– 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions


USB 3.0
– 4 x Rear USB 3.1 Gen1 ports, support USB 1.0/2.0/3.0 up to 5Gb/s


Connector
– 5 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
– 3 x SATA3 6.0 Gb/s connectors
– 1 x IR header
– 1 x CIR header
– 1 x Print port header
– 1 x COM port header
– 1 x CPU Fan connectors (1 x 4-pin)
– 1 x Chassis Fan connectors (1 x 4-pin)
– 1 x Power Fan connector (3-pin)
– 24 pin ATX power connector
– 4 pin 12V power connector
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)

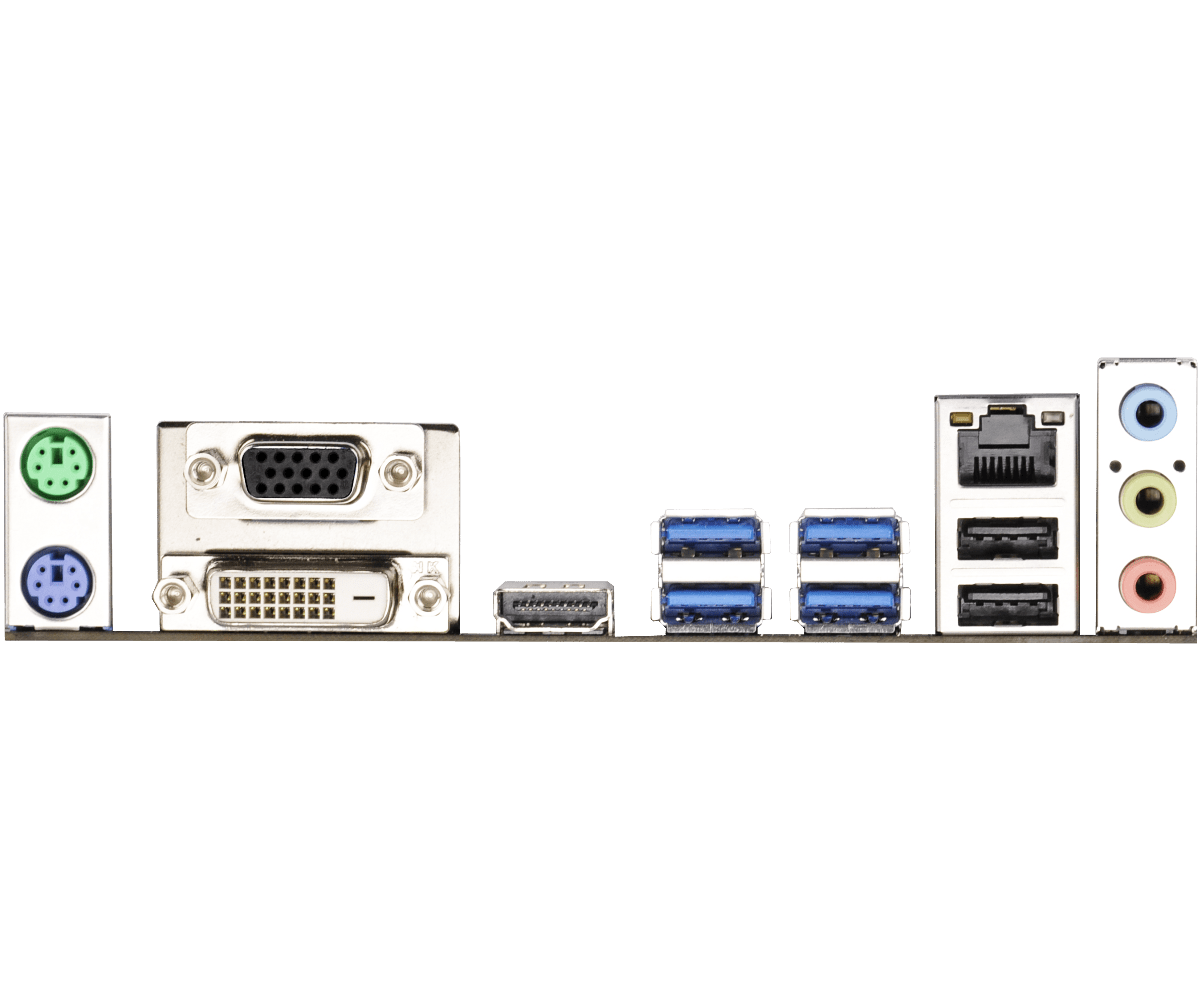

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x Ready-to-Use USB 2.0 Ports
– 4 x Ready-to-Use USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone


Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock Dehumidifier Function
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Combo Cooler Option (C.C.O.)
– Good Night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Micro ATX Form Factor: 9.6-in x 8.4-in, 24.4 cm x 21.3 cm
– All Solid Capacitor design


OS
– Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Extra informatie

Gewicht 1 kg
Intel

Socket 1155

Merk

Asrock

Chipset

Intel B75

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Opslag interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

B75M

Lengte

24.4 cm

Breedte

21.3 cm

Pakketinhoud

Moederbord en I/O-Shield
