ASRock B85M Pro4 socket 1150 moederbord

  • A-Style : Home Cloud
  • Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
  • Supports Intel® Small Business Advantage 2.0
  • All Solid Capacitor design, Digi Power
  • Supports Dual Channel DDR3/DDR3L 1600
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16
  • Supports AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options : DVI-D, D-Sub, HDMI
  • Intel® Gigabit LAN
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  • 4 SATA3, 2 SATA2, 4 USB 3.1 Gen1, 8 USB 2.0
  • Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key

Uitverkocht

Vergelijk
Artikelnummer: B85M-Pro4 Categorieën: , , Tags: , , , ,

Beschrijving

De ASRock B85M Pro4 is een Micro-ATX Socket 1150 moederbord gebaseerd op de Intel B85 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 4 slots beschikbaar zijn.


Kenmerken: Moederbord | Micro-ATX | Socket 1150 | 4x DDR3 (max 32GB) | SATA-600 | SATA-300 | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1) | DVI-D| VGA (D-Sub) | HDMI


Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers


Product: ASRock B85M Pro4
Socket: Socket 1150
Categorie: moederborden
Merk: ASRock
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN:
4717677321074
SKU: 90-MXGQ20-A0UAYZ, 90-MXGQ20-AOUAYZ, B85M Pro4
Garantie:
6 maanden


Inhoud pakket:
– Moederbord (ASRock B85M Pro4)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


A-Style
– Home Cloud


CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power Design
– 4 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® B85
– Supports Intel® Small Business Advantage 2.0


Memory
– Dual Channel DDR3/DDR3L memory technology
– 4 x DDR3/DDR3L DIMM slots
– Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP function with DVI-D and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I217V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
– 2 x PCI slots
– Supports AMD Quad CrossFireX™ and CrossFireX™


Storage
– 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x IR header
– 1 x Print Port header
– 1 x COM Port header
– 1 x Chassis Intrusion header
– 1 x TPM header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 1 x 24 pin ATX power connector
– 1 x 8 pin 12V power connector
– 1 x Front panel audio connector
– 1 x SPDIF Out connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

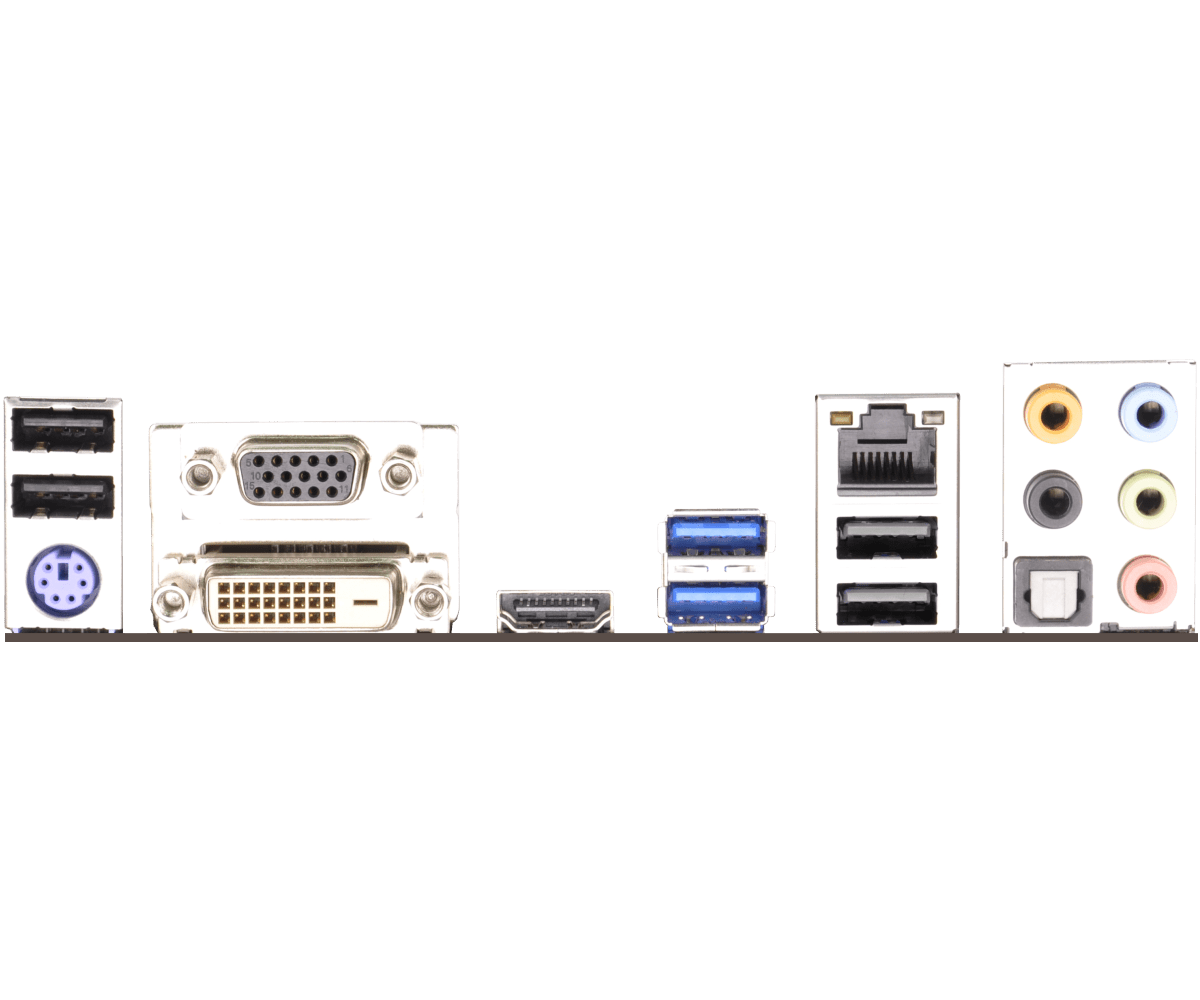

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 4 x USB 2.0 Ports
– 2 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock On/Off Play Technology
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Accessories
– Quick Installation Guide, Support CD, I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Extra informatie

Gewicht 1 kg
Intel

Socket 1150

Merk

Asrock

Formaat

Micro-ATX

Chipset

Intel B85

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Opslag interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model

B85M Pro4

Pakketinhoud

Moederbord en I/O-Shield
