Product informatie

ASRock Fatal1ty X370 Gaming K4: Moederbord | ATX | AMD AM4 | 4x DDR4 | SATA-600 | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16  | USB 3.1 (Gen1, 5Gb / s) | HDMI

Klik hier voor de ondersteunende CPU’s
Klik hier voor de stuurprogramma’s

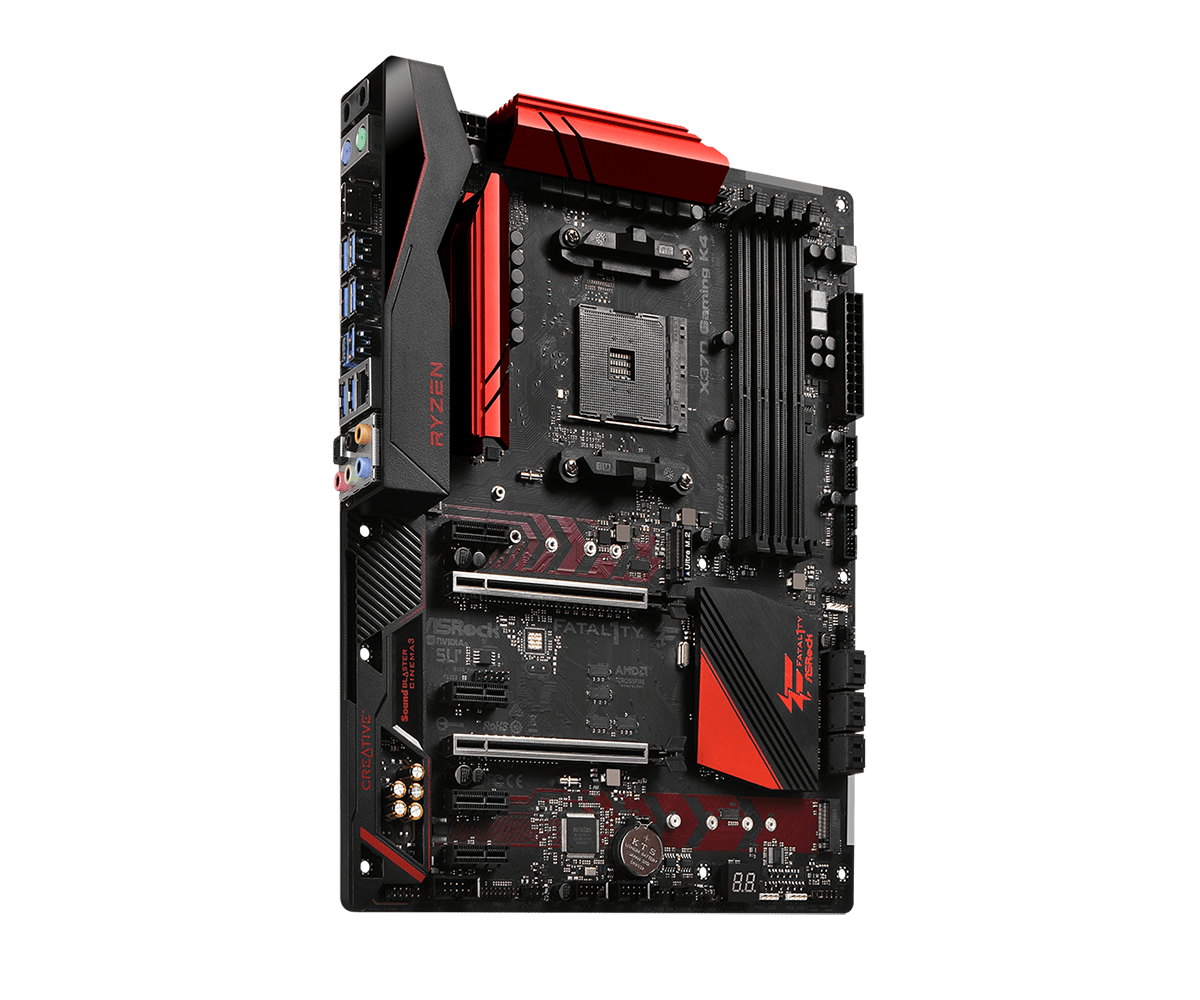

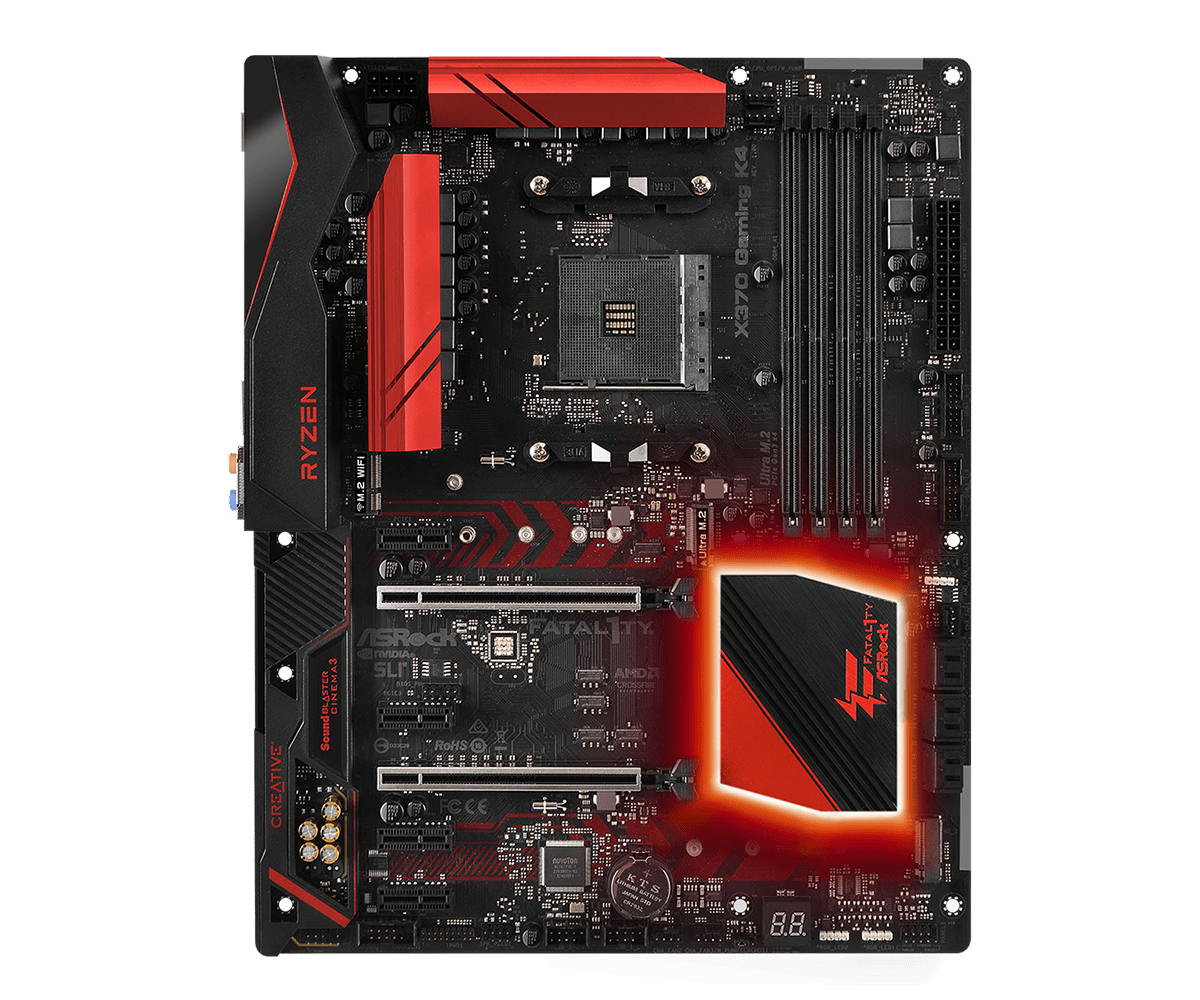

Product: ASRock Fatal1ty X370 Gaming K4
Socket: AMD AM4
Categorie: moederborden
Merk: ASRock
EAN: 4717677333138
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXB550-A0UAYZ, X370 GAMING K4
Garantie:
6 maanden

pakketinhoud:
– Moederbord (ASRock Fatal1ty X370 Gaming K4)
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


Gaming Armor
Power
– Hi-Density Power Connectors (24 pin and 8 pin)
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Internet
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
Audio
– Creative Sound Blaster™ Cinema 3


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)


ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 45A Power Choke
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– IR Digital PWM
– 12 Power Phase design


Chipset
– AMD Promontory X370


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 2933+(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 2933+(OC)2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 ECC & non-ECC, un-buffered memory*
– Max. capacity of system memory: 64GB**
– 15μ Gold Contact in DIMM Slots

*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for DDR4 UDIMM maximum frequency support.


A-Series APUs:
Ryzen Series CPUs (Matisse):

Ryzen Series CPUs (Matisse)
Ryzen Series CPUs (Pinnacle Ridge):

Ryzen Series CPUs (Pinnacle Ridge)
Ryzen Series CPUs (Picasso):

Ryzen Series CPUs (Summit Ridge)
Ryzen Series CPUs (Summit Ridge):

Ryzen Series CPUs (Summit Ridge)
Ryzen Series CPUs (Raven Ridge):

Ryzen Series CPUs (Raven Ridge)
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment


Graphics
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with HDMI Port
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– Supports Creative Sound Blaster™ Cinema 3


LAN
– Gigabit LAN 10/100/1000 Mb/s
– GigaLAN Intel® I211AT
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*
AMD 7th A-Series APUs
– 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE2))*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE2))*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (single at x4 (PCIE2))*

– 4 x PCI Express 2.0 x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™**
– Supports NVIDIA® Quad SLI™ and SLI™**
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

*Supports NVMe SSD as boot disks

**This feature is only supported with Ryzen Series CPUs (Matisse, Summit Ridge and Pinnacle Ridge).


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*
– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)*

*Supports ASRock U.2 Kit
Supports NVMe SSD as boot disks


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x AMD Fan LED Header*
– 2 x RGB LED Headers*
– 1 x CPU Fan Connector (4-pin)**
– 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)****
– 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x AMD LED Fan USB Header
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
– 1 x Dr. Debug with LED

*Supports in total up to 12V/3A, 36W LED Strip
The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.


Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)*
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included


Software and UEFI
Software
– ASRock F-Stream
– ASRock RGB LED
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN

UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP


Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm


OS
– Microsoft® Windows® 10 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
AMD

AM4

Merk

Asrock

Chipset

AMD Promontory X370

Formaat

ATX

Geheugentype

DDR4

Aantal geheugenslots

4

Maximale geheugengrootte

64 GB

Aansluitingen

Ethernet (RJ-45), HDMI, USB 3.1 Gen1, USB 3.1 Gen2 Type-A, USB 3.1 Gen2 Type-C

Opslag interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

M.2, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

X370-Gaming-K4

Geschikt voor

Gaming

Bijzonderheden

Onboard Audio

Lengte

30.5 cm

Breedte

24.4 cm

Pakketinhoud

Moederbord en I/O-Shield

ASRock Fatal1ty X370 Gaming K4 socket AM4 moederbord

1 op voorraad

Snelle levering
69,95

  • AMD X370-chipset
  • ATX
  • ASRock Super Legering
  • Ondersteunt AMD Socket AM4 A-serie APU’s (Bristol Ridge) en Ryzen-serie CPU’s (Summit Ridge en Raven Ridge)
  • Ondersteunt DDR4 2933+ (OC) (Ryzen CPU) / 2400 (A-serie APU)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1, 1 M.2 (sleutel E)
  • NVIDIA® Quad SLI™, AMD Quad CrossFireX™
  • Grafische uitvoer: HDMI
  • 7.1 CH HD-audio (Realtek ALC1220 Audio Codec), ondersteunt Creative Sound Blaster™ Cinema 3
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3)
  • 2 USB 3.1 Gen2 (1 Type-A, 1 Type-C), 10 USB 3.1 Gen1 (4 voor, 5 achter, 1 Fatal1ty-muispoort)
  • Intel® Gigabit-LAN
