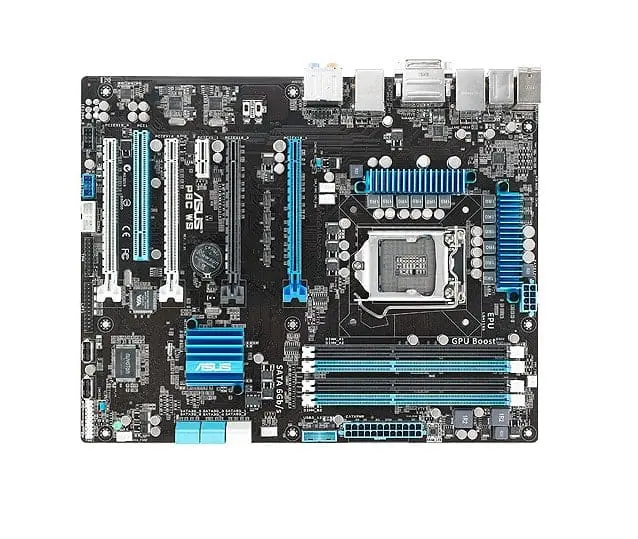

De Asus P8C WS is een ATX Socket 1155 moederbord gebaseerd op de Intel C216 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 4 slots beschikbaar zijn. In totaal heeft de Asus P8C WS 6 Seriële ATA-aansluitingen voor harde schijven en SSD’s.
Kenmerken: Moederbord | ATX | Socket S1155 | 4x DDR3 | 4x SATA-300 | 2x SATA-600 | PCI | PCI-e 2.0 x1 | 2x PCI-e 2.0 x16 | 2x PCI-e 3.0 x16 | 2x LAN | DVI-I
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: Asus P8C WS
Socket: Socket 1155
Categorie: moederborden
Merk: Asus
Staat: Used – BIOS bijgewerkt naar de nieuwste versie
EAN:0610839186228, 4719543186220
SKU: 90-MSVE30-G0EAY0YZ, 90-MSVE30G0EAY0YZ, 90MSVE30-G0EAY0YZ, 90MSVE30G0EAY0YZ, P8C WS
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (Asus P8C WS)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Intel® Socket 1155 for Intel® E3-1200/12×5 v2 processors
Supports Intel® 32 nm CPU
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Chipset
Intel® C216
Memory
4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
2 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1
1 x PCI
Storage
2 x SATA 6Gb/s port(s), gray,
4 x SATA 3Gb/s port(s), blue,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
LAN
Intel® 82574L, 2 x Gigabit LAN Controller(s)
Support Teaming Technology
Audio
Realtek® ALC892 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
– Blu-ray audio layer Content Protection
– Optical S/PDIF out port(s) at back panel
USB Ports
Intel® C216 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® C216 chipset :
10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board)
IEEE 1394
VIA® 6308S controller
2 x IEEE 1394a port(s)
Operating System Support
Windows® 8
Windows® 7

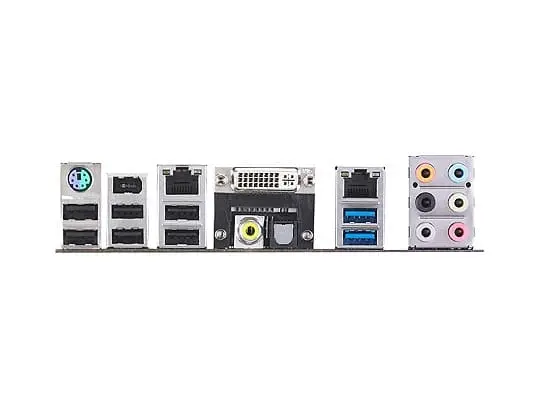

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-I
1 x IEEE 1394a
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
6 x USB 2.0
1 x Coaxial S/PDIF out
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x Vertical USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel connector(s) (1 x 20 -pin)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! button(s)
Accessories
I/O Shield
Form Factor
ATX Form Factor
BIOS
64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
Gewicht | 1 kg |
---|---|
Intel | Socket 1155 |
Merk | Asus |
Chipset | Intel C216 |
Formaat | ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 4 |
Maximale geheugengrootte | 32 GB |
Aansluitingen | 2x RJ-45 LAN, IEEE 1394 Port, USB 2.0, USB 3.1 Gen1, USB 3.2 (Gen1, 5Gb/s) |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI, PCI-e 2.0 x1, PCI-e 3.0 x16 |
Socket |
Snelle levering
Product: Asus P8C WS Socket 1155;
Merk: Asus;
EAN: 4719543186220
SKU: 90-MSVE30-G0EAY0YZ
Staat: Gebruikt
Garantie: 6 Maanden
