Kenmerken: Moederbord | Micro-ATX | Socket 1155 | 2x DDR3 | SATA-300 | SATA-600 | PCI-e 2.0 x16 | PCI-e 2.0 x1 | PCI | USB 2.0 | USB 3.2 | DVI-D | HDMI | VGA (D-Sub)

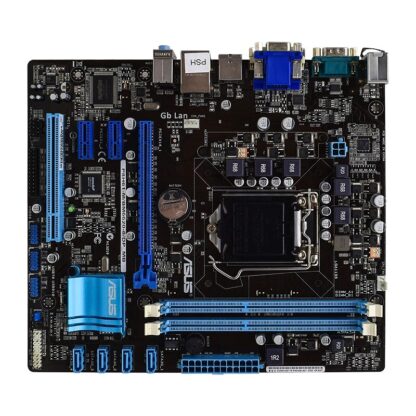

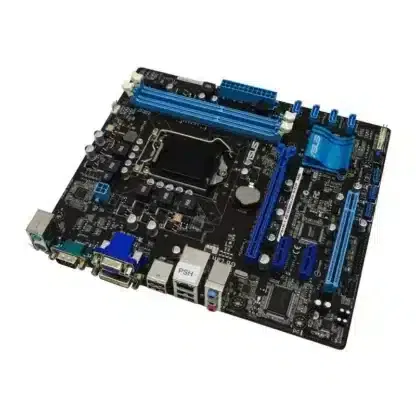

Product: Asus P8H61-M/BM6620-8/DP_MB
Socket: Socket 1155
Categorie: moederborden
Merk: ASus
Staat: Gebruikt
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (Asus P8H61-M/BM6620-8/DP_MB)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
Processor manufacturer: Intel
Processor socket: LGA 1155 (Socket H2)
Compatible processor series : Intel® Core™ i3, Intel Core i5, Intel, Core i7
Chipset
– Intel® H61
Memory
Supported memory types: DDR3-SDRAM
Number of memory slots: 2
Memory channels: Dual-channel
Non-ECC: Ja
Supported memory clock speeds: 1066,1333 MHz
Memory, maximum: 16 GB
BIOS
BIOS type: EFI
BIOS memory size: 32 Mbit
ACPI version: 2.0a
Graphics
Parallel processing technology support: Not supported
LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Slots
2x PCI Express x1 slots
1x PCI Express x16 slots
1x PCI
Storage
Supported storage drive interfaces: SATA II
Connector
6x USB 2.0 connectors
4x Number of SATA II connectors
S/PDIF out connector: Ja
Front panel audio connector: Ja
ATX Power connector (24-pin): Ja
CPU fan connector: Ja
1x Number of chassis fan connectors
1x Number of COM connectors

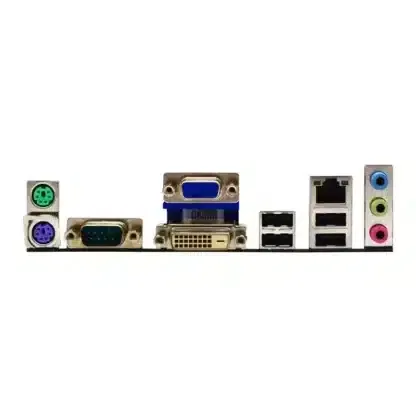

Rear Panel I/O
4x USB 2.0
1x Ethernet LAN (RJ-45)
2x PS/2 ports
1x VGA (D-Sub) ports
1x DVI-D Ports
1x Headphone outputs
Microphone in: Ja
Accessories
– I/O Shield
Form Factor
– Micro-ATX Form Factor
OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
Intel | Socket 1155 |
---|---|
Merk | Asus |
Chipset | Intel H61 |
Formaat | Micro-ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 2 |
Maximale geheugengrootte | 16 GB |
Aansluitingen | D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s) |
Opslag interfaces | Serial ATA-300 |
Interfaces | PCI, PCI-e 2.0 x1, PCI-e 2.0 x16 |
Socket | |
Model | Asus P8H61-M/BM6620-8/DP_MB |
Breedte | 21.8 cm |
Lengte | 24.4 cm |
Snelle levering
Merk: Asus
Model: Asus P8H61-M/BM6620-8/DP_MB
Socket: LGA1155
Chipset: Intel H61
Geheugen: 2x DDR3 (16GB Max)
Form-Factor: Micro-ATX
