Asus P9X79: Moederbord | ATX | Socket 2011 | 8x DDR3 (max 64GB) | eSata | USB2.0 | USB3.2 | Sata-300 | Sata-600 |
Klik hier voor de processoren die worden ondersteund.
Klik hier voor de drivers
Product: Asus P9X79
Socket: Socket 2011
Categorie: moederborden
Merk: Asus
Staat: Used
EAN: 0200002332264, 0610839184736, 4719543184738, 5053106832032, 5053460560787, 5053973542690
SKU: 90-MIBHE0-G0AAY00Z, 90-MIBHE0-G0EAY00Z, P9X79
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (Asus P9X79)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
2nd Generation Intel® Core™ i7 Processor family for the LGA
2011 Socket
Supports Intel® Turbo Boost Technology 2.0
Chipset
Intel® X79 Express Chipset
Memory
8 x DIMM, max. 64GB, DDR3 2400(O.C.) / 2133(O.C.) /
1866/ 1600 / 1333 / 1066 MHz, non-ECC, un-buffered
memory
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
** Hyper DIMM support is subject to the physical characteristics
of individual CPUs.
** Refer to www.asus.com for the Memory QVL (Qualified
Vendors Lists).
Expansion slots
2 x PCI Express 3.0 x16 slots (Dual at x16/ x16 mode, Triple at
x16/ x16/ x8)
1 x PCI Express 3.0 x16 slot (PCIe x16_3 at x8 mode)
2 x PCI Express 2.0 x1 slots
1 x PCI slot
* This motherboard is ready to support PCIe 3.0 SPEC. Functions
will be available when using PCIe 3.0-compliant devices. Please
refer to www.asus.com for updated details.
Multi-GPU support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD® Quad-GPU CrossFireX™ Technology
Storage
Intel® X79 Express Chipset
– 2 x SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support
– 4 x SATA 3 Gb/s ports with RAID 0, 1, 5 and 10 support
ASMedia® 1061 SATA controller
– 1 x Power eSATA 6Gb/s port
– 1 x eSATA 6Gb/s ports
LAN
Intel® 82579V Gigabit LAN Controller
USB
2 x ASMedia® USB 3.0 controllers
– 2 x USB 3.0/2.0 ports at mid-board for front panel support
– 2 x USB 3.0/2.0 ports at back panel (Blue)
Intel® X79 Express Chipset
– 14 x USB 2.0/1.1 ports
(6 ports at mid-board; 8 ports at back panel)
IEEE 1394
VIA® VT6315N controller supports 1 x IEEE 1394a port (back
panel)
Audio
Realtek® ALC892 8-channel High Definition Audio CODEC
– Support 192khz / 24bit BD Lossless Sound
– BD Audio Layer Content Protection
– Supports Jack-Detection, Multi-Streaming and
Front Panel Jack-Retasking
– Optical S/PDIF Out port at back I/O
ASUS exclusive
overclocking features
Precision Tweaker 2:
– vCore: Adjustable CPU voltage at 0.005V increment
– vTTCPU: Adjustable I/O voltage at 0.00625V increment
– vCCSA: 255-step system agent voltage control
– vDRAM Bus: 160-step Memory voltage control
– vPCH: 96-step Chipset voltage control
– vCPU_PLL: 48-step CPU & PCH PLL voltage control
SFS (Stepless Frequency Selection):
– BCLK/PEG frequency tuning from 80MHz up to 300MHz at
0.1MHz increment
Overclocking Protection:
– ASUS C.P.R.(CPU Parameter Recall)
ASUS Unique Features
ASUS Dual Intelligent Processors 3
with New DIGI+ Power Control:
CPU Power
– Industry leading Digital 6+2 Phase Power Design
– CPU Power Utility
DRAM Power
– Industry leading Digital 2+2 Phase Power Design
– DRAM Power Utility
ASUS TPU
– Auto Tuning, TurboV
ASUS EPU
– EPU Utility
ASUS Exclusive Features:
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user
interface
– USB 3.0 Boost
– MemOK!
– Remote GO!
– AI Suite II
– Ai Charger
ASUS Quiet Thermal Solution:
– ASUS Fanless Design: Stylish Heat-sink solution
– ASUS Fan Xpert+
ASUS EZ DIY:
– USB BIOS Flashback with USB BIOS Flashback Wizard for
EZ BIOS download scheduling
– ASUS O.C. Profile
– ASUS MyLogo 2
– Percision Tweaker 2
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– DirectKey
– Multi-language BIOS
ASUS Q-Design:
– ASUS Q-Shield
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Connector

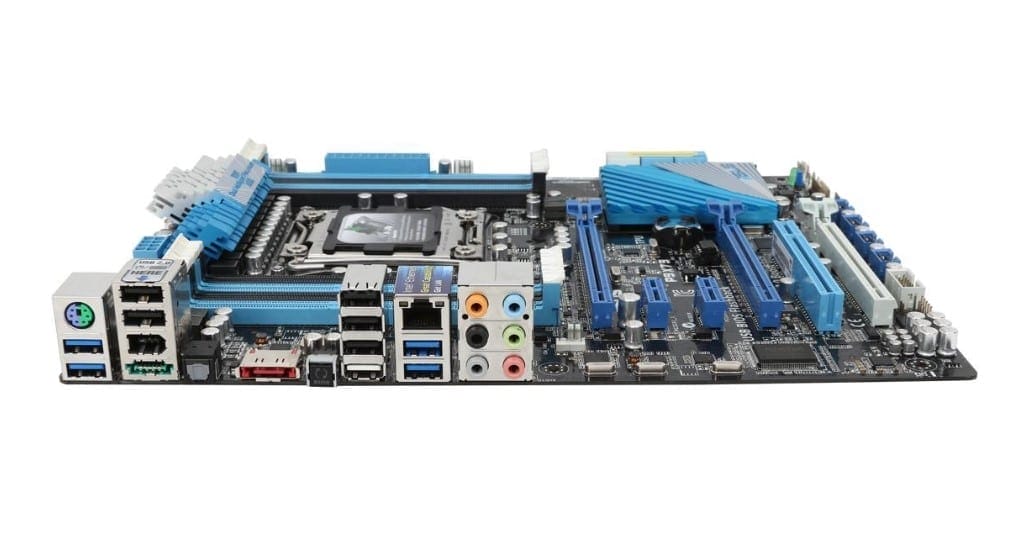

Back panel I/O ports
1 x PS/2 Keyboard/Mouse combo port
4 x USB 3.0/2.0 ports (blue)
6 x USB 2.0/1.1 ports (white port can be switched to USB BIOS
Flashback)
1 x IEEE1394a port
1 x USB BIOS Flashback button
1 x LAN (RJ-45) port
1 x Optical S/PDIF Out port
1 x eSATA 6Gb/s port (red)
1 x Power eSATA 6Gb/s port (green)
8-channel Audio I/O
Internal I/O connectors
4 x USB 2.0/1.1 connectors support additional 8 USB ports
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU Fan connector (4-pin)
1 x CPU Optional Fan connector (4-pin)
4 x Chassis Fan connectors (4-pin)
1 x Front panel audio connector (AAFP)
1 x COM connector
1 x TPM connector
1 x S/PDIF Out header
1 x Clear CMOS jumper
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel (Q-Connector)
1 x MemOK! button
1 x EPU switch
1 x TPU switch
BIOS features
64 Mb Flash ROM, UEFI BIOS, PnP, DMI 2.0, WfM 2.0,
SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form factor
ATX form factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm
Gewicht | 1 kg |
---|---|
Intel | Socket 2011 |
Merk | Asus |
Formaat | ATX |
Chipset | Intel X79 |
Geheugentype | DDR3 |
Aantal geheugenslots | 8 |
Maximale geheugengrootte | 64 GB |
Aansluitingen | eSATA, Ethernet (RJ-45), IEEE 1394 Port, PS/2, USB 2.0, USB 3.2 (Gen1, 5Gb/s) type-A |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI, PCI-e 3.0 x1, PCI-e 3.0 x16 |
Socket | |
Model | P9X79 |
Lengte | 30.5 cm |
Breedte | 24.4 cm |
Pakketinhoud | Moederbord en I/O-Shield |
