Product informatie

Specificaties: Moederbord | Socket LGA1150 | Mini-ITX | Intel Q87 Chipset |2 x DDR3 up to 16GB | Gigabit Ethernet | DVI-D | DVI-I | USB 2.0 | USB 3.0 | PCI-e 3.0 x16

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

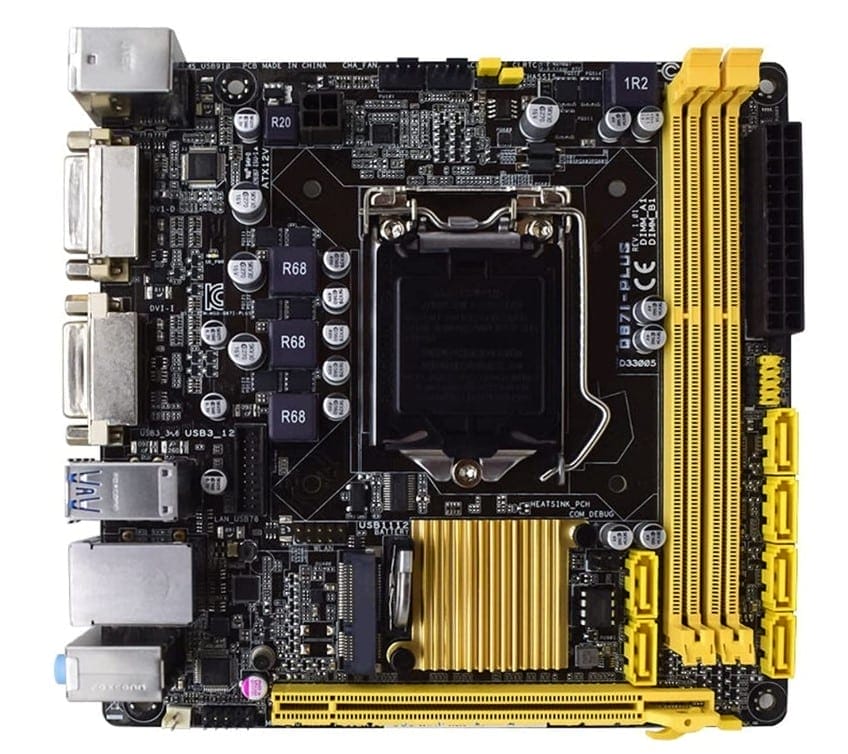

Product: Asus Q87I Plus
Categorie: Moederborden
Merk: Asus
Staat: Gebruikt
Garantie: 6 Maanden

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
– Geen antennes

CPU
LGA1150 socket for the 4th Generation, New 4th Generation and 5th
Generation Intel® Core™ i7 / Core™ i5 / Core™ i3, Pentium®, and
Celeron® processors
Supports 22nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel® Q87 Express Chipset

Memory
2 x DIMMs, max. 16GB, DDR3 1600 / 1333 / 1066 MHz, non-ECC, unbuffered memory Dual-channel memory architecture
* Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
** When you install a total memory of 4GB capacity or more, Windows® 32-bit
operating system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows® 32-bit operating system.

Expansion slots
1 x PCI Express 3.0/2.0 x16 slot
1 x Mini PCI Express slot

Graphics
Integrated graphics processor
Multi-VGA output support: DVI-I/DVI-D ports
– Supports DVI-I with max. resolution of 1920 x 1200@60Hz
– Supports DVI-D with max. resolution of 1920 x 1200@60Hz
Maximum shared memory of 1024 MB

Storage
Intel® Q87 Express Chipset
– 6 x Serial ATA 6.0 Gb/s connectors

LAN
Intel® I217LM Gigabit LAN controller

Audio
6+2 channels Realtek® ALC887-VD High Definition Audio CODEC
– Supports Jack-Detection, Multi-streaming, Anti-pop Function, Front Panel Retasking

USB
6 x USB 3.0 ports (2 ports at midboard, 4 ports at the back panel)
6 x USB 2.0 ports (2 ports at midboard, 4 ports at the back panel)

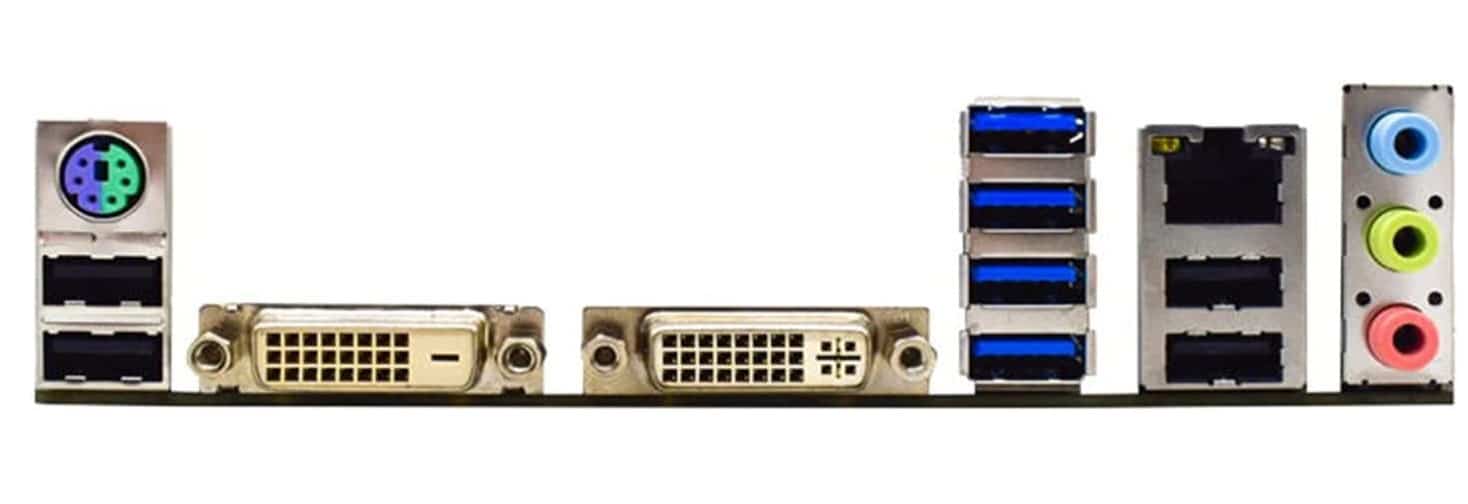

Back Panel I/O Ports
1 x PS/2 Keyboard/mouse combo port
1 x DVI-D port
1 x DVI-I port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
4 x USB 3.0 ports
3 x Audio jacks

Internal I/O connectors / jumpers / buttons
1 x USB 3.0 connector supports additional 2 USB 3.0 ports
1 x USB 2.0 connector supports additional 2 USB 2.0 ports
6 x SATA 6.0 Gb/s connectors
1 x 4-pin CPU fan connector
1 x 4-pin Chassis fan connector
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Speaker connector
1 x Chassis intrusion connector
1 x Clear CMOS jumper
1 x DIS ME jumper
1 x Mono out connector
TPM IC onboard

BIOS
features 128 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS v2.7,
ACPI v2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree
BIOS 3

Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE

Form factor
Mini-ITX form factor: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
