Product informatie

Specificaties: Moederbord | Socket LGA1150 | Mini-ITX | Intel Z97 Chipset |24 x DDR3 up to 16GB | Gigabit Ethernet | DVI-D | HDMI | VGA | Displayport | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s) | PCI-e 3.0 x16 | M.2

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

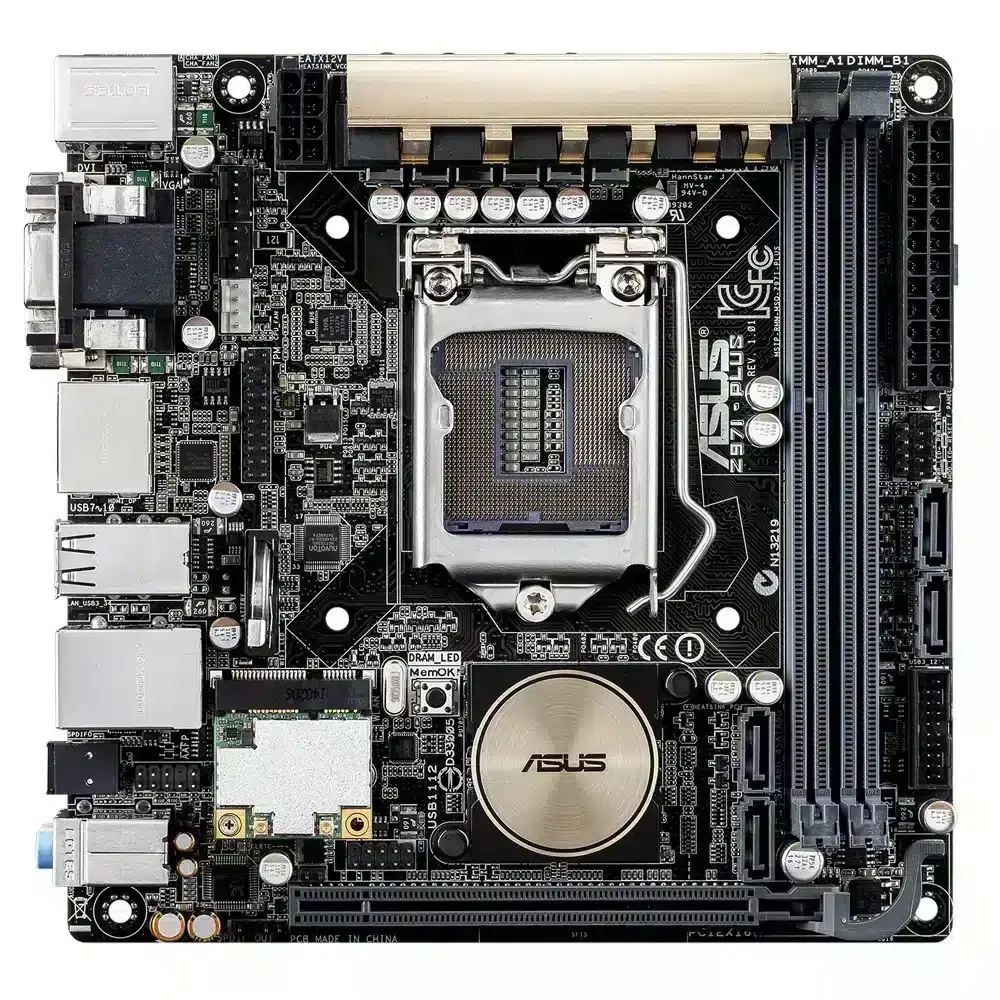

Product: Asus Z97I Pluss
Categorie: Moederborden
Merk: Asus
EAN: 4716659764564
SKU: 90MB0IU0-M0EAY0, Z97I-PLUS
Staat: Gebruikt
Garantie: 6 Maanden

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
– Geen antennes

CPU
LGA1150 socket for the 4th Generation, New 4th Generation and 5th
Generation Intel® Core™ i7 / Core™ i5 / Core™ i3, Pentium®, and
Celeron® processors
Supports 22nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel® Z97 Express Chipset

Memory
2 x DIMM, max. 16GB, DDR3 3200(O.C.)*/3100(O.C.)*/3000(O.C.)*/
2933(O.C.)*/2800(O.C.)*/2666(O.C.)*/2600(O.C.)*/2500(O.C.)*/
2400(O.C.)*/2200(O.C.)*/2133(O.C.)*/2000(O.C.)*/1866(O.C.)*/
1800(O.C.)*/1600/1333 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual
CPUs. Please refer to Memory QVL (Qualified Vendors List) for details.

Expansion slots
1 x PCI Express 3.0 x16 slot

Graphics
Integrated Graphics Processor – Intel® HD Graphics support
Multi-VGA output support: DisplayPort/HDMI/DVI-I/D-Sub port
Supports DisplayPort 1.2* with max. resolution of 4096 x 2160 @24Hz/ 3840 x 2160 @60Hz
Supports HDMI with max. resolution of 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
Supports DVI-I with max. resolution of 1920 x 1200 @60Hz
Supports D-Sub with max. resolution of 1920 x 1200 @60Hz
Supports Intel® InTru™ 3D, Intel® Quick Sync Video, Intel® Clear Video
HD Technology, and Intel® Insider™
Supports up to three displays simultaneously
Maximum shared memory of 512MB
* DisplayPort 1.2 Multi-Stream Transport compliant; supports DisplayPort 1.2
monitor daisy-chain up to 3 displays

Storage
Intel® Z97 Express Chipset with RAID 0, 1, 5, 10 and Intel®
Rapid Storage Technology 13 support
– 4 x SATA 6.0 Gb/s ports (gray)
– 1 x M.2 Socket 3 with M Key, type 2260/2280 devices support
(both SATA and PCIe mode)
– Supports Intel® Smart Response Technology, Intel® Rapid Start
Technology, and Intel® Smart Connect Technology*
* These functions will work depending on the CPU installed.

LAN
Intel® I218V Gigabit LAN- Dual interconnect between the integrated LAN
controller and physical layer (PHY)
802.3az Energy Efficient Ethernet (EEE) appliance

Wireless Data Network
Speedy Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5GHz
ASUS Wi-Fi GO! Utility
Bluetooth Bluetooth v4.0

Audio
Realtek® ALC892 7.1-channel high definition audio CODEC with ASUS Audio Feature
– Separate layer for left and right track, ensuring both sound deliver equal quality
– Top notch audio sensation delivers according to the audio configuration
– Audio Amplifier to enhance the highest quality sound for headphone and speakers
– Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
– Absolute Pitch 192khz/24bit true BD lossless sound
– DTS UltraPC II
– DTS Connect
– Supports jack-detection, multi-recording, front panel jack-retasking
– Optical S/PDIF out port at back I/O

USB
Intel® Z97 Express Chipset – supports ASUS USB 3.0 Boost
– 6 x USB 3.0/2.0 ports (2 ports at mid-board, 4 ports at rear panel [blue])
– 6 x USB 2.0/1.1 ports (2 ports at mid-board, 4 ports at rear panel)

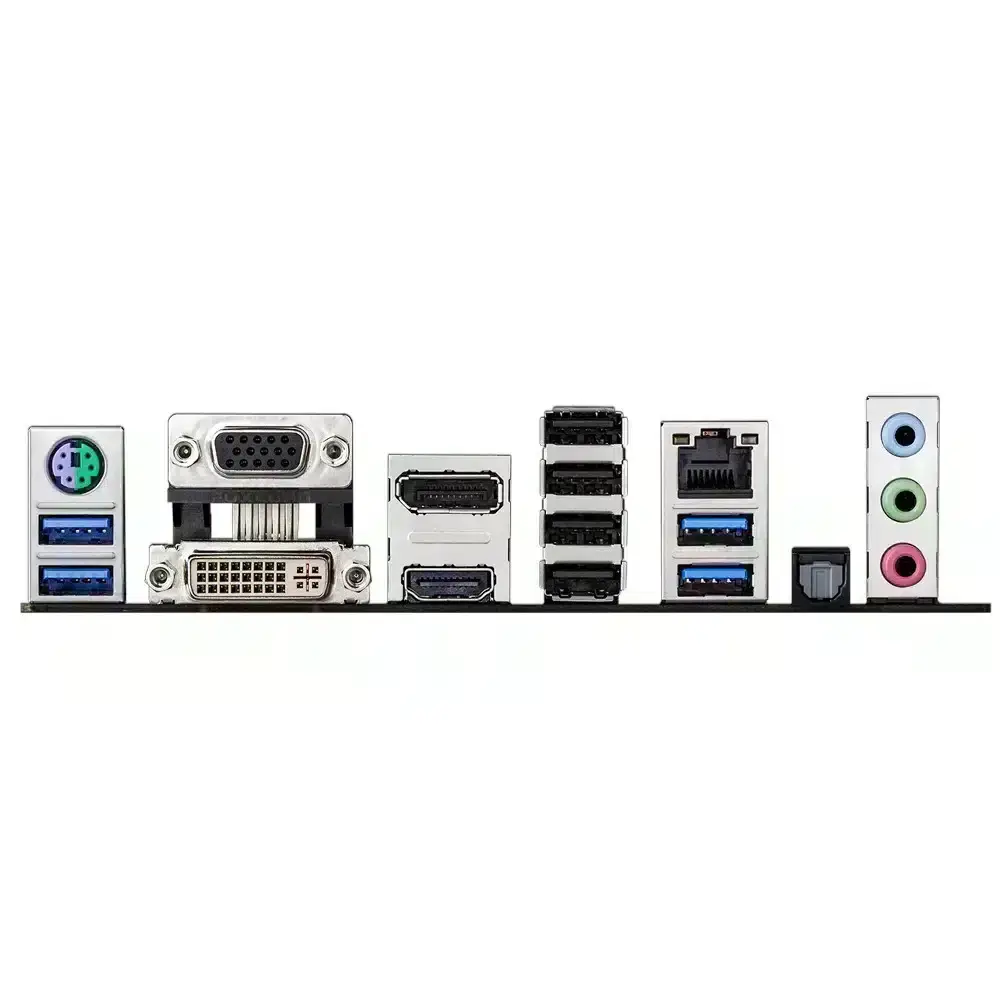

Back Panel I/O Ports
1 x PS/2 mouse / keyboard combo port
1 x HDMI port
1 x DVI-I port
1 x D-Sub port
1 x DisplayPort
1 x Optical S/PDIF Out port
1 x LAN (RJ-45) port
4 x USB 3.0/2.0 ports (blue, bottom port of USB3_34 supports USB BIOS Flashback)
4 x USB 2.0/1.1 ports
3 x audio jacks

Internal I/O connectors / jumpers / buttons
1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB ports
1 x USB 2.0/1.1 connector supports additional 2 USB ports
1 x M.2 Socket 3 (for M Key, type 2260/2280 devices)
4 x SATA 6.0 Gb/s connectors (gray)
1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control with auto detection support
2 x 4-pin Chassis Fan connectors for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System panel connector (with Q-Connector)
1 x MemOK! button
1 x Speaker connector
1 x Clear CMOS header
1 x TPM header

BIOS
features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM
BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My
Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3
Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect)
memory information

Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE

Operating system
support
Windows® 8.1
Windows® 8
Windows® 7

Form factor
Mini-ITX form factor: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
