Beschrijving
Moederbord – Socket 2011 | ATX | Intel C602 Chipset | DDR3 up to 64GB | Gigabit Ethernet | PCI-e 3.0 x16 | PCI-e 2.0 x16 | PCI-e 2.0 x8 | PCI | Sata-300 | Sata-600 | USB 2.0

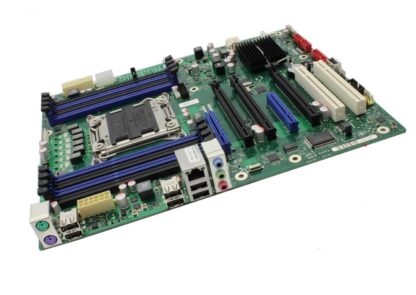

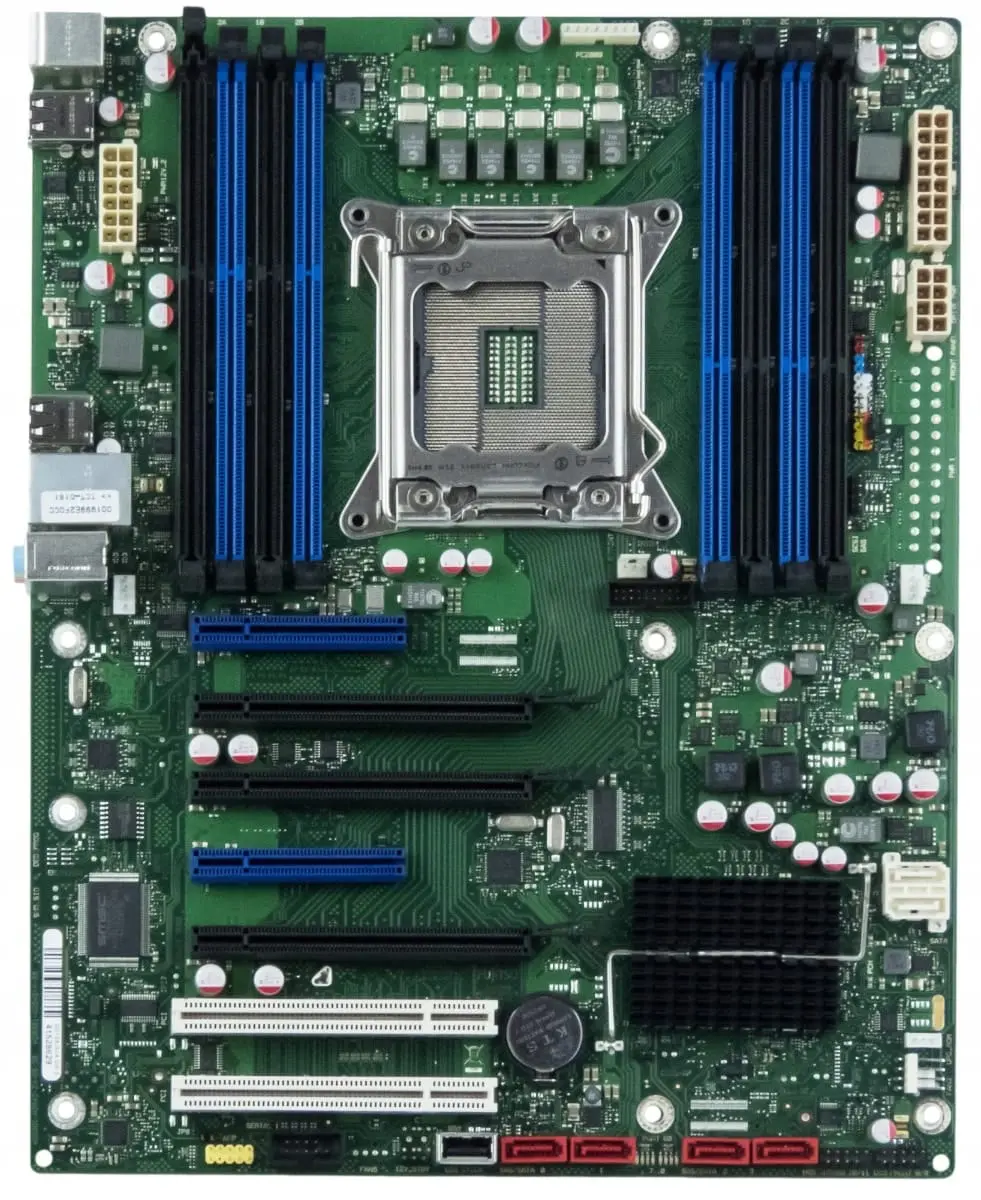

Product: FUJITSU D3128-A14 GS3
Merk: FUJITSU
Staat: Gebruikt
Garantie: 6 Maanden
Geen IO-Shield
CPU
– Supports Socket 2011
Chipset
– Intel® C602
Memory
–8 DIMM Sockets DDR3, max. 64GB, Single / Dual / Triple / Quad Channel
800/1066/1333/1600MHz, single rank / dual rank unbuffered, ECC / non
support (depends on processor)
LAN
– Intel 82579LM LAN Controller with 10/100/1000 MBit/s,
Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic
Packet™, PXE Support, BIOS MAC Address Display, Support for Jumbo-Frames
Slots
– 2 x PCIe x16 (Gen3)
– 2 x PCIe x8 (4 Lanes Gen3)
– 5 x PCI
SATA
– 2 SATA 6.0 Gb/s ports
– 4 SATA 3.0 Gb/s ports
Connector
1 x Audio
6 x USB 2.0
2 x USB 3.0
1 x USB Stick 2.0
Fan: PSU / CPU / AUX1 / AUX2 / AUX3
Intrusion (Case Open)
1 x Parallel
ATX Power (24pi + 4 Pin)
Rear Panel I/O
I/O Panel
4 x USB 2.0
3 x Audio
1 x GigaLan
2 x PS/2
Accessories
– Geen
Form Factor
– ATX Form Factor
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
