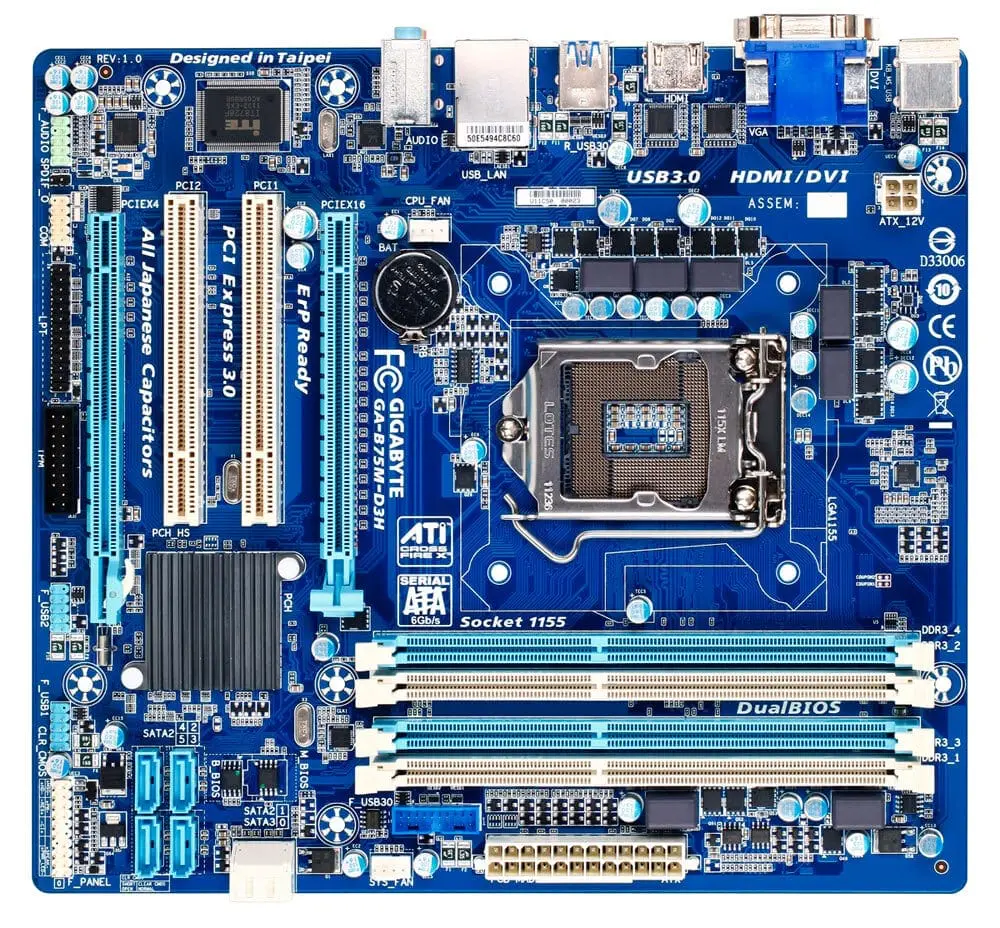

Het Gigabyte GA-B75M-D3H moederbord is een Micro-ATX moederbord met plaats voor 4 DDR3 geheugen modules, met een maximum van 32GB. Het Gigabyte GA-B75M-D3H moederbord is voorzien van PCI, PCI-e x1 enPCI-e 3.0 x16 sloten.
Specificaties: moederbord | Socket 1155 | Intel B75-chipset | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0 | DVI-D | HDMI | VGA (D-Sub)
Product:GA-B75M-D3H
Socket: 1155
Categorie: Moederborden
Merk: Gigabyte
Staat: Gebruikt. voorzien van de laatst beschikbare BIOS versie
EAN: 0749479048341, 0818313014474, 4719331806200, 8183130144744
SKU: GA-B75M-D3H
Garantie: 6 maanden
Drivers voor de Asus GA-B75M-D3H
Processoren die door de GA-B75M-D3Hworden ondersteund
pakketinhoud:
– Moederbord (GA-B75M-D3H)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
Chipset
Intel® B75 Express Chipset
Memory
– 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
– Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
– Support for non-ECC memory modules
– Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
Onboard Graphics
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 1920×1200
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
– 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
– 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
– 2 x PCI slots
Multi-Graphics Technology
– Support for AMD CrossFireX™ technology
Chipset:
– 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
– 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices
USB Chipset:
– Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
– Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x SATA 6Gb/s connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

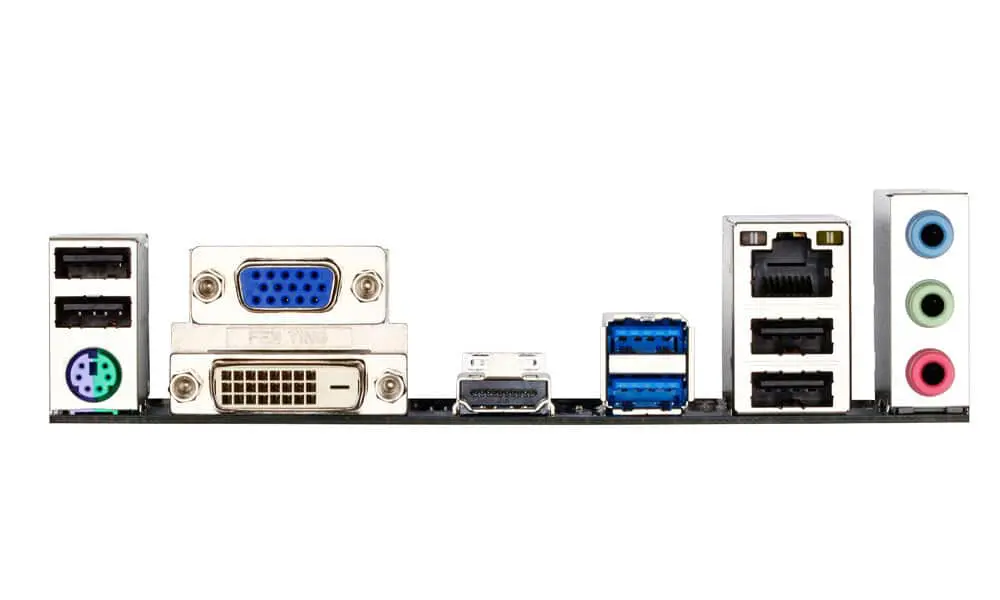

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
-Support for @BIOS
– Support for Q-Flash
– Support for Xpress Install
– Support for Xpress Recovery2
– Support for Auto Green
– Support for ON/OFF Charge
– Support for Q-Share
– Support for LAN Optimizer (Intelligent optimization network management tool)
Operating System
Support for Windows 10/8.1/8/7
Form Factor
– Micro ATX Form Factor; 24.4cm x 22.0cm
Gewicht | 1 kg |
---|---|
Intel | Socket 1155 |
Merk | Gigabyte |
Chipset | Intel B75 |
Formaat | Micro-ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 4 |
Maximale geheugengrootte | 64 GB |
Aansluitingen | D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.0 |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16 |
Socket |
