Product informatie

Het Gigabyte GA-H67M-D2-B3  Socket 1155 moederbord is een Micro-ATX moederbord welke is voorzien van 2 DDR3 geheugensloten. De Gigabyte GA-H67M-D2-B3 Socket 1155 moederbord is een moederbord voorzien van de Intel H67 Chipset, met 4 geheugensloten.


Moederbord – Socket 1155 | ATX | Intel H67 Chipset | 2 x DDR3 up to 32GB | Gigabit Ethernet | USB 2.0 | PCI-e 2.0 x1 | PCI-e 2.0 x16 | Sata-300 | Sata-600 |DVI-D | VGA


Product: Gigabyte GA-H67M-D2-B3 Socket 1155;
Categorie: Intel socket 1155 Moederborden;
Merk: Gigabyte
EAN: 4719331807153
SKU: GA-H67M-D2-B3
Staat: Gebruikt
Garantie:
6 Maanden


Processoren die ondersteund worden door de Gigabyte GA-H67M-D2-B3
Drivers voor de Gigabyte GA-H67M-D2-B3

Uitgebreide product specificaties:


CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer “CPU support List” for more information.)


Chipset
Intel® H67 Express Chipset


Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules


Onboard Graphics
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.


Audio
Realtek ALC888B codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
1 x Realtek RTL8111E chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)


Storage Interface
2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.


USB
Up to 14 USB 2.0/1.1 ports (8 on the back panel, 6 via the USB brackets connected to the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
3 x USB 2.0/1.1 headers
2 x serial port headers
1 x clearing CMOS jumper

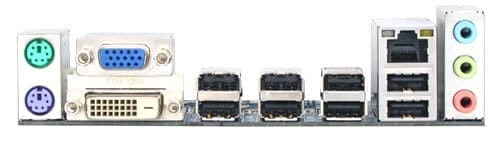

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
8 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)


H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.


BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart 6™
Support for Auto Green
Support for eXtreme Hard Drive (X.H.D)
Support for ON/OFF Charge
Support for Cloud OC
Support for Q-Share


Form Factor
Micro ATX Form Factor; 24.4cm x 21cm

Specificaties

Gewicht 1 kg
Intel

Socket 1155

Merk

Gigabyte

Chipset

Intel H67

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0

Opslag interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

GA-H67M-D2-B3

Lengte

24.4 cm

Breedte

21 cm

Pakketinhoud

Moederbord en I/O-Shield

Gigabyte GA-H67M-D2-B3 socket 1155 moederbord

5 op voorraad

Snelle levering
49,95

  • Ondersteunt de nieuwste LGA1155 2e generatie Intel® Core™-processors
  • Alle vaste condensatoren van Japanse makelij aan boord
  • GIGABYTE 3x USB-voeding met aan/uit USB-poorten voor opladen
  • Hoge snelheid SATA3-opslaginterface met supersnelle 6 Gbps linksnelheid
  • CrossFireX-ondersteuning voor ultieme grafische prestaties
  • DVI-interface voor vloeiender afspelen van HD-video
  • Innovatieve Smart 6-technologie voor slimmer pc-beheer
  • Gepatenteerde DualBIOS™-technologie die storingsbescherming van het hoogste niveau biedt
Aantal:
  • Gratis verzending vanaf €100,-
  • Betrouwbaar al meer dan 10 jaar!
  • Snelle levering
  • Betalen in termijnen is mogelijk!
Artikelnummer: GA-H67M-D2-B3 Categorieën: , , Tags: , ,

Voordelen en nadelen
Volgens onze computer expert

  • 4 DDR3 Geheugensloten
