Beschrijving
Eigenschappen: H55M-USB3 – Intel® Socket 1156, Intel® H55, 2 x DIMM DDR3, 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x4, 2 x PCI, DVI-D, HDMI, D-Sub, 6 xSATA 3.0 Gb/s, Gigabit LAN.
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: Gigabyte GA-H55M-USB3
Categorie: Moederborden
Merk: Gigabyte
EAN: 4719331852146
SKU:GA-H55M-USB3
Opmerking: dit is een gebruikt moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 90 dagen.
pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
CPU
Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® H55 Express Chipset
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
* Please refer “Memory Support List” for more information.
Onboard Graphics
Integrated in the Chipset:
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port(Note 2) (Note 4)
1 x DisplayPort (Note 2) (Note 4)
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
1 x Realtek RTL8111D/8111E chip (10/100/1000 Mbit)
Expansion Slots
*1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
(The PCIEX16 slot conforms to PCI Express 2.0 standard.)
*1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
2 x PCI slots
Multi-Graphics Technology
Support for ATI CrossFireX™ technology(Note 6)
Storage Interface
Chipset:
5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
JMicron JMB368 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Chipset:
Up to 12 USB 2.0/1.1 ports (6 on the back panel (Note 7), 6 via the USB brackets connected to the internal USB headers)
NEC D720200F1 chip:
Up to 2 USB 3.0 ports on the back panel
IEEE 1394
T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan headers
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x serial port header
1 x clearing CMOS jumper

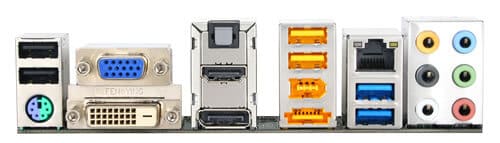

Back Panel Connectors
1 x PS/2 keyboard or PS/2 mouse port
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x optical S/PDIF Out connector
1 x HDMI port (Note 2) (Note 4)
1 x DisplayPort (Note 2) (Note 4)
6 x USB 2.0/1.1 ports (Note 7)
2 x USB 3.0 ports
1 x IEEE 1394a port
1 x eSATA 3Gb/s connector
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8720 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 7)
BIOS
2 x 64 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver™ 2
Support for Smart 6™
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Operating System
Support for Microsoft® Windows 7/Vista/XP
Form Factor
MicroATX Form Factor; 24.4cm x 24.4cm
Note
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub, DVI-D, HDMI, and DisplayPort ports, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 6) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
(Note 7) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 8) Available functions in EasyTune may differ by motherboard model.
