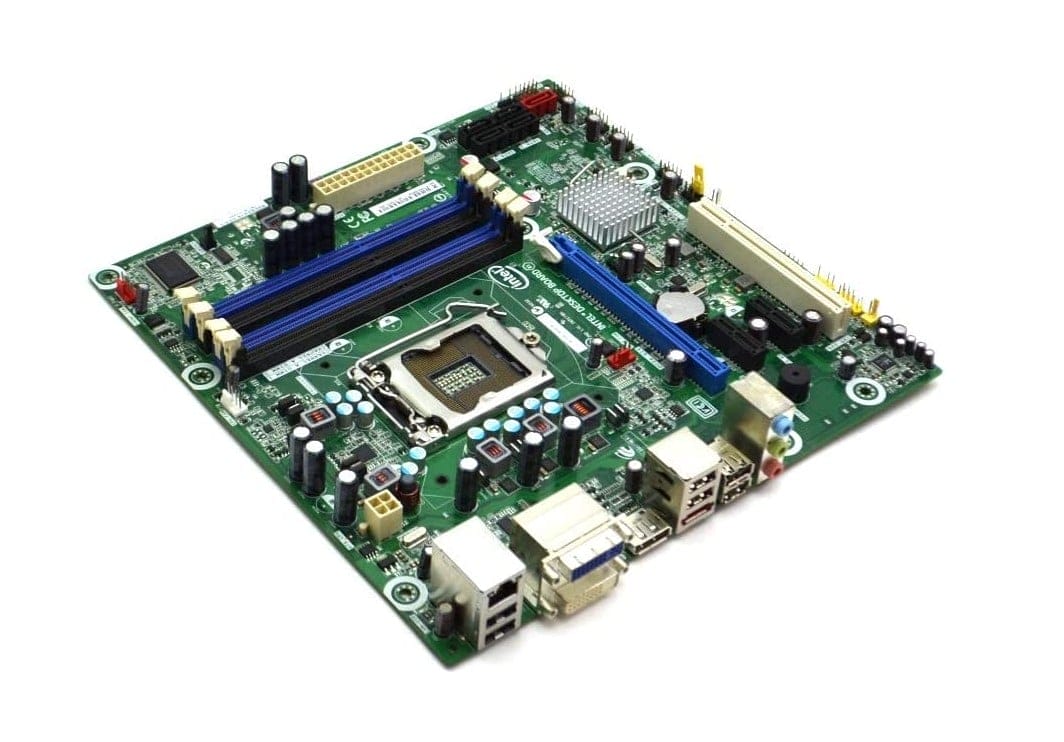

Het Intel DQ57TM moederbord is een Micro-ATX Socket 1156 moederbord welke is voorzien van 4 DDR3 geheugensloten. De Intel DQ57TM Socket 1156 moederbord is een moederbord voorzien van de Intel Q57 Chipset.
Moederbord – Socket 1156 | Micro-ATX | Intel Q57 Chipset | 4 x DDR3 up to 16GB | Gigabit Ethernet | PCI 2.2 | 2x PCI-e 2.0 x1 | PCI-e 2.0 x16 | 4x SATA-300 | eSATA | 14x USB 2.0 | DisplayPort | DVI-D | DVI-I
Product: Intel DQ57TM Socket 1156;
Categorie: Intel socket 1156 Moederborden;
Merk: Intel;
EAN: 0735858210263
SKU: BOXDQ57TM
Staat: Gebruikt
Garantie: 6 Maanden
Processoren die ondersteund worden door de Intel DQ57TM
Drivers voor de Intel DQ57TM
CPU
– Supports Socket 1156
Chipset
– Intel® Q57
Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells
LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet
Slots
– 1x PCI Express 2.0 x16
– 1x PCI Express 2.0 x1
– 3x PCI
SATA
– 5 SATA 3.0 Gb/s ports
Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 8 x USB 2.0 connectors
– 5 x Serial ATAII connectors
Rear Panel I/O
I/O Panel
– 6 x USB 2.0 ports
– 1x HDMI
– 1x DVI-I
– 1x DVI-D
– 1 x eSata
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
Accessories
– I/O Shield
Form Factor
– Micro-ATX Form Factor
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
Gewicht | 1 kg |
---|---|
Intel | LGA1156 |
Merk | Intel |
Chipset | Intel Q57 |
Formaat | Micro-ATX |
Geheugentype | DDR3 SDRAM |
Aantal geheugenslots | 4 |
Maximale geheugengrootte | 16 GB |
Aansluitingen | DVI-D, DVI-I, eSATA, Ethernet (RJ-45), HDMI, USB 2.0 |
Opslag interfaces | Serial ATA-300 |
Interfaces | PCI, PCI-e 2.0 x1, PCI-e 2.0 x16 |
Socket | |
Bijzonderheden | Onboard Audio |
