Intel DB75EN socket 1155 moederbord

Product: Intel DB75EN Socket 1155;
Categorie: Intel socket 1155 Moederborden;
Merk: Intel;
EAN: 503203703528
SKU: BD75EN
Staat: Gebruikt
Garantie:
6 Maanden

Uitverkocht

Vergelijk
Artikelnummer: DB75EN Categorieën: , , Tags: , ,

Beschrijving

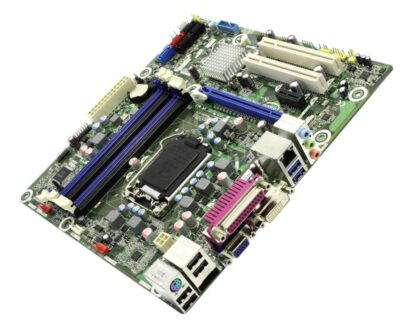

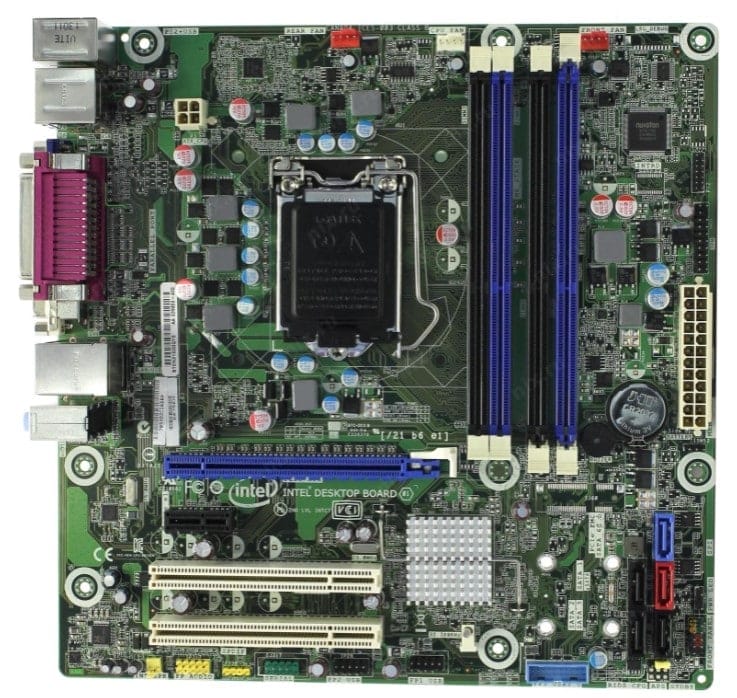

Het Intel DB75EN moederbord is een Micro-ATX moederbord welke is voorzien van 4 DDR3 geheugensloten. De Intel  DB75EN s een moederbord voorzien van de Intel B75 Chipset.


Korte Specificaties:

Moederbord – Socket 1155 | ATX | Intel B75 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | 4x SATA-300 | SATA-600 | eSATA | 8x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | DVI-D | VGA (D-Sub)


Product: Intel DB75ENL Socket 1155;
Categorie: Intel socket 1155 Moederborden;
Merk: Intel;
EAN: 0675901132176, 0735858240536, 0735858240567, 5032037035286, 5032037035316
SKU: DB75EN
Staat: Gebruikt
Garantie:
6 Maanden


Processoren die ondersteund worden door de Intel DH67CL
Drivers voor de Intel DH67CL

Uitgebreide product specificaties:


CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon in LGA1155 Package
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology


Chipset
– Intel® B75


Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Audio
Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec


LAN
–  Supports one PCI Express LAN 10/100/1000 Fast Ethernet


Slots

– 1x PCI Express 2.0 x16
– 1x PCI Express 2.0 x1
– 2x PCI


SATA
– 4 SATA 6.0 Gb/s ports
– 1 SATA 3.0 Gb/s ports


Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 6 x USB 2.0 connectors
– 2x USB3.2 Gen 1
– 4 x Serial ATAII connectors
– 1 x Serial ATAIII connectors


Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard port
– 4 x USB 2.0 ports
– 2x USB 3.0 Ports
– 1x VGA (D-Sub)
– 1x DVI-D
– 1x Parallel Port
– 1 x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack


Accessories
– I/O Shield


Form Factor
– Micro-ATX Form Factor


OS

– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.

Extra informatie

Gewicht 1 kg
Intel

Socket 1155

Merk

Intel

Chipset

Intel B75

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Opslag interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
