Beschrijving
Moederbord – Socket 1150 | Micro-ATX | Intel Q87 Chipset | DDR3 up to 32GB | Gigabit Ethernet | PCI-e 3.0 x16 | PCI-e 2.0 x16 | PCI-e 2.0 x1 | Sata-600 | USB 2.0 | USB 3.0 | DVI-D | Displaypoort | VGA | Com-poort

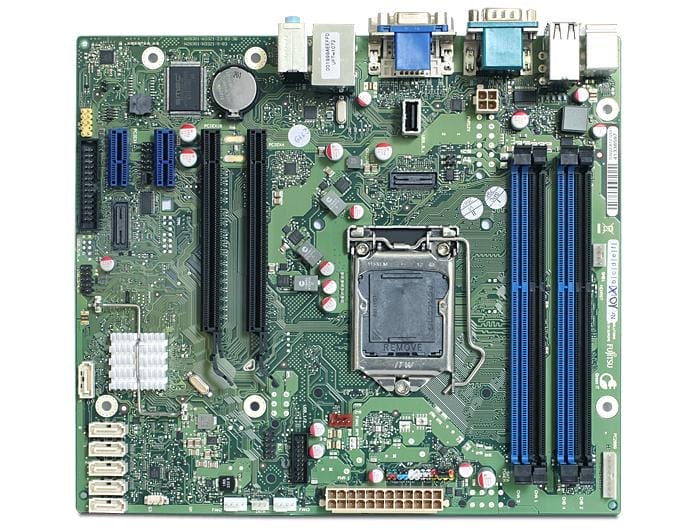

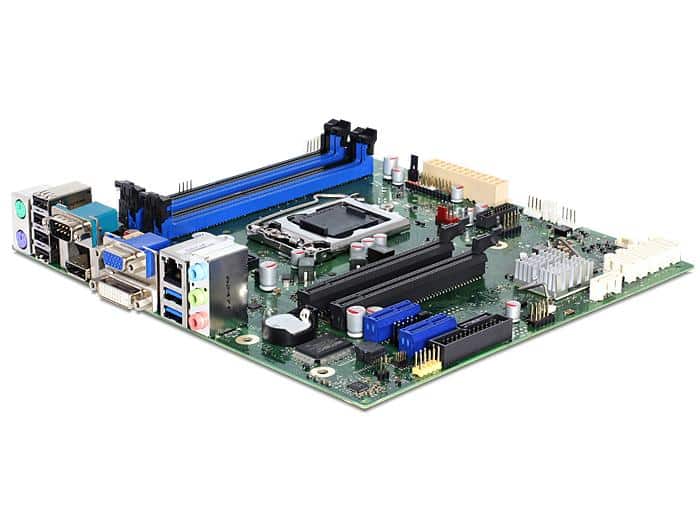

Product: FUJITSU D3222-B12 GS2
Merk: FUJITSU
Staat: Gebruikt
Garantie: 6 Maanden
Geen IO-Shield
CPU
– Supports Socket 1150
Chipset
– Intel® Q87
Memory
– 4 x Socket for DIMM DDR3 (1,5V) 1GB – 32GB
– Single Channel/Dual Channel 1333MHz (CL9) and 1600MHz (CL11) SDRam, unbuffered, no ECC
LAN
– Intel ® Clarkville i217LM Fast Ethernet
Slots
– 1 x PCIe x16 (Gen3)
– 1 x PCIe x16 (4 Lanes Gen2)
– 2 x PCIe x1 (Gen2)
SATA
– 6 SATA 6.0 Gb/s ports
Connector
1 x Audio
4 x USB 2.0
2 x USB 3.0
1 x USB Stick 2.0
Fan: PSU / CPU / AUX1 / AUX2
Intrusion (Case Open)
1 x Parallel
ATX Power (24pi + 4 Pin)

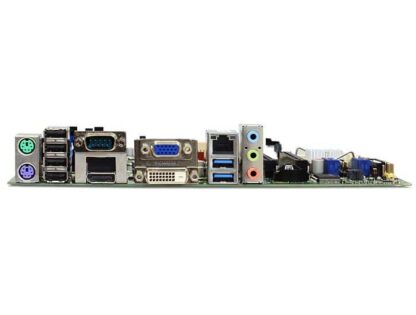

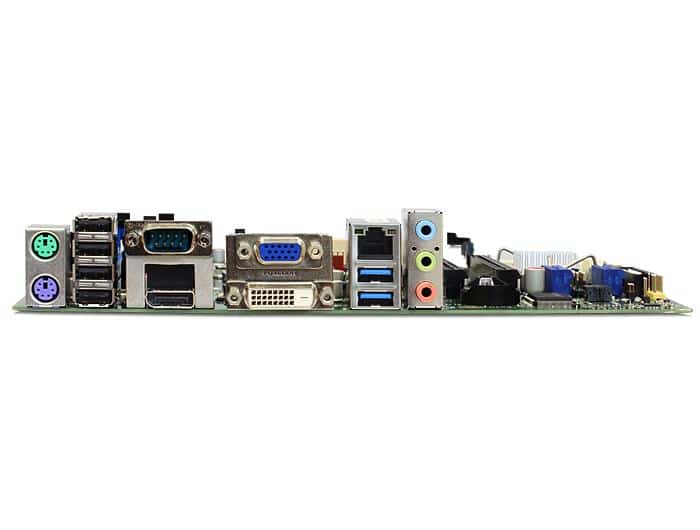

Rear Panel I/O
I/O Panel
1 x VGA
1 x DVI-D
1 x DisplayPort
4 x USB 2.0
2 x USB 3.0
3 x Audio
1 x GigaLan
2 x PS/2
1 x Serial (RS232, FIFO, 16550 compatible)
Accessories
– Geen
Form Factor
– Micro-ATX Form Factor
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
