Product informatie

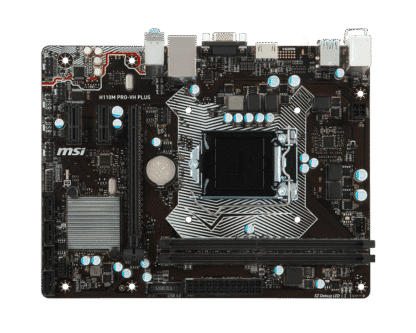

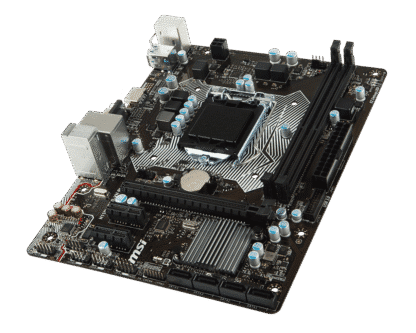

MSI H110M Pro VH Plus Eigenschappen: Moederbord | M-ATX | Socket 1151 | 2x DDR4 | SATA-600 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb/s) | HDMI | D-Sub

Product: MSI H110M Pro VH Plus
Aansluiting: Socket 1151
Geschikt voor: 6e en 7e generatie processoren
Categorie: moederborden
Merk: MSI
Staat: Gebruikt – BIOS geüpdatet naar de nieuwste versie
Garantie: 6 maanden
EAN: 4719072461065
SKU: H110M PRO-VH PLUS, H110M PRO-VH-PLUS

pakketinhoud:
– Moederbord (MSI H110M Pro VH Plus)
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– kabels

CPU
Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset
Intel® H110 Express Chipset

Memory
• 2 x DDR4 memory slots, support up to 32GB
– Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs
* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation

Onboard Graphics

• 1 x HDMI™ ports, support a maximum resolution of 4096×2160@24Hz, 2560×1600@60Hz
– Support for HDMI™ 1.4 version.
• 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz

Audio
• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio

LAN
• 1 x Realtek RTL8111H Gigabit LAN controller

Expansion Slots
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots

Storage Interface
• Intel® H110 Chipset
• 4 x SATA 6Gb/s ports

USB
Chipset:
– 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
– 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Internal Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Serial Port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 mouse port
1 x PS/2 keyboard port
2 x USB 2.0 ports
2 x USB 3.1 Gen1 ports
1 x HDMI™ port
1 x VGA port
1 x LAN (RJ45) port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

Hardware Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

Form Factor
Micro-ATX Form Factor – 8.9 in. x 6.8 in. (22.6 cm x 17.3 cm)
