Product informatie

MSI H510M-A PRO: moederbord |Micro-ATX | Intel Socket 1200 | H510 Chipset | 2x DDR4 (max. 64GB) | PCI-e 3.0 x1 | PCI-e 3.0 x16 | M.2 | SATA-600 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | HDMI | VGA (D-Sub)

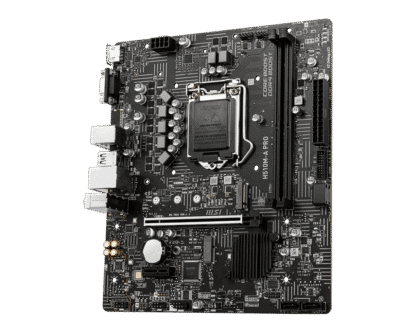

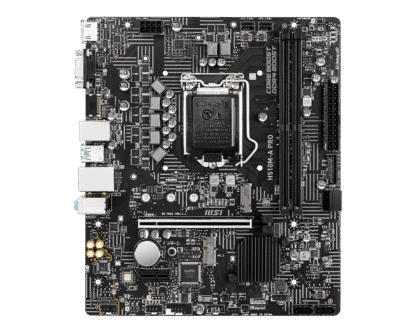

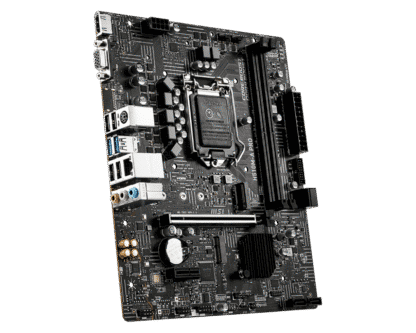

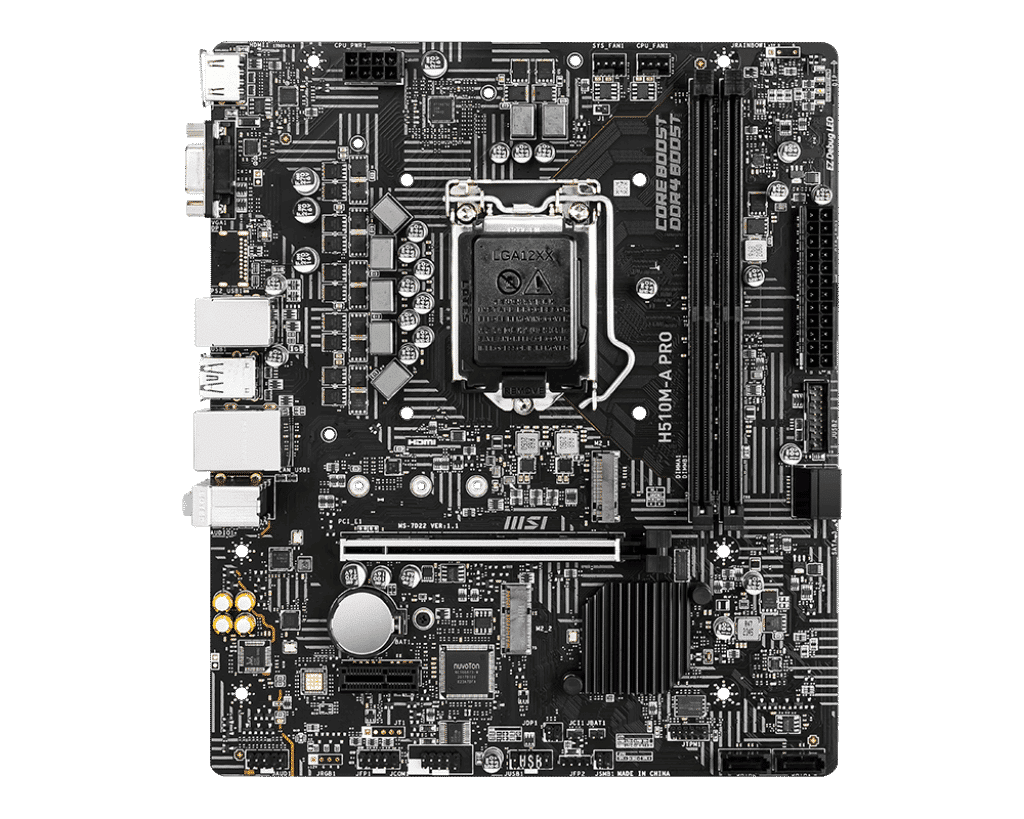

Product: MSI H510M-A PRO
CPU Support: 10th and 11th Gen
Socket: Socket 1200
Merk: MSI
Staat: Used
EAN: 4719072802905
SKU:7D22-009R, H510M-A PRO
Garantie: 6 maanden

Drivers voor de MSI H510M-A PRO
Processoren ondersteund door de MSI H510M-A PRO

pakketinhoud:
– Moederbord (MSI H510M-A PRO)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

CHIPSET
Intel® H510 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer to www.msi.com for more information on compatible memory.
See supported memory

EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi (PCIe) module only(M2_2)

ONBOARD GRAPHICS
1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 2
1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz1
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

STORAGE
4x SATA 6Gb/s ports (From H510 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From H510 Chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s1
Supports 2242/ 2260/ 2280 storage devices
SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB
Intel® H510 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)

AUDIO
Realtek® ALC892/ ALC897 Codec
7.1-Channel High Definition Audio

LAN
1x Intel® I219V 1Gbps LAN controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

BACK PANEL PORTS
HDMI™
VGA
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0

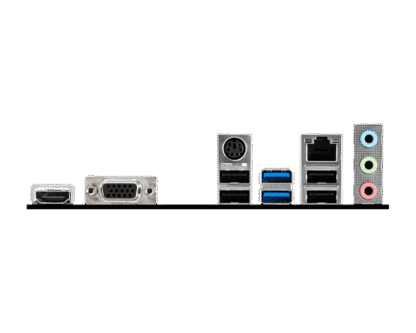

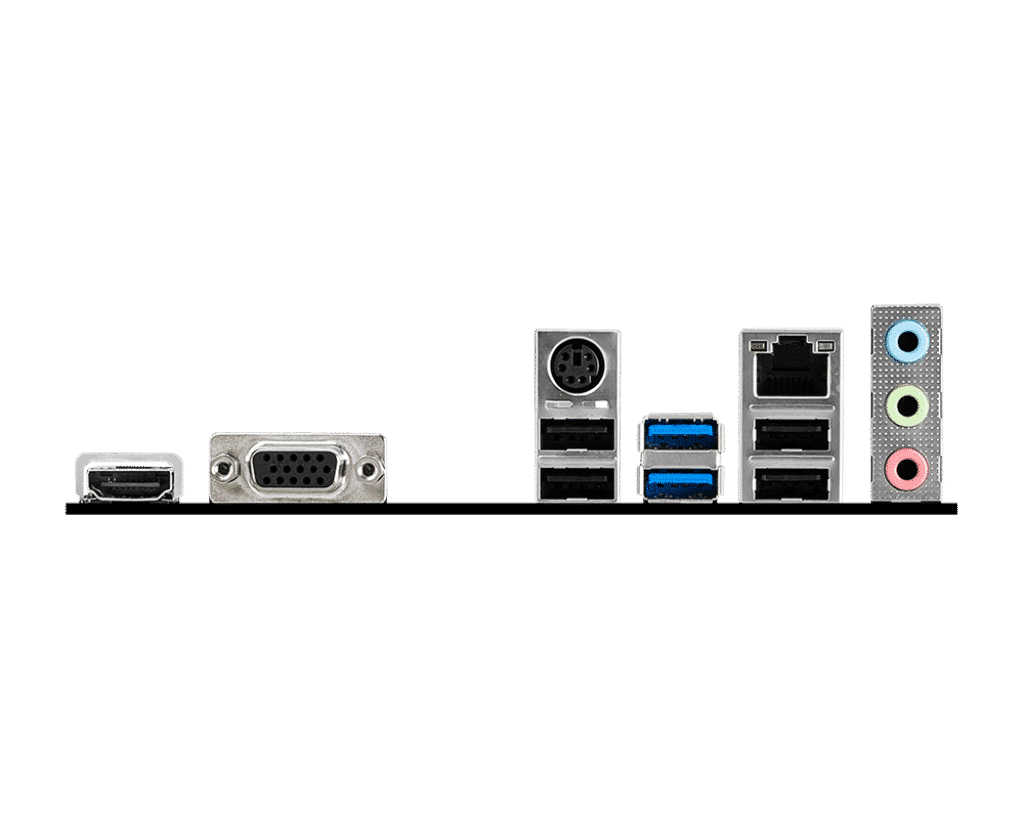

MSI H510M-A PRO back panel ports

DIMENSIONS
mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)

MOUNTING
6 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
