Kenmerken: Moederbord | Micro-ATX | Socket 1155 | 4x DDR3 | SATA-300 | PCI | PCI-e 3.0 x16 | LAN | VGA | DVI
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

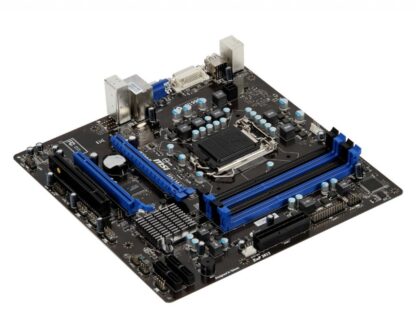

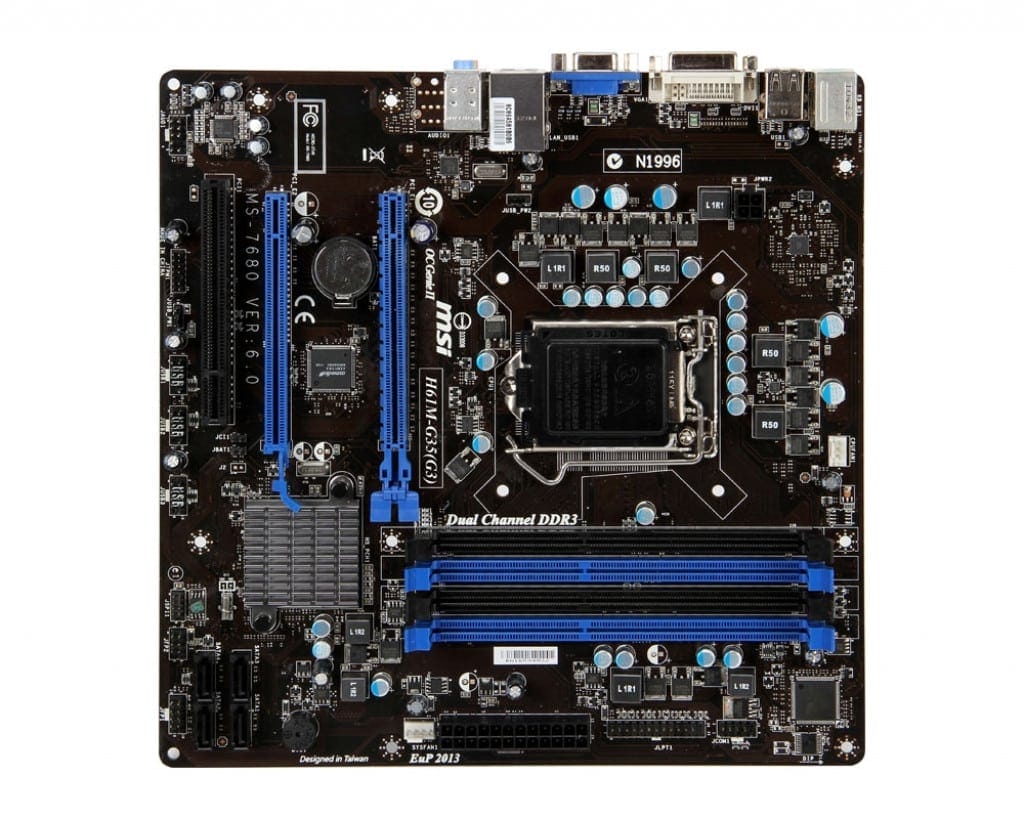

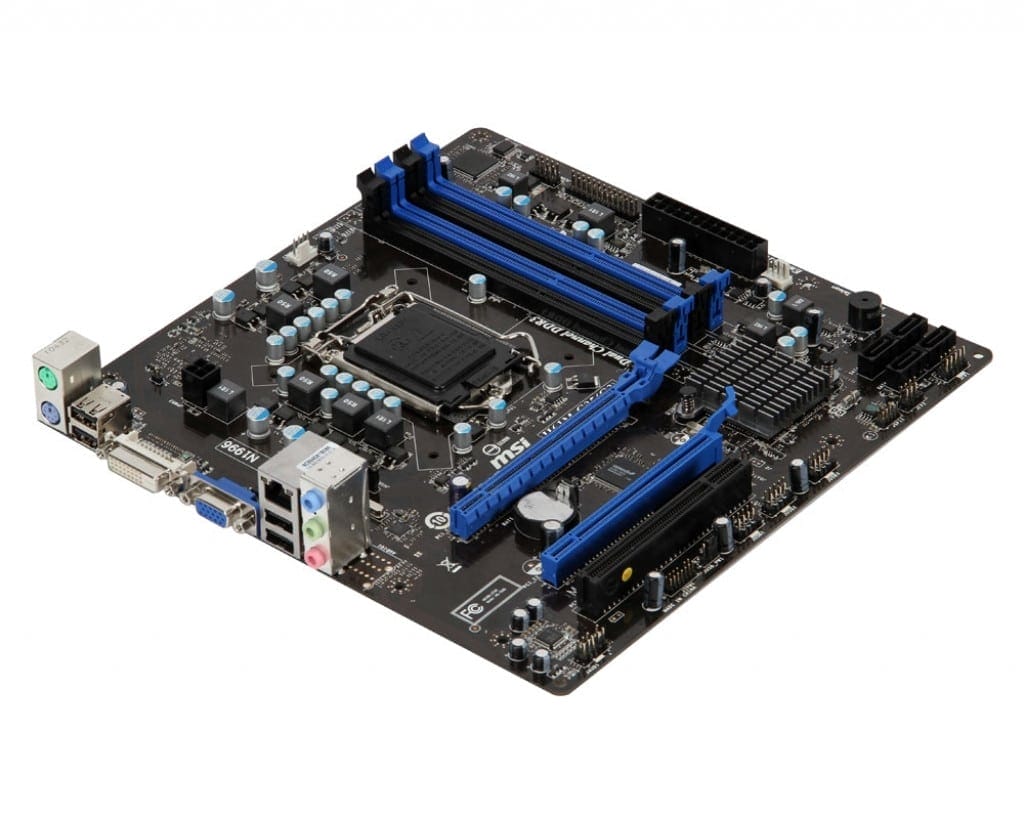

Product: MSI H61M-G35 (G3)
Socket: Socket 1155
Categorie: moederborden
Merk: MSI
Staat: Used – BIOS bijgewerkt naar de nieuwste versie
EAN: 4719072253066
SKU: 7680-070R, H61M-G35 (G3)
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (MSI H61M-G35 (G3)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Chipset
Intel® H61 (B3) Chipset
Memory
• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600* DRAM, 16GB Max
– Supports Dual channel mode
*DDR3-1600 MHz is only supported with Intel® Ivy Bridge processors
Expansion Slots
• 1 PCI Express gen3 x16 slot, supports up to PCIe 3.0 x 16 speed
• 1 PCI Express gen2 x16 slot, supports up to PCIe 2.0 x 4 speed
• 1 PCI slot
Storage
• SATAII controller integrated in Intel® H61 (B3) chipset
– Up to 3Gb/s transfer speed.
– Supports four SATAII ports (SATA1~4) by H61 (B3) PCH
LAN
Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111E
Audio
• Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec
Operating System Support
Windows® 8
Windows® 7

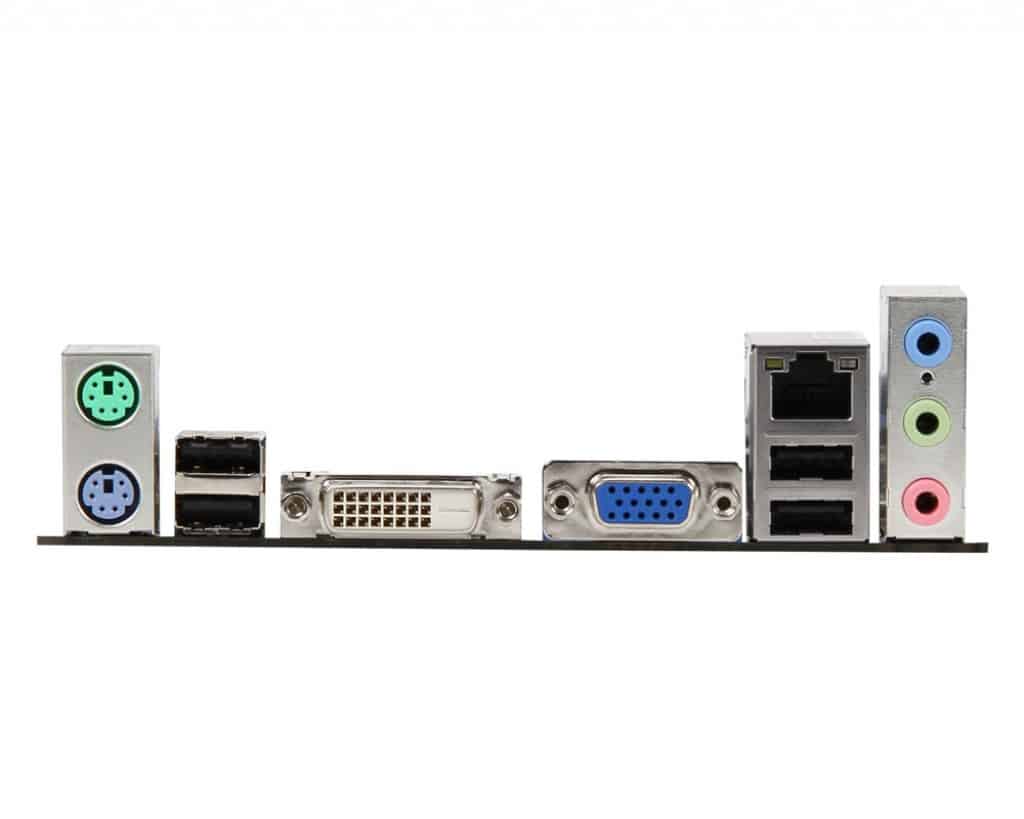

Back I/O Ports
– 1 x PS/2 Mouse port
– 1 x PS/2 Keyboard port
– 4 x USB 2.0 ports
– 1 x Graphic Card port
– 1 x DVI-D port
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
Internal I/O Ports
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– CPU x 1 / System x 1 FAN connectors
– Front panel audio connector
– Front panel connector
– 1 x chasis intrusion connector
– 3 x USB 2.0 connector
– 4 x Serial ATAII connectors
– 1 x Clear CMOS jumper
– 1 x TPM module connector
– 1 x Serial port connector
– 1 x Parallel port connector
Accessories
I/O Shield
Form Factor
Micro-ATX Form Factor
24.4cm(L) x 24.4cm(W)
BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Gewicht | 1 kg |
---|---|
Intel | Socket 1155 |
Merk | MSI |
Chipset | Intel H61 |
Formaat | Micro-ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 4 |
Maximale geheugengrootte | 16 GB |
Aansluitingen | D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0 |
Opslag interfaces | Serial ATA-300 |
Interfaces | PCI, PCI-e 3.0 x16 |
Socket | |
Model | H61M-G35 (G3) |
Lengte | 24.4 cm |
Breedte | 24.4 cm |
Pakketinhoud | Moederbord en I/O-Shield |
Snelle levering
Product: H61M-G35 (G3) Socket 1155;
Merk: MSI;
EAN: 4719072253066
SKU: 7680-070R
Staat: Gebruikt
Garantie: 6 Maanden
