Beschrijving

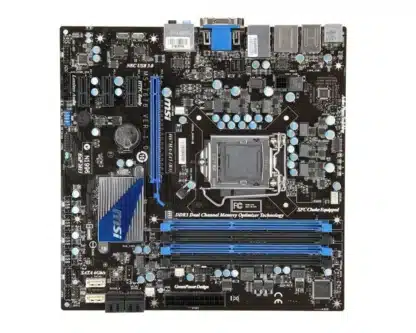

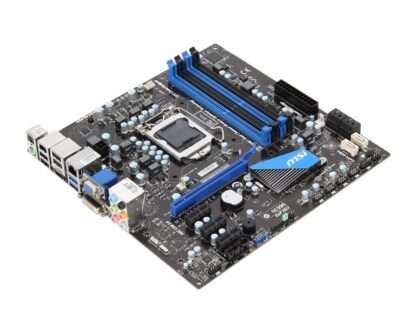

Het MSI H67MA-E45 Socket 1155 moederbord is een ATX moederbord welke is voorzien van 4 DDR3 geheugensloten. De MSI H67MA-E45 Socket 1155 moederbord is een moederbord voorzien van de Intel H67 Chipset, met 4 geheugensloten.
Moederbord – Socket 1155 | ATX | Intel H67 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet USB 2.0 | USB 3.2 Gen 1 |FireWire | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | Sata 3.0 |HDMI | DVI-D | VGA
Product: MSI H67MA-E45 Socket 1155;
Categorie: Intel socket 1155 Moederborden;
Merk: MSI;
EAN: 4719072217235
SKU: 7678-011R
Staat: Gebruikt – Bios bijgewerkt naar de laatste versie
Garantie: 6 Maanden
Processoren die ondersteund worden door de MSI H67MA-E45
Drivers voor de MSI H67MA-E45
Uitgebreide product specificaties:
CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology
Chipset
– Intel® H67
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.
Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells
BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Audio
Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec
LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.
Slots
– 1 PCI Express gen2 x16 slot
– 3 PCI Express gen2 x1 slots
SATA
SATAII controller integrated in Intel® H67 chipset
– Up to 3Gb/s transfer speed.
– Supports four SATAII ports (SATA3~6) by H67 PCH
SATAIII controller integrated in Intel® H67 chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by H67 PCH
– SATA1~2 ports support RAID 0/1/5/10 mode
Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– CPU x 1 / System x 3 FAN connectors
– CD-in connector
– Front panel audio connector
– Front panel connector
– 1 x chasis intrusion connector
– 4 x USB 2.0 connectors
– 4 x Serial ATAII connectors
– 2 x Serial ATAIII connectors
– 1 x IEEE1394 connector
– 1 x Clear CMOS jumper
– 1 x SPDIF-out connector
– 1 x TPM module connector
– 1 x Serial port connector

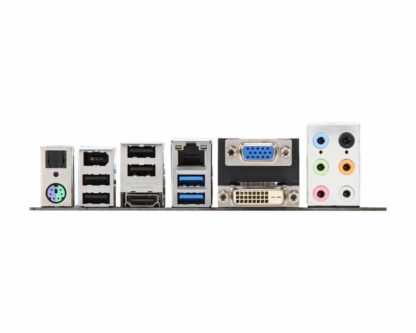

Rear Panel I/O
I/O Panel
– 1 x Optical SPDIF port
– 1 x PS/2 Mouse/Keyboard port
– 1 x IEEE1394 port
– 4 x USB 2.0 ports
– 1 x HDMI port
– 1 x RJ45 LAN Jack
– 2 x USB 3.0 ports
– 1 x Graphic Card port
– 1 x DVI-D port
– 1 x 6 in 1 audio jack
Accessories
– I/O Shield
Form Factor
– Micro-ATX Form Factor
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
