Product informatie

Het MSI H87-G43 moederbord is een ATX moederbord met plaats voor 4 DDR3 geheugen modules, met een maximum van 32GB. Het MSI H87-G43 moederbord is voorzien van 2x PCI, 2x PCI-e 2.0 x1, PCI-e 2.0 x16 en een PCI-e 3.0 x16 sloten.

Specificaties:  moederbord | ATX | Socket 1150 | Intel H87-chipset | PCI | PCI-e 2.0 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D-Sub)

Product: MSI H87-G43
Socket: 1150
Categorie: Moederborden
Merk: MSI
Staat: Gebruikt
EAN: 0816909106930, 4526541781629, 4719072295486, 4719072302764, 8169091069302
SKU: 7816-002R, H87-G43
Garantie: 6 maanden

Drivers voor de MSI H87-G43
Processoren die door de MSI H87-G43 worden ondersteund

pakketinhoud:
– Moederbord (MSI H87-G43)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)

Chipset
Intel® H87 Express Chipset

Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory/ 1066 modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz or 2560×1600@60Hz
* Support for HDMI 1.4a version.
Support for up to 3 displays at the same time
Maximum shared memory of 1GB

Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek^® 8111E Gigabit LAN controller

Expansion Slots
– 1 x PCIe 3.0 x16 slot
– 1 x PCIe 2.0 x16 slot
–  PCI_E4 supports up to PCIe 2.0 x4 speed
– 2 x PCIe 2.0 x1 slots
– 3 x PCI slots

Chipset:
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB Chipset:
– 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
– 10 x USB 2.0 ports (6 ports on the back panel, 4 ports available through the internal USB connectors)

Internal I/O Connectors
– ATX 24-Pin power connector
– 8-pin ATX 12V power connector
– 2 x 4-pin CPU fan connectors
– 3 x 4-pin system fan connectors
– 1 x Clear CMOS jumper
– 6 x Serial ATAIII connectors
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
– 1 x Serial port connector
– 1 x Parallel port connector
– 2 x System panel connectors
– 1 x Trusted Platform Module (TPM) header
– 1 x Front Panel Audio connector
– 1 x Chassis Intrusion connector

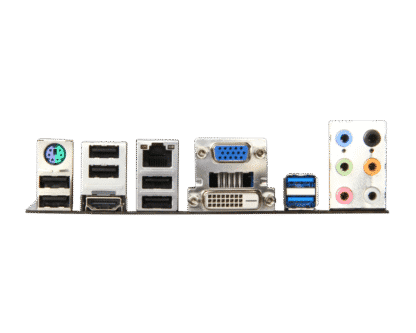

Back Panel Connectors
– 1 x PS/2 keyboard/ mouse combo port
– 6 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
– 1 x VGA port, supporting a maximum resolution of 1920×1200 @60Hz, 24bpp
– 1 x DVI-D port, supporting a maximum resolution of 1920×1200 @60Hz, 24bpp
– 1 x HDMI™ port, supporting a maximum resolution of 4096×2160 @24Hz, 24bpp/ 2560×1600 @60Hz, 24bpp/ 1920×1080 @60Hz, 36bpp

BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Operating System
Support for Windows 10/8.1/8/7

Form Factor
ATX Form Factor; 30.5cm x 24.4cm
