Product informatie

Kenmerken: Moederbord | ATX | Socket 1155 | 4x DDR3 | SATA-300 | PCI | PCI-e 3.0 x16 | LAN

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

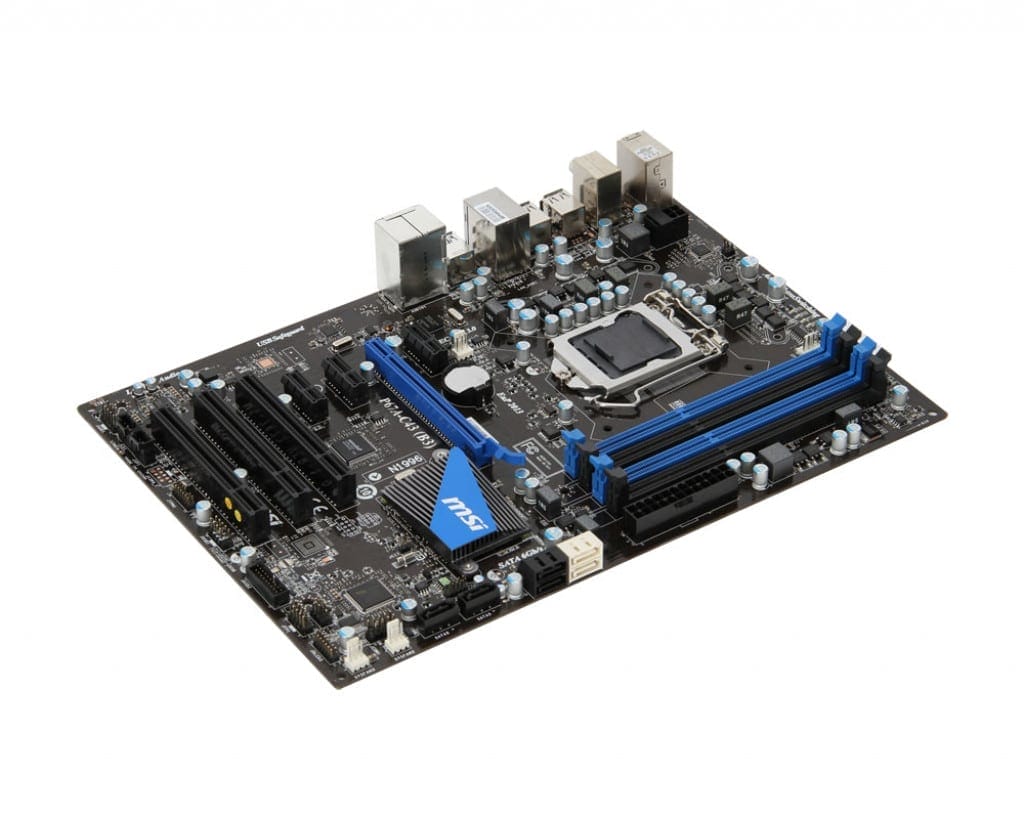

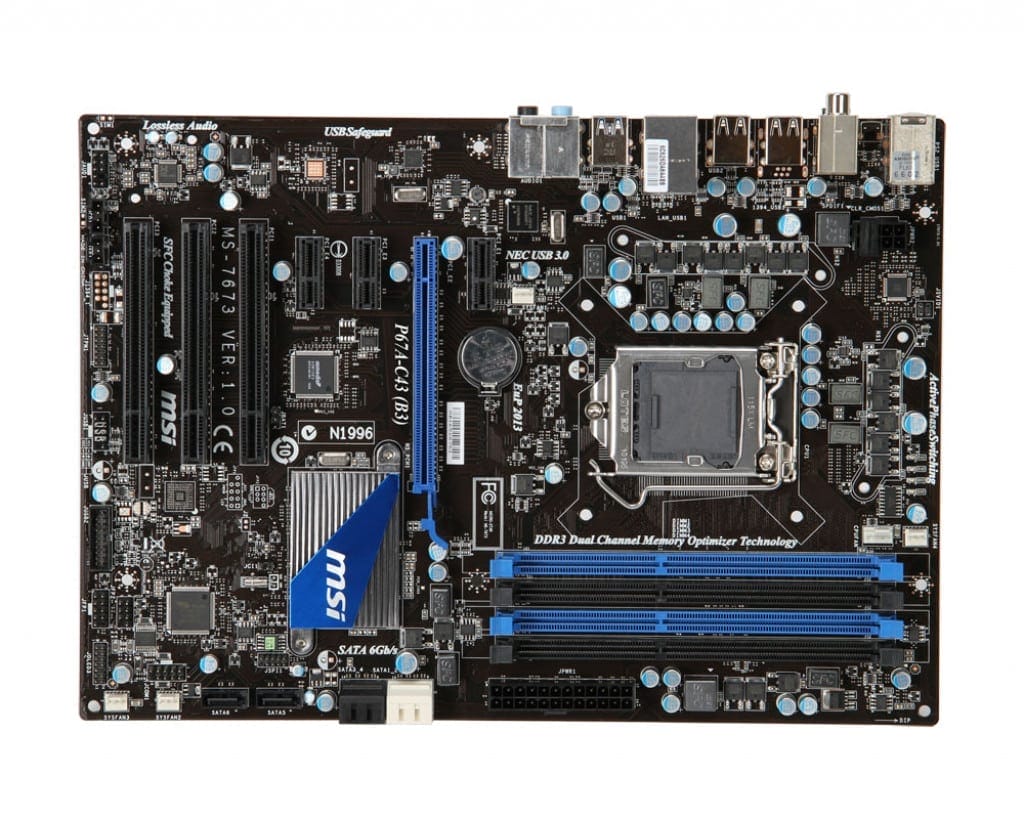

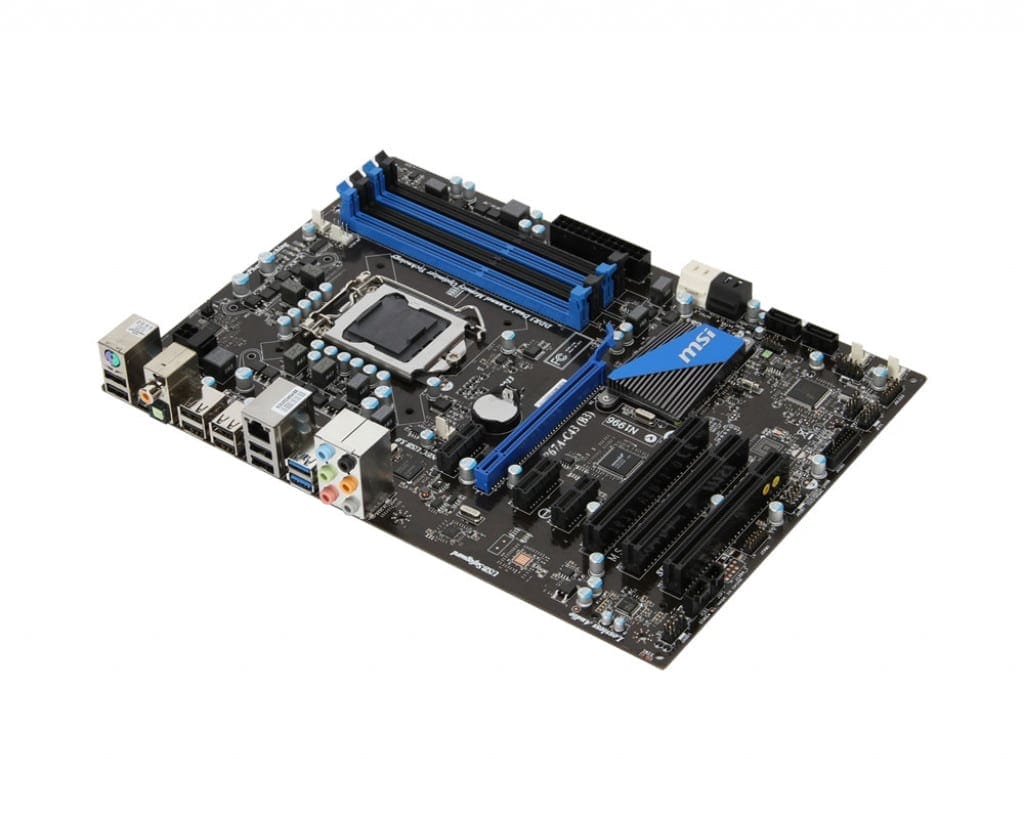

Product: MSI P67A-C43
Socket: Socket 1155
Categorie: moederborden
Merk: MSI
Staat: Used – BIOS bijgewerkt naar de nieuwste versie
EAN: 4719072217266
SKU: 7673-021R, P67A-C43 (B3), P67A-C43-(B3)
Garantie: 6 maanden

Inhoud pakket:
– Moederbord (MSI P67A-C43)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

CPU
Intel® Socket 1155 for 3^rd/2^nd Generation Core™ i7/Core™ i5/Core™ i3 Processors

Chipset
Intel® P67 (B3) Chipset

Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/2133*(OC) DRAM, 32GB Max
– Supports 1GB/ 2GB/ 4GB/ 8GB DRAM size
– Supports Dual channel mode

Expansion Slots
• 1 PCI Express gen2 x16 slot
• 3 PCI Express gen2 x1 slots
• 3 32-bit v2.3 master PCI bus slots
– Support 3.3v/5v PCI bus interface

Storage

• SATAII controller integrated in Intel® P67 (B3) chipset
– Up to 3Gb/s transfer speed.
– Supports four SATAII ports (SATA3~6) by P67 (B3) PCH
– SATA3~6 ports support RAID 0/1/5/10 mode by Intel P67 (B3) PCH

• SATAIII controller integrated in Intel® P67 (B3) chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by P67 (B3) PCH
– SATA1~2 ports support RAID 0/1 mode by Intel P67 (B3) PCH

USB 3.0
 2 USB 3.0 ports by NEC® uPD720200F1

LAN
Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek^® 8111E

Audio
• Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec

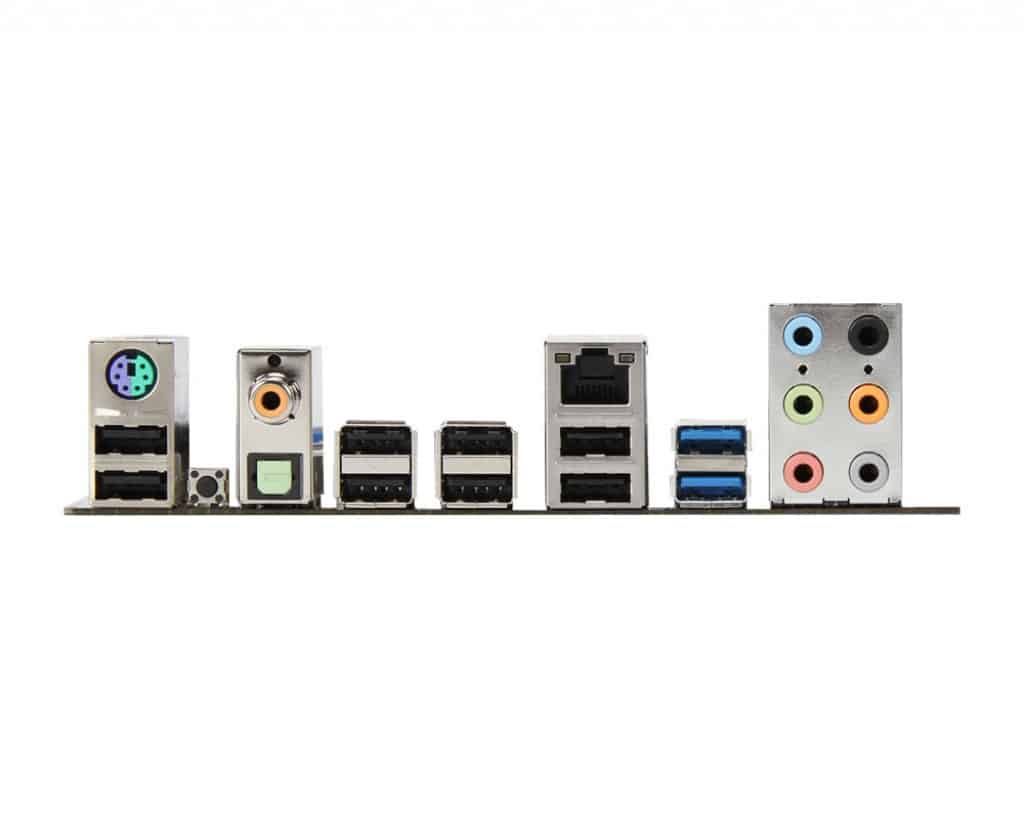

Back I/O Ports
– 1 x PS/2 Mouse/Keyboard port
– 8 x USB 2.0 ports
– 1 x Clear CMOS button
– 1 x Coaxial SPDIF port
– 1 x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 2 x USB 3.0 ports
– 1 x 6 in 1 audio jack

Internal I/O Ports
– ATX 24-Pin power connector
– 8-pin ATX 12V power connector
– CPU x 1 / System x 4 FAN connectors
– CD-in connector
– Front panel audio connector
– Front panel connector
– 1 x chasis intrusion connector
– 2 x USB 2.0 connectors
– 4 x Serial ATAII connectors
– 2 x Serial ATAIII connectors
– 1 x Clear CMOS jumper
– 1 x SPDIF-out connector
– 1 x TPM module connector
– 1 x Serial port connector

Accessories
I/O Shield

Form Factor
ATX Form Factor
30.5cm(L) x 21.5cm(W)

BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
