MSI PH67S-C43 Socket 1155 moederbord

Snelle levering
69,95

Merk: MSI
Model: PH67S-C43
Socket: Socket 1155
Chipset: Intel H67
Geheugen:
 4x DDR3 (32GB Max)
Form-Factor: ATX
EAN: 4719072217389
SKU: 7673-041R

Uitverkocht

Artikelnummer: ph67-C43 Categorieën: , Tags: , ,

Product informatie

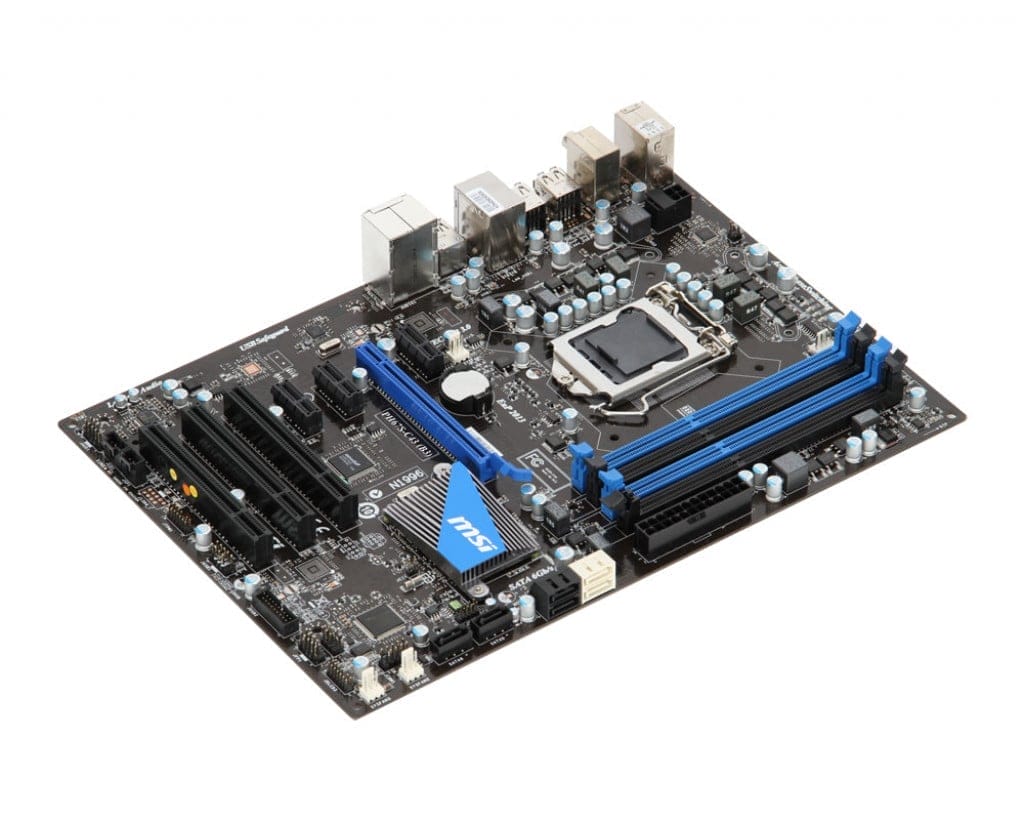

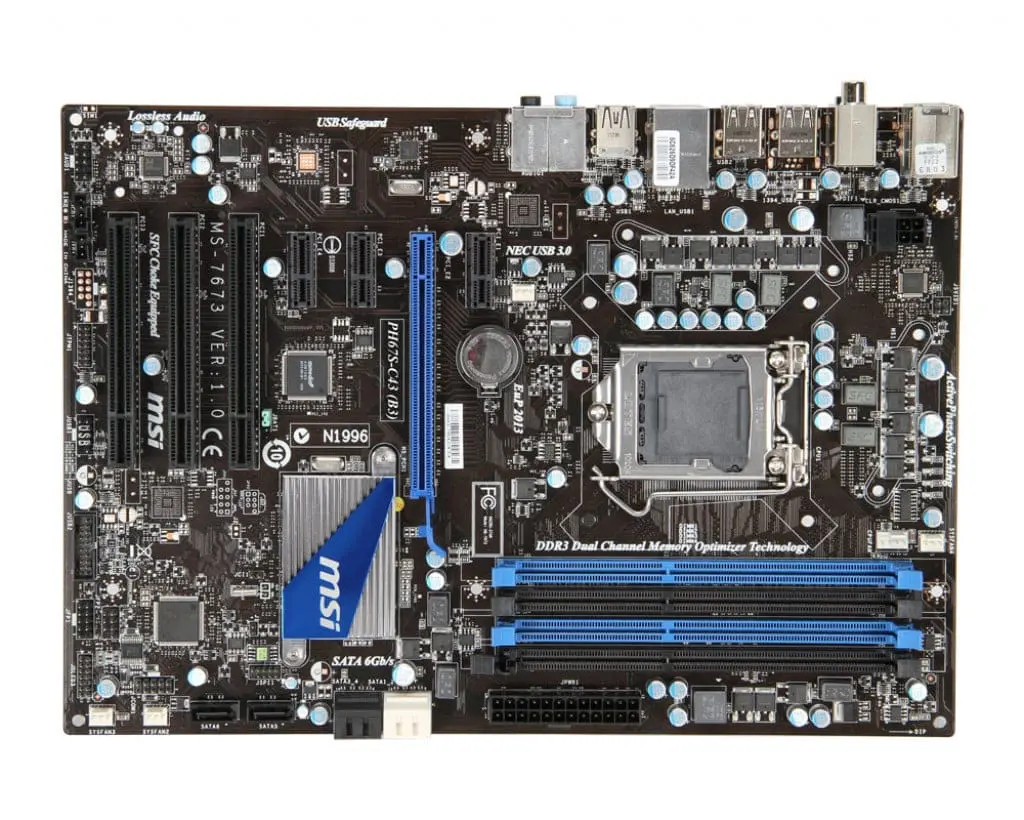

Het MSI PH67S-C43  Socket 1155 moederbord is een ATX moederbord welke is voorzien van 4 DDR3 geheugensloten. De MSI PH67S-C43 Socket 1155 moederbord is een moederbord voorzien van de Intel H67 Chipset, met 4 geheugensloten.

Korte Specificaties:

Moederbord – Socket LGA1155 | ATX | Intel H67 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | 3x PCI |  PCI-e 2.0 x1 | PCI-e 2.0 x16 | Sata 3.0

Product: MSI PH67S-C43 Socket 1155;
Categorie: Intel socket 1155 Moederborden;
Merk: MSI;
EAN: 4719072217389
SKU: 7673-041R
Staat: Gebruikt – Bios bijgewerkt naar de laatste versie
Garantie:
6 Maanden

Processoren die ondersteund worden door de MSI PH67S-C43
Drivers voor de MSI PH67S-C43

Uitgebreide product specificaties:


CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology


Chipset
– Intel® H67
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.


Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Audio
Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec


LAN
–  Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.


Slots
– 1 PCI Express gen2 x16 slot
– 3 PCI Express gen2 x1 slots
– 3 32-bit v2.3 master PCI bus slots.
– Support 3.3v/5v PCI bus interface.


SATA
SATAII controller integrated in Intel® H67 (B3) chipset
– Up to 3Gb/s transfer speed.
– Supports four SATAII ports (SATA3~6) by H67 (B3)
– SATA3~6 ports support RAID 0/1/5/10 mode by Intel H67 (B3)
SATAIII controller integrated in Intel® H67 (B3) chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by H67 (B3)
– SATA1~2 ports support RAID 0/1 mode by Intel H67 (B3)


Connector
– ATX 24-Pin power connector
– 8-pin ATX 12V power connector
– CPU x 1 / System x 4 FAN connectors
– CD-in connector
– Front panel audio connector
– Front panel connector
– 1 x chasis intrusion connector
– 2 x USB 2.0 connectors
– 4 x Serial ATAII connectors
– 2 x Serial ATAIII connectors
– 1 x Clear CMOS jumper
– 1 x SPDIF-out connector
– 1 x TPM module connector
– 1 x Serial port connector

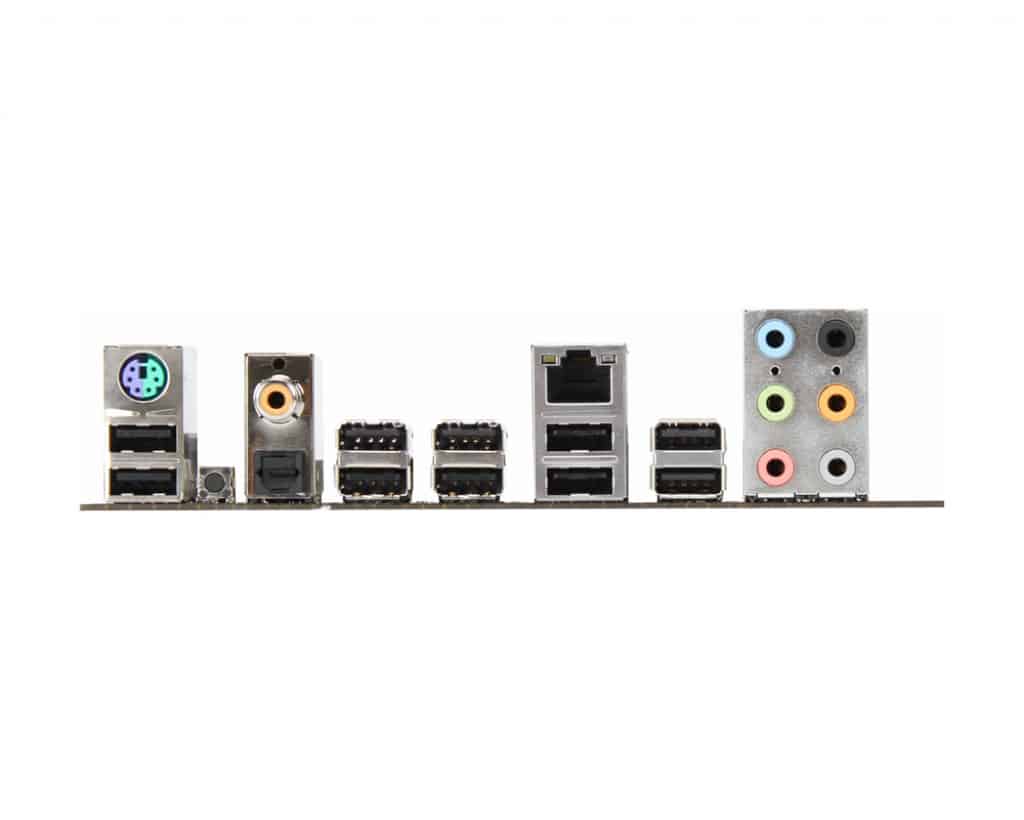

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard port
– 10 x USB 2.0 ports
– 1 x Clear CMOS button
– 1 x Coaxial SPDIF port
– 1 x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack


Accessories
– I/O Shield


Form Factor
– ATX Form Factor


OS

– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.

Specificaties

Gewicht1 kg
Intel

Socket 1155

Merk

MSI

Chipset

Intel H67

Formaat

ATX

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

32 GB

Aansluitingen

USB 2.0

Opslag interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Intel Socket 1155

Beoordelingen

Beoordelingen

Er zijn nog geen beoordelingen.

Enkel ingelogde klanten die dit product gekocht hebben, kunnen een beoordeling schrijven.

Voordelen en nadelen
Volgens onze computer expert

  • 4 DDR3 Geheugensloten
