Product informatie

MSI Z87-G45 GAMING : moederbord |ATX | Intel Socket 1150 | Z87 Chipset | 4x DDR3 (max. 32GB) | PCI-e 2.0 x1 | PCI-e 3.0 x16  | SATA-600 | USB 2.0 | USB 3.0 | LAN | HDMI | DVI-D | VGA (D-Sub)

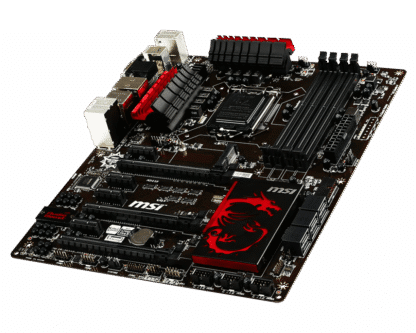

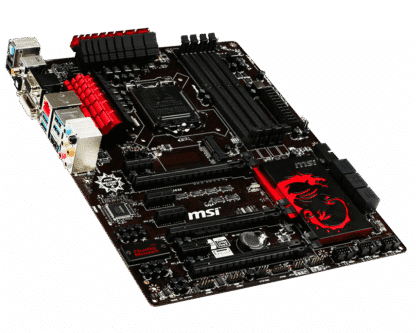

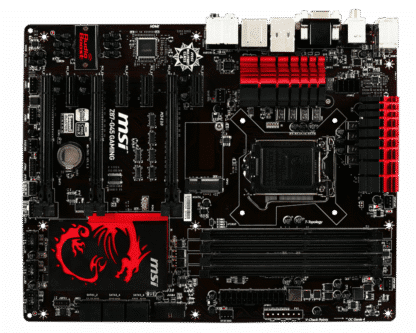

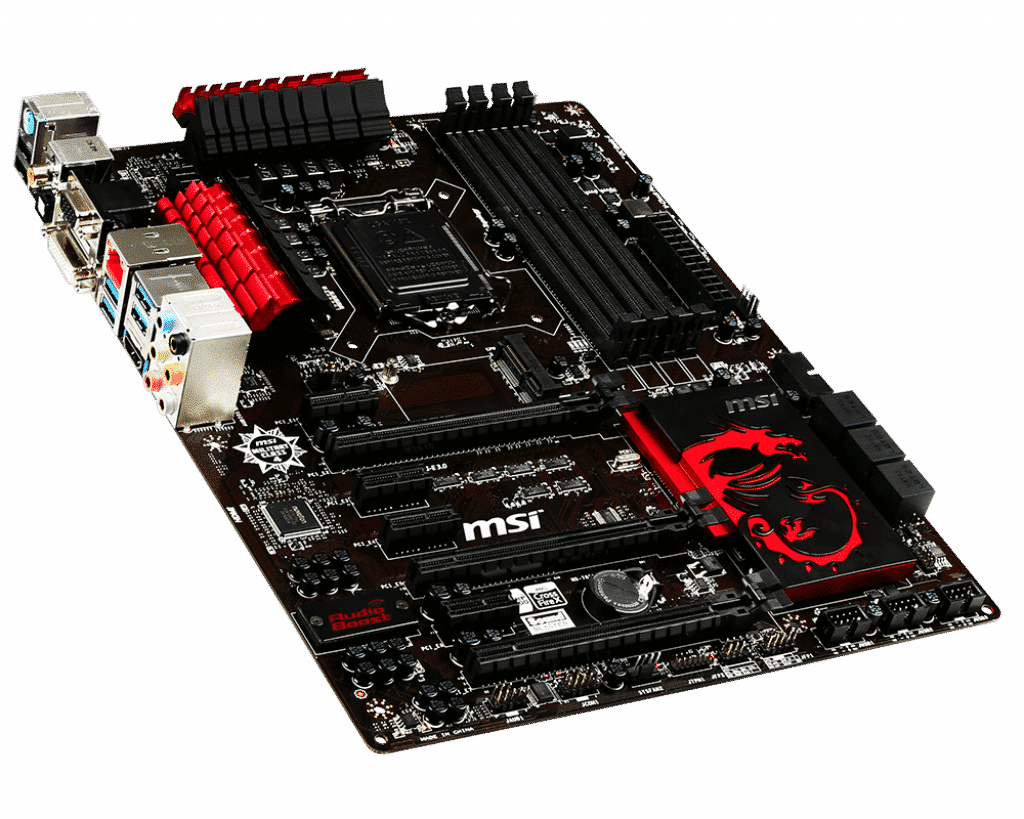

Product: MSI Z87-G45 GAMING
Socket: Socket 1150
Merk: MSI
Staat: Used
EAN: 0816909106909, 4719072295363
SKU:7821-001R, Z87-G45 GAMING
Garantie: 6 maanden

Drivers voor de MSI Z87-G45 GAMING
Processoren ondersteund door de MSI Z87-G45 GAMING

pakketinhoud:
– Moederbord (MSI Z87-G45 GAMING)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

CPU
4th Generation Intel^® Core™ i7 / Core™ i5 / Core™ i3 / Pentium^® / Celeron^® processors for LGA 1150 socket

Chipset
Intel^® Z87 Express Chipset

Memory
• Support four DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz DRAM, 32GB Max
– Dual channel memory architecture
– Supports Intel^® Extreme Memory Profile (XMP)
– Supports non-ECC, un-buffered memory

Audio
• Realtek^® ALC1150 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output

LAN
• 1x Killer E2205 Gigabit LAN controller

Multi-GPU
• Supports 3-Way AMD CrossFire^TM Technology*
• Supports 2-Way NVIDIA^® SLI^TM Technology
* Supports Windows 7 and Windows 8.

Expansion Slots
• 3 x PCIe 3.0 x16 slots
– The operating mode will be x16/ x0/ x0, x8/ x8/ x0, or x8/ x4/ x4. Please always install expansion card into the PCI_E2 “First”.
• 4 x PCIe 2.0 x1 slots

Storage Interface

• SATAIII controller integrated in Intel^® Z87 chipset
– 1 x mSATA port
– Up to 6Gb/s transfer speed.
– Supports one SATA ports (SATA1~6) by Z87

• RAID
– SATA1~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel Z87
* The SATA6 port will be unavailable when install a SSD in the mSATA port.

USB
• 6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
• 8 x USB 2.0 ports (2 ports on the back panel, 6 ports available through the internal USB connectors*)

Internal I/O Connectors
– ATX 24-Pin power connector
– 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
– 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
– 2 x 4-pin CPU fan connectors
– 3 x 4-pin system fan connectors
– 1 x Trusted Platform Module (TPM) header
– 1 x Serial port connector
– 1 x Front Panel Audio connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 1 x V-Check Points Set (7x V-Check connectors)
– 1 x Clear CMOS jumper

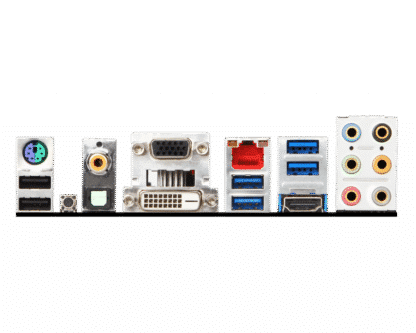

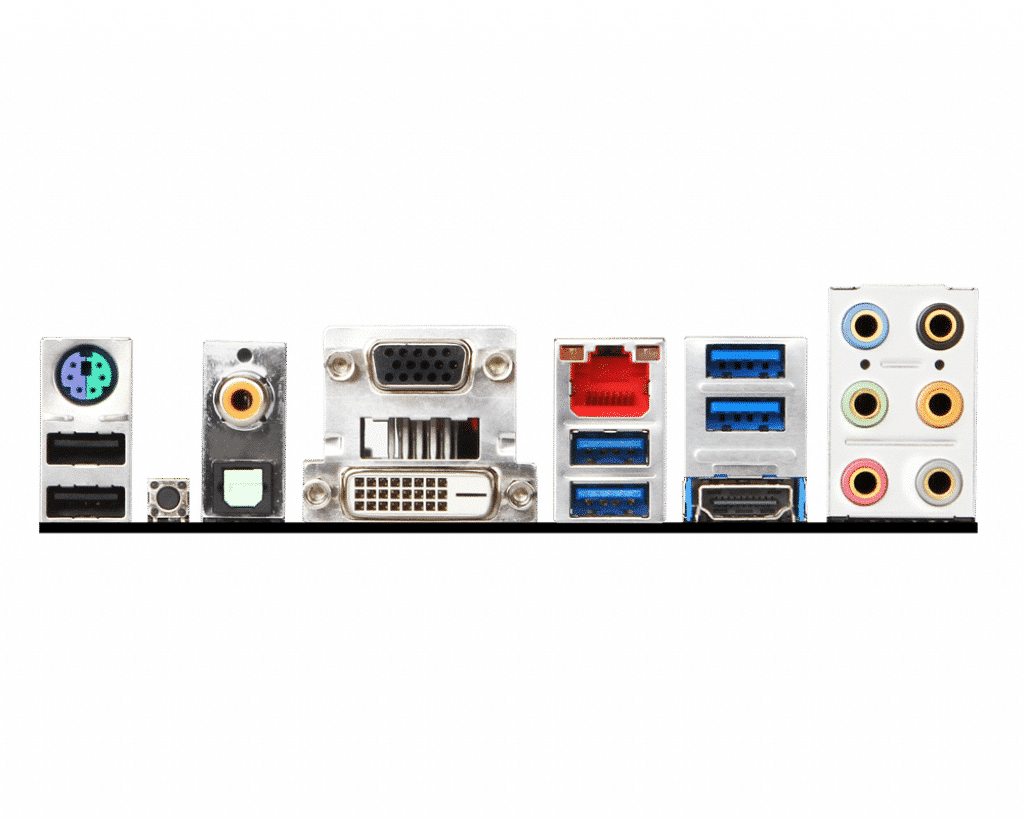

Back Panel Connectors
– 1 x PS/2 keyboard/mouse combo port
– 1 x Clear CMOS button
– 1 x Coaxial S/PDIF-out port
– 1 x Optical S/PDIF-out port
– 2 x USB 2.0 ports
– 4 x USB 3.0 ports
– 1 x RJ45 LAN jack
– 6 OFC audio jacks
– 1 x VGA port, supporting a maximum resolution of 1920×1200 @60Hz, 24bpp
– 1 x DVI-D port, supporting a maximum resolution of 1920×1200 @60Hz, 24bpp
– 1 x HDMI port, supporting a maximum resolution of 4096×2160 @24Hz, 24bpp/ 2560×1600@60Hz, 24bpp/ 1920×1080@60Hz, 36bpp

Operating System
Support for Windows 10 64-bit

Form Factor
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
