Product informatie

MSI Z97 Gaming 3 : moederbord |ATX | Intel Socket 1150 | Z97 Chipset | 4x DDR3 (max. 32GB) | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16  | PCI |  SATA-600 | M.2 Slot | USB 2.0 | USB 3.0 | LAN | HDMI | Displayport | DVI-D | VGA (D-Sub)

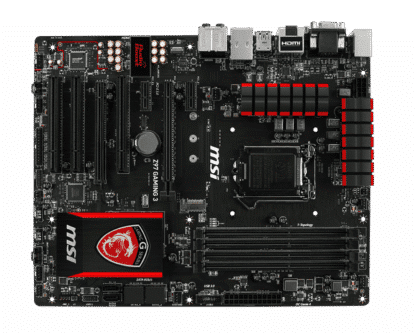

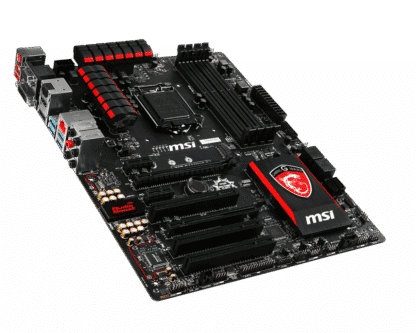

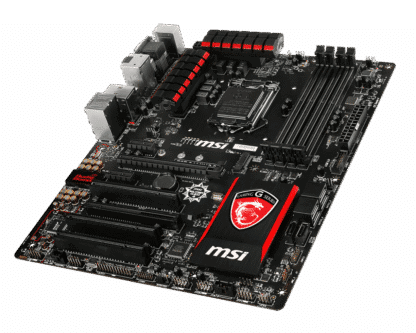

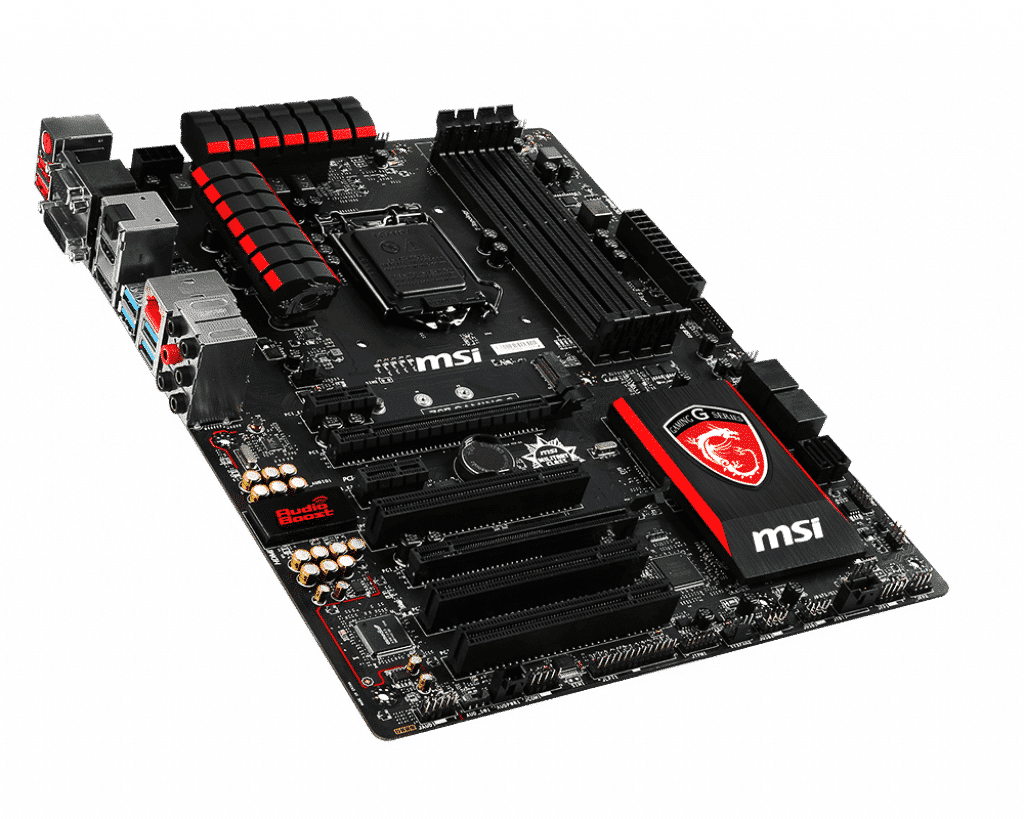

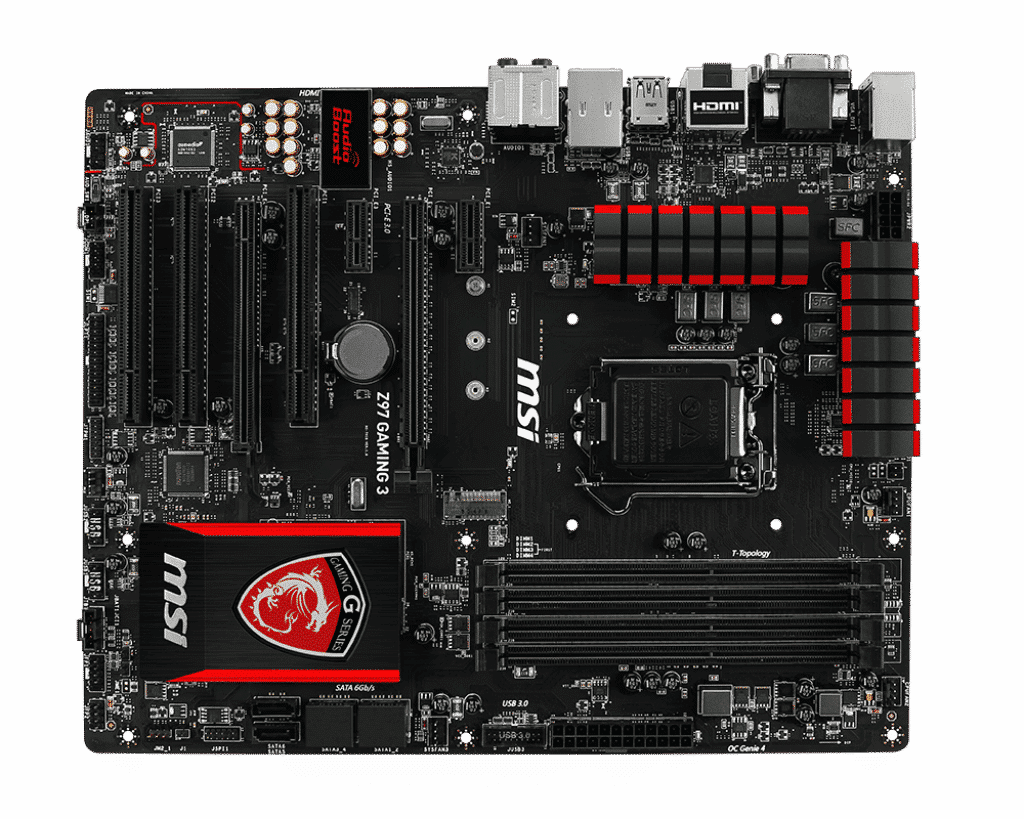

Product: MSI Z97 Gaming 3
Socket:
Socket 1150
Merk: MSI
Staat: Used
EAN: 0816909106909, 4719072295363
SKU:
7821-001R, Z87-G45 GAMING
Garantie: 6 maanden


Drivers voor de MSI Z97 Gaming 3
Processoren ondersteund door de MSI Z97 Gaming 3


pakketinhoud:
– Moederbord (MSI Z97 Gaming 3)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


CPU
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket


Chipset
Intel® Z97 Express Chipset


Memory

• Support four DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*/3100*/3200*/3100*/3200*/3300*(*OC) MHz DRAM, 32GB Max
– Dual channel memory architecture
– Supports Intel® Extreme Memory Profile (XMP)
– Supports non-ECC, un-buffered memory


Audio
• Realtek® ALC1150 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output


LAN
• 1x Killer E2205 Gigabit LAN controller


Multi-GPU
• Supports 2-Way AMD CrossFire™ Technology*
* Supports Windows 7 and Windows 8/8.1.


Expansion Slots
• 1 x PCIe 3.0 x16 slot (PCI_E2, supports x16 speed)
• 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 speed)*
• 2 x PCIe 2.0 x1 slots
• 3 x PCI slots
* The PCIe x1 slots (PCI_E1, PCI_E3) will be unavailable when installing an expansion card in the PCI_E4 slot.


Storage Interface

• Intel Z97 Express Chipset
– 6 x SATA 6Gb/s ports (SATA1~6)
– 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen2 x2 & SATA mode*
– M.2 port supports M.2 SATA 6Gb/s module
– M.2 port supports M.2 PCIe module up to 10Gb/s speed**
– M.2 port supports 4.2cm/ 6cm/ 8cm length module
– Supports RAID 0, RAID1, RAID 5 and RAID 10***
– Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology****

* The SATA5 and SATA6 ports will be unavailable when installing a module in the M.2 port.

** M.2 PCIe interface only supports UEFI option ROM, NOT support legacy option ROM.
*** M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.
**** Supports Intel Core processors on Windows 7 and Windows 8/ 8.1


USB
• 6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
• 6 x USB 2.0 ports (2 ports on the back panel, 6 ports available through the internal USB connectors*)


Internal I/O Connectors

-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-6 x SATA 6Gb/s connectors
-2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
-1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
-2 x 4-pin CPU fan connectors
-3 x 4-pin system fan connectors
-1 x Clear CMOS jumper
-1 x Front panel audio connector
-2 x System panel connectors
-1 x TPM module connector
-1 x Serial port connector
-1 x Parallel port connector
-1 x Chassis Intrusion connector
-1 x Direct audio power connector
-1 x Audio power switch

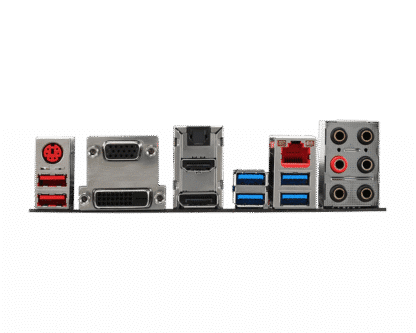

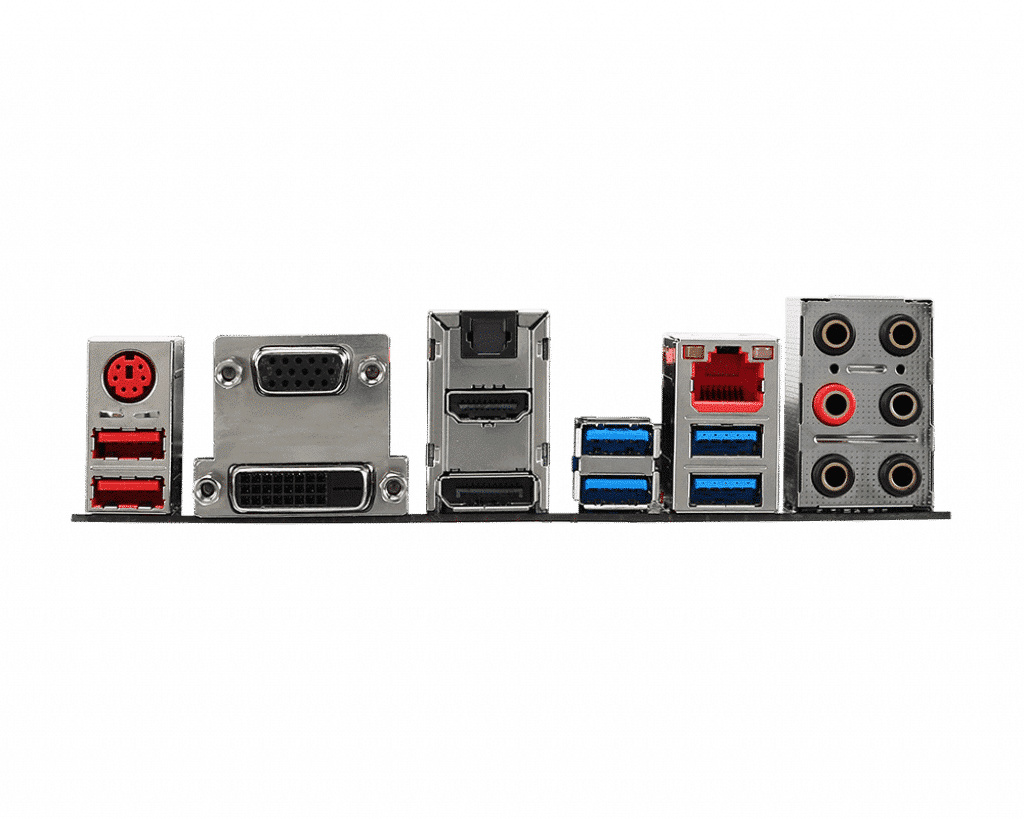

Back Panel Connectors
– 1 x PS/2 keyboard/ mouse combo port
– 1 x LAN (RJ45) port
– 2 x USB 2.0 ports
– 4 x USB 3.0 ports
– 1 x VGA port, supporting a maximum resolution of 1920×1200@60Hz
– 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz, 2560×1600@60Hz
– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@24Hz, 2560×1600@60Hz, 3840×2160@60Hz,1920×1200@60Hz
– 6 x OFC audio jacks
– 1 x Optical S/PDIF OUT connector


Operating System
Support for Windows 10 64-bit


Form Factor
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Specificaties

Intel

Socket 1150

Merk

MSI

Formaat

ATX

Chipset

Intel Z97

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), Displayport, DVI-D, Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.0

Opslag interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

Z97-GAMING-3

Geschikt voor

Regulier gebruik

Bijzonderheden

Onboard Audio

Lengte

30.5 cm

Breedte

24.4 cm

Pakketinhoud

Moederbord en I/O-Shield

MSI Z97 Gaming 3 Socket 1150 Moederbord

Snelle levering

Product: MSI Z97 Gaming 3
Socket:
Socket 1150
Merk: MSI
Staat: Used
EAN: 0816909106909, 4719072295363
SKU:
7821-001R, Z87-G45 GAMING
Garantie: 6 maanden


Artikelnummer: Z97-GAMING-3 Categorieën: , , Tags: , ,
