Product informatie

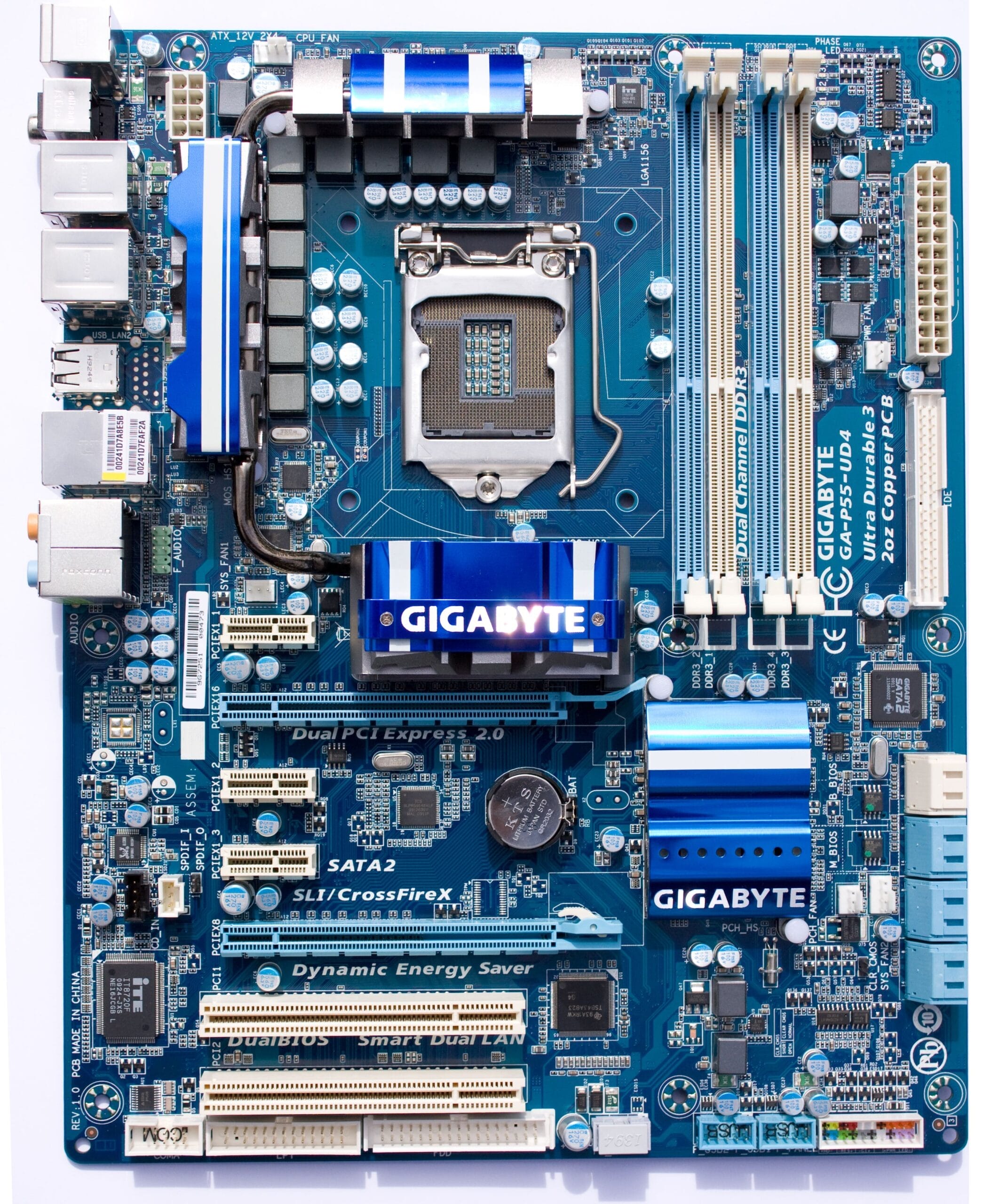

De Gigabyte GA-P55-UD5  is een ATX Socket 1156 moederbord gebaseerd op de Intel H55 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 4 slots beschikbaar zijn. In totaal heeft de Gigabyte GA-P55-UD5 6 Seriële ATA-aansluitingen voor harde schijven en SSD’s. De ingebouwde geluidskaart biedt 7.1-kanaals geluid en is gebaseerd op een Realtek ALC889A-chip.

Kenmerken: Moederbord | ATX | Socket 1156 | 2x DDR3 | 6x SATA-300 | PCI-e x16| PCI-e x4 | PCI | USB 2.0  | IEEE 1394a | Firewire 400 (6-pin) | eSata | 2x RJ45

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: Gigabyte GA-P55-UD5
Socket: Socket 1156
Categorie: moederborden
Merk: Gigabyte
Staat: Used – BIOS bijgewerkt naar de nieuwste versie
EAN:4719331827267
SKU: GA-P55-UD5
Garantie: 6 maanden

Inhoud pakket:
– Moederbord (Gigabyte GA-P55-UD5)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

CPU

– Support for an Intel^® Core™ i7 series processor/Intel^® Core™ i5 series processor /Intel^® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE’s website for the latest CPU support list.)
– L3 cache varies with CPU

Chipset

Intel^® P55 Express Chipset

Memory
– 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
– Dual channel memory architecture
– Support for DDR3 2200/1600/1333/1066/800 MHz memory modules
– Support for non-ECC memory modules
– Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
1 x PCI Express x16 slot, running at x8 (PCIEX8_1) (The PCIEX16_1 and PCIEX8_1 slots conform to PCI Express 2.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
2 x PCI Express x1 slots
2 x PCI slots

Storage
Chipset:
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD

2 x JMB362 chips:
2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
2 x SATA 3Gb/s connectors (GSATA2_2/GSATA2_3) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

LAN
2 x RTL8111D chips (10/100/1000 Mbit)
Support for Teaming
Support for Smart Dual LAN

Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater
Support for S/PDIF In/Out
Support for CD In

USB Ports
Integrated in the Chipset
Up to 14 USB 2.0/1.1 ports (10 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)

IEEE 1394
T.I. TSB43AB23 chip
Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Operating System Support
Windows® 8
Windows® 7

Back I/O Ports
1 x PS/2 keyboard/mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
2 x IEEE 1394a ports
8 x USB 2.0/1.1 ports
2 x eSATA/USB Combo connectors
2 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
10 x SATA 3Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x power fan header
1 x Chipset fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x serial port header
1 x clearing CMOS button
1 x power button
1 x reset button

Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver™ 2
Support Smart TPM
Support for Smart 6™
Support for Q-Share

Accessories
I/O Shield

BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Form Factor

ATX Form Factor;
30.5cm x 24.4cm
