Beschrijving
MSI Z87M Gaming : moederbord |ATX | Intel Socket 1150 | Z87 Chipset | 4x DDR3 (max. 32GB) | PCI-e 2.0 x1 | PCI-e 3.0 x16 | SATA-600 | USB 2.0 | USB 3.0 | ESata | LAN | 2x HDMI | Displayport

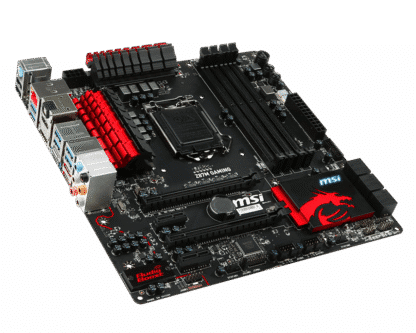

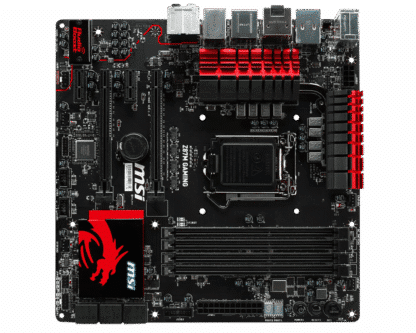

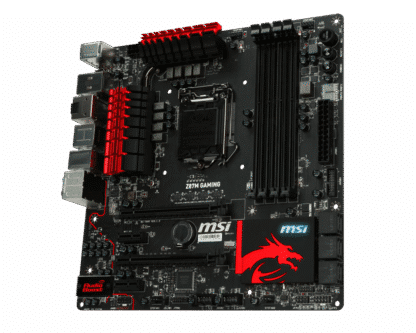

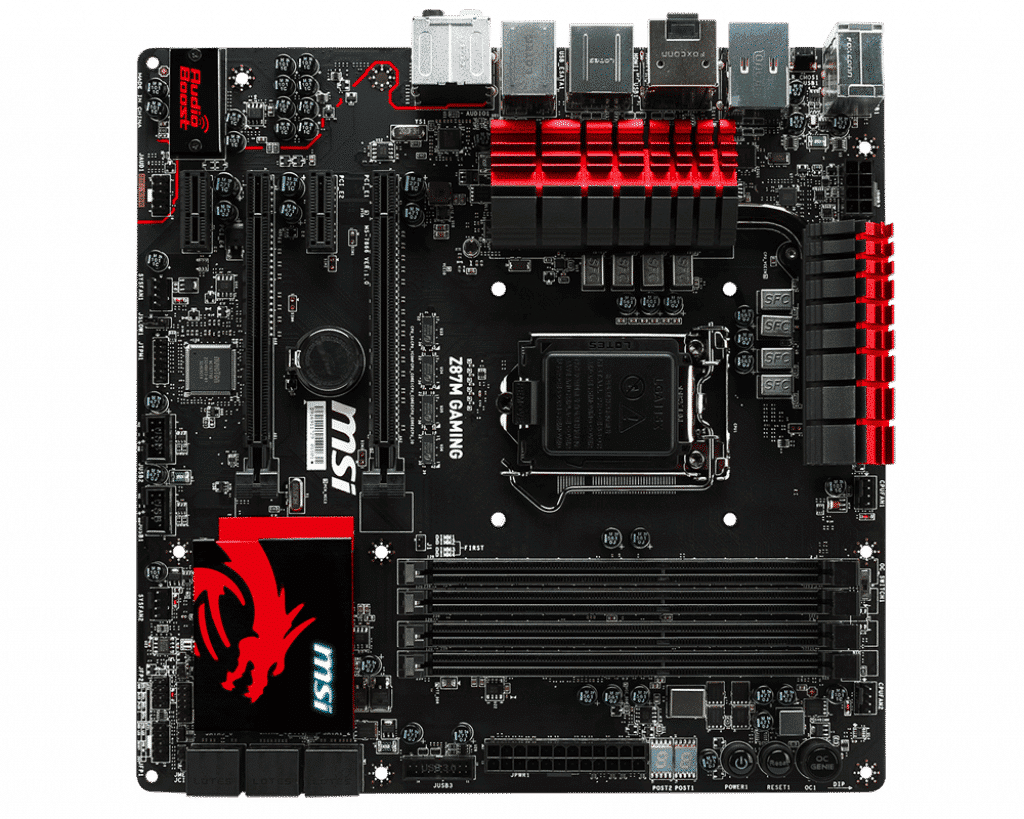

Product: MSI Z87M Gaming
Socket: Socket 1150
Merk: MSI
Staat: Used
EAN: 0719072318659, 0824142017333, 4719072318659
SKU: 7866-001R, Z87M Gaming
Garantie: 6 maanden
Drivers voor de MSI Z87M Gaming
Processoren ondersteund door de MSI Z87M Gaming
pakketinhoud:
– Moederbord (MSI Z87M Gaming)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
CPU
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Chipset
Intel® Z87 Express Chipset
Memory
• Support four DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz DRAM, 32GB Max
– Dual channel memory architecture
– Supports Intel® Extreme Memory Profile (XMP)
– Supports non-ECC, un-buffered memory
Audio
• Realtek® ALC1150 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output
LAN
• 1x Killer E2205 Gigabit LAN controller
Multi-GPU
• Supports 2-Way AMD CrossFire™ Technology*
* Supports Windows 7 and Windows 8/8.1.
Expansion Slots
• 2 x PCIe 3.0 x16 slots
• 2 x PCIe 2.0 x1 slots
Storage Interface
• SATAIII controller integrated in Intel® Z87 chipset
– Up to 6Gb/s transfer speed.
– Supports six SATA ports (SATA1~6) by Z87
– Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology*
** Supports Intel Core processors on Windows 7 and Windows 8.
• 2 x SATAIII controller integrated in ASMedia® ASM 1061 chipset
– Up to 6Gb/s transfer speed.
– Supports two e-SATA ports (back panel) by ASM 1061
• RAID
– SATA1~6 ports support Intel Rapid Storage Technology enterprise (RAID 0/1/5/10) by Intel Z87
USB
• Intel Z87 Express Chipset
– 6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
– 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
• RENESAS UPD720202 chipset
– 2 x USB 3.0 ports on the back panel
Internal I/O Connectors
– 1x 8-pin ATX 12V power connector
– 6x SATA 6Gb/s connectors
– 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
– 2x 4-pin CPU fan connectors
– 2x 4-pin system fan connectors
– 1x Front panel audio connector
– 2x System panel connectors
– 1 x TPM connector
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper
– 1 x Slow mode booting jumper
– 1 x Power button
– 1 x Reset button
– 1 x OC Genie button
– 1 x OC Genie mode switch
– 1 x 2-Digit Debug Code LED

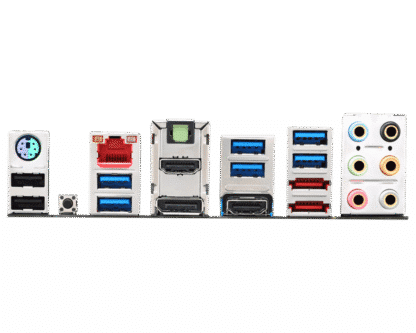

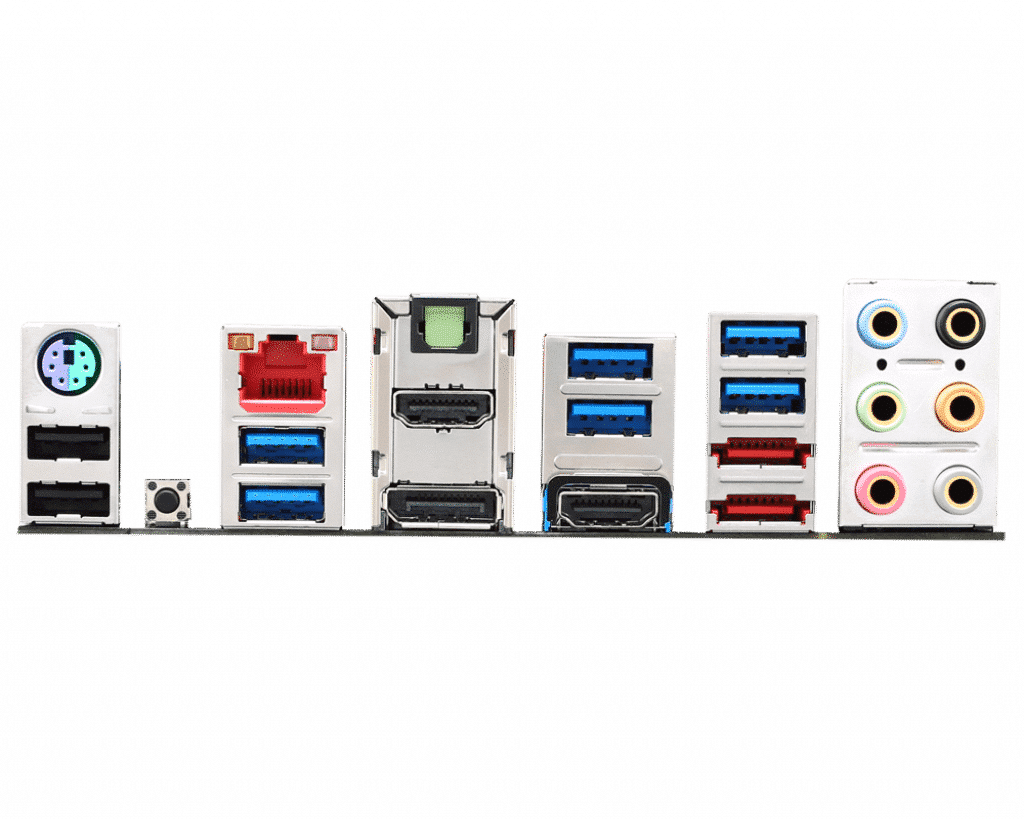

Back Panel Connectors
– 1 x PS/2 keyboard/ mouse combo port
– 2 x USB 2.0 ports
– 1 x Clear CMOS button
– 1 x LAN (RJ45) port
– 6 x USB 3.0 ports
– 1 x Optical S/PDIF OUT connector
– 2 x eSATA ports
– 6 x OFC audio jacks
– 2 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz, 24bpp/ 2560×1600@60Hz, 24bpp/ 1920×1080@60Hz, 36bpp
– 1 x DisplayPort with max. resolution up to 4096×2304@24Hz, 2560×1600@60Hz, 3840×2160@60Hz,1920×1200@60Hz
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
