ASRock 990FX Extreme6

Snelle levering
89,95

Merk: Asrock
Model: 990FX Extreme6
Socket: AM3+
Geheugen: 4x DDR3 (32GB Max)
Form-Factor: ATX
EAN: 4717677325096
SKU: 90-MXGWY0-A0UAYZ, 990FX EXTREME6

Uitverkocht

Artikelnummer: ASRock 990FX Extreme6 Categorieën: , Tags: , ,

Product informatie

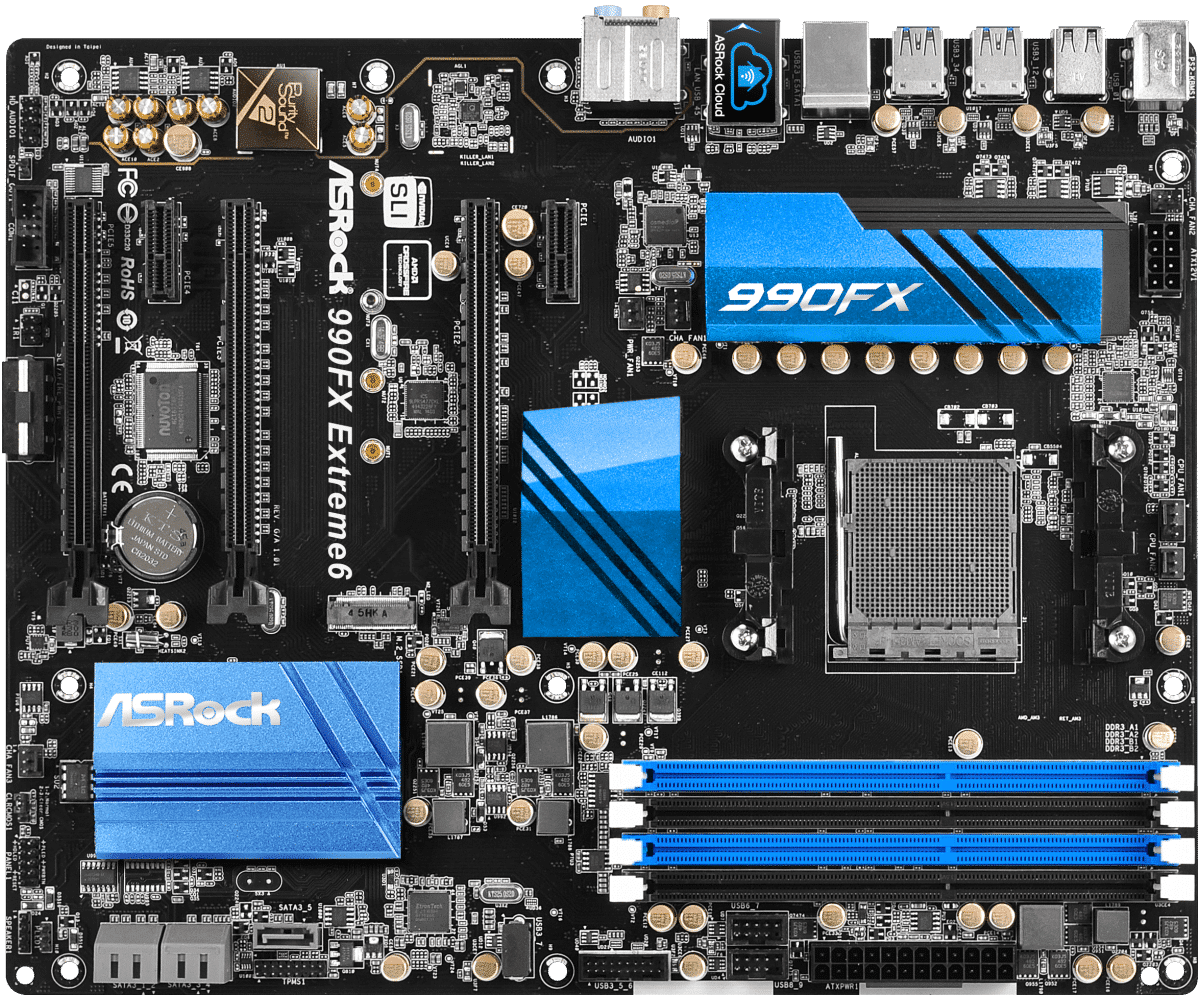

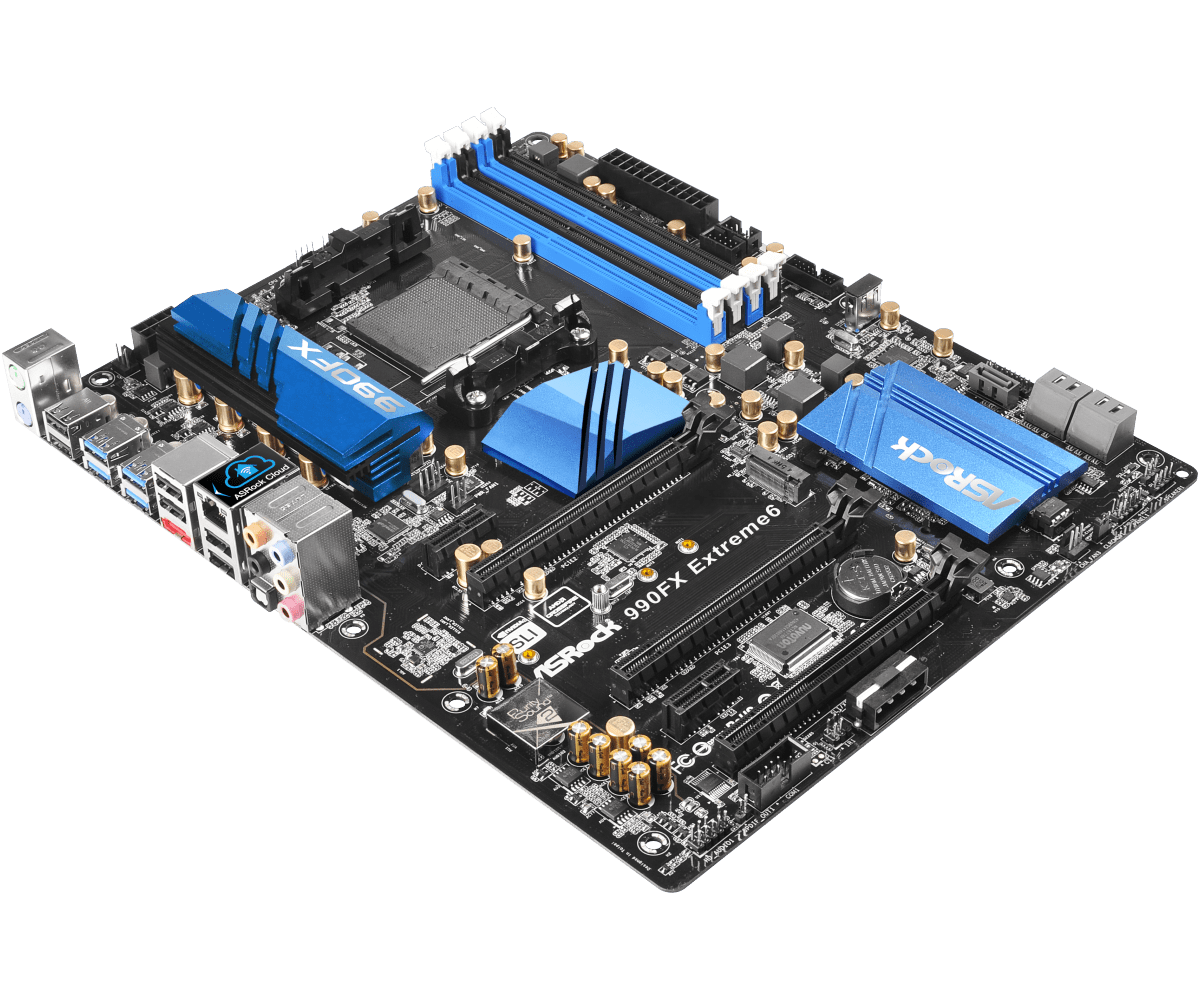

De ASRock 990FX Extreme6 is een ATX AM3 + moederbord gebaseerd op de Northbridge: AMD 990, Southbridge: AMD SB950 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 4 slots beschikbaar zijn. In totaal heeft de ASRock 990FX Extreme6 5 Seriële ATA-aansluitingen voor harde schijven en SSD’s. De ingebouwde geluidskaart biedt 7.1-kanaals geluid en is gebaseerd op een Realtek ALC1150-chip.

Kenmerken: Moederbord | ATX | Aansluitbus AM3 + | 4x DDR3 | 5x SATA-600 | M.2_SSD (NGFF) | PCI-e 2.0 x1 | PCI-e 2.0 x16 | 4x USB 2.0 | 2x USB 3.1 (Gen1, 5 Gb / s) | eSATA

Klik hier voor de ondersteunende CPU’s
Klik hier voor de stuurprogramma’s

Product: ASRock 990FX Extreme6
Verbinding: Socket AM3 +
Categorie: moederborden
Merk: ASRock
EAN: 4717677325096
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXGWY0-A0UAYZ, 990FX EXTREME6
Garantie:
6 maanden

Inhoud pakket:
– Moederbord (ASRock 990 Extreme6)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

Unique Feature
ASRock Full Spike Protection
ASRock Cloud


CPU
– Supports Socket AM3+ processors
– Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports 8-Core CPU
– Supports UCC feature (Unlock CPU Core)
– Digi Power design
– 8 + 2 Power Phase design
– Supports CPU up to 220W
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2600 MHz (5.2 GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport 3.0 (HT 3.0) Technology


Chipset
– Northbridge: AMD 990FX
– Southbridge: AMD SB950


Memory
– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
– Supports DDR3 2450(OC)/2100(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile Technology (AMP) up to AMP 2400

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– CPU, DRAM, NB, HT, CPU VDDA, PCIE VDDA, CPU NB Voltage multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Purity Sound™ 2
– Nichicon Fine Gold Series Audio Caps
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Qualcomm® Atheros® AR8171
– Supports Qualcomm® Atheros® Security Wake On Internet Technology
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 3 x PCI Express 2.0 x16 Slots (PCIE2/PCIE3 @ x16 mode; PCIE5 @ x4 mode)
– 2 x PCI Express 2.0 x1 Slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™ and SLI™
– 15μ Gold Contact in VGA PCIe Slots (PCIE2/PCIE3)


Storage
– 5 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug
– 1 x M.2_SSD (NGFF) Socket 3, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) (M.2_SSD (NGFF) Socket 3 is shared with the eSATA3 connector)


Connector
– 1 x IR Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x SPDIF Out Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Vertical Type A USB 3.1 Gen1 (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header by Etron EJ188 (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

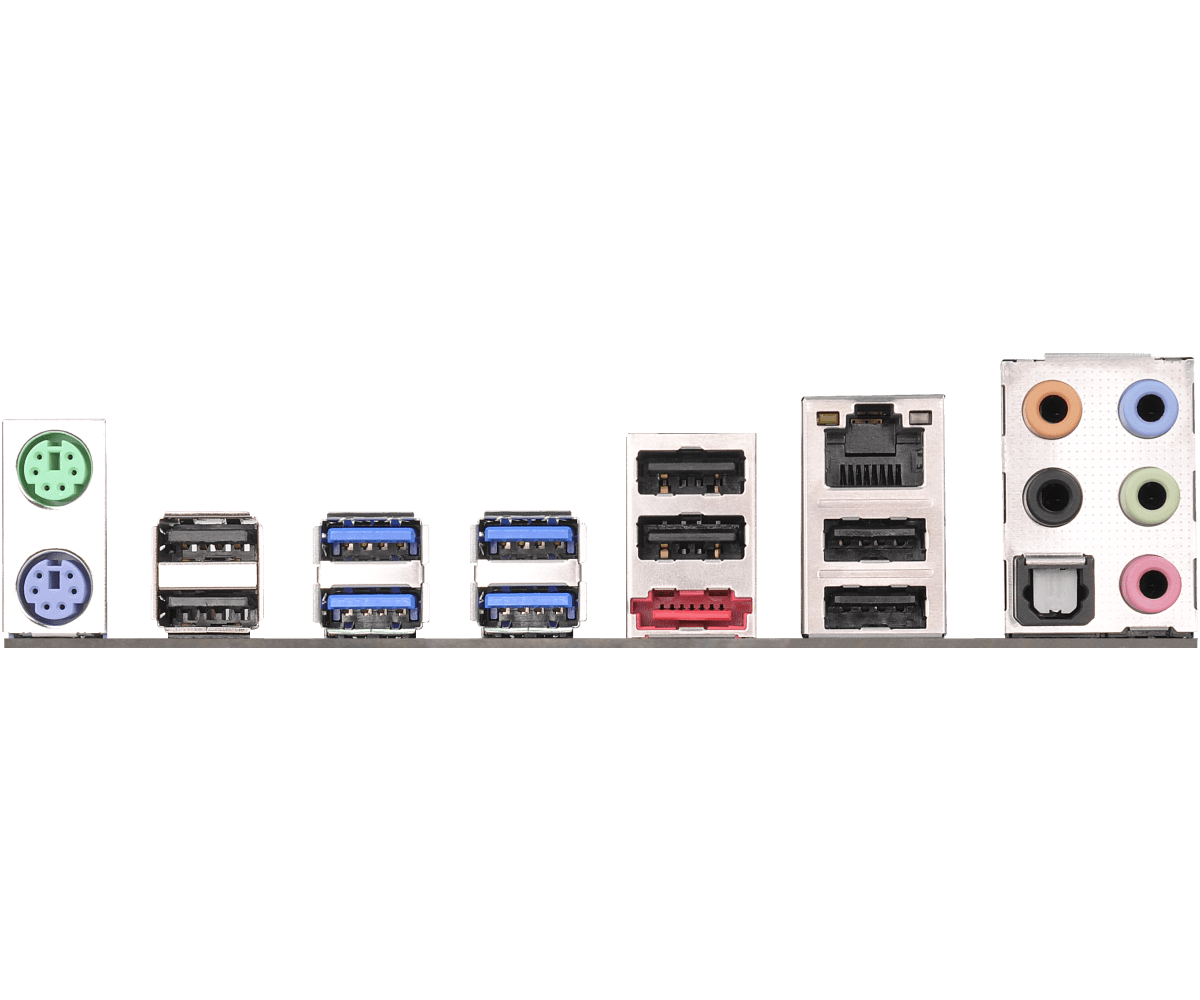

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Optical SPDIF Out Port
– 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (ASMedia Hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x eSATA3 Connector
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock Extreme Tuning Utility (AXTU)
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
– ASRock X-Boost

UEFI
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– Turbo 50 / Turbo 60 Overclocking


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Voltage


Form Factor
– ATX Form Factor
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– High Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
AMD

AM3(+)

Merk

Asrock

Chipset

Northbridge: AMD 990FX, Southbridge: AMD SB950

Formaat

ATX

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

64 GB

Aansluitingen

eSATA, USB 2.0, USB 3.1 Gen1

Opslag interfaces

M.2_SSD (NGFF) Socket 3, SATA3 6.0 Gb/s

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

AMD AM3(+)
