ASRock 990FX Extreme9

Gratis verzending
119,95

Merk: Asrock
Model: 990FX Extreme9
Socket: AM3+
Geheugen: 4x DDR3 (64GB Max)
Form-Factor: ATX
EAN: 4717677320695
SKU: 90-MXGPB0-A0UAYZ, 990FX EXTREME9

Uitverkocht

Artikelnummer: ASRock 990 Extreme9 Categorieën: , Tags: , ,

Product informatie

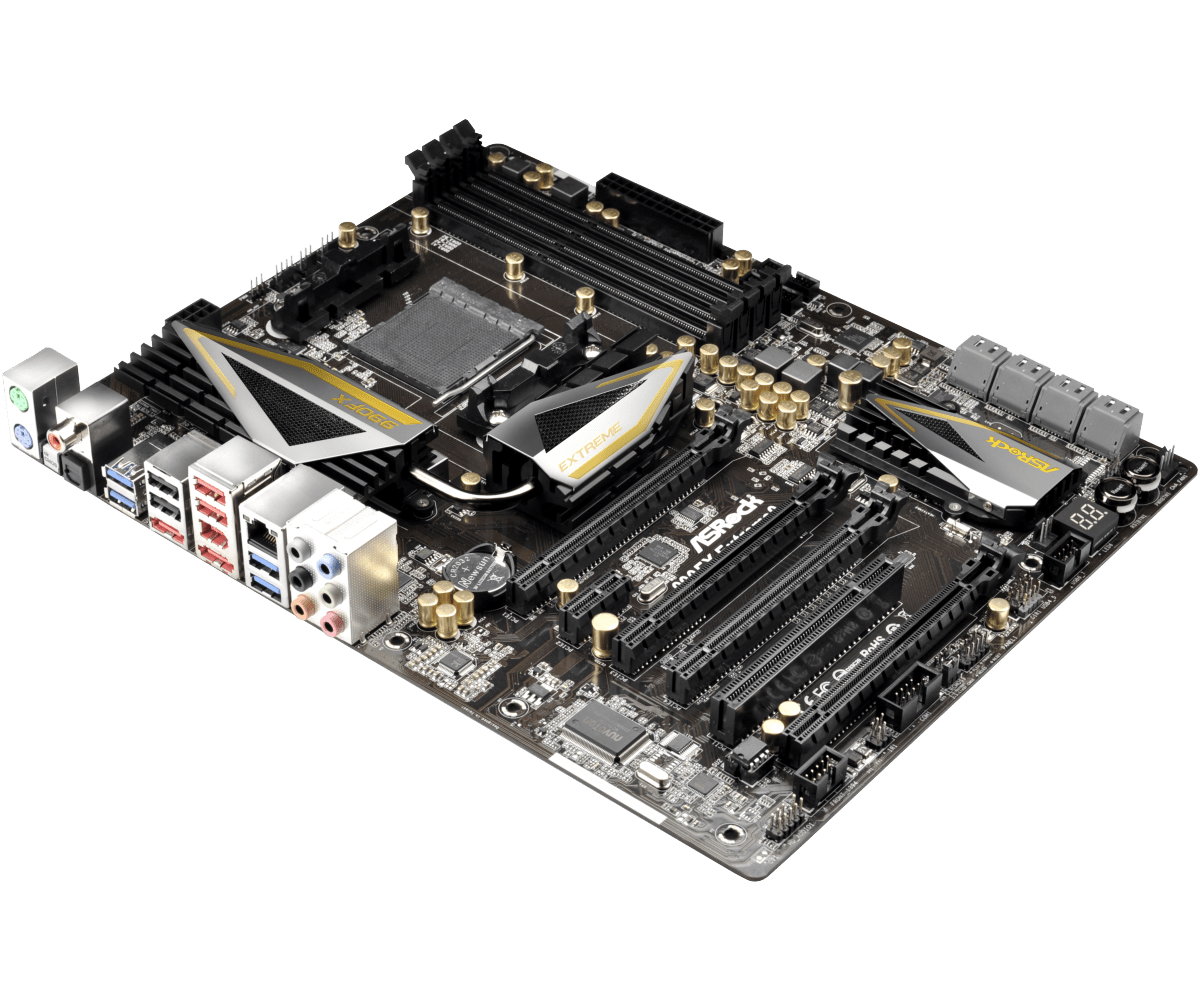

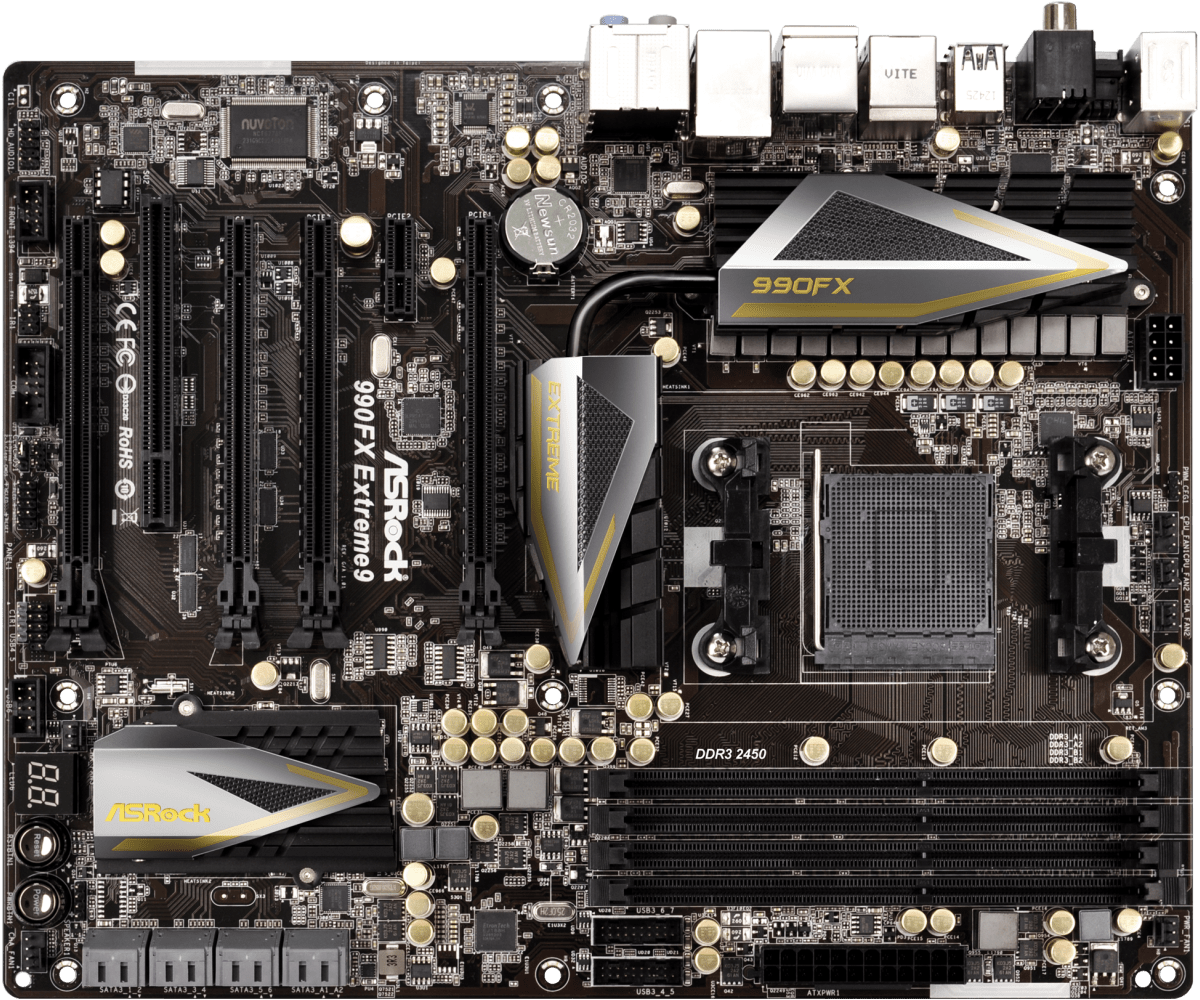

De ASRock 990FX Extreme9 is een ATX AM3+ moederbord gebaseerd op de Northbridge: AMD 990,  Southbridge: AMD SB950 chipset. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 4 sloten beschikbaar zijn. In totaal heeft de ASRock 990FX Extreme9 8 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC898 chip.

Eigenschappen: Moederbord | ATX | Aansluiting Socket AM3+ | 4x DDR3 | 8x SATA-600 | PCI | PCI-e 2.0 x1 |  PCI-e 2.0 x16 | 4x USB 2.0 | 2x USB 3.1 (Gen1, 5Gb/s) | eSATA3 |  IEEE 1394

Klik hier voor de ondersteunende CPU’s
Klik hier voor de stuurprogramma’s

Product: ASRock 990FX Extreme9
Aansluiting: Socket AM3+
Categorie: moederborden
Merk: ASRock
EAN: 4717677320695
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXGPB0-A0UAYZ, 990FX EXTREME9
Garantie:
6 maanden

pakketinhoud:
– Moederbord (ASRock 990FX Extreme9)
IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


CPU
– Support for Socket AM3+ processors
– Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports 8-Core CPU
– Supports UCC feature (Unlock CPU Core)
– Digi Power Design
– Advanced 12 + 2 Power Phase Design
– Dual-Stack MOSFET (DSM)
– Supports CPU up to 220W
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2600 MHz (5.2 GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport 3.0 (HT 3.0) Technology


Chipset
– Northbridge: AMD 990FX
– Southbridge: AMD SB950


Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 2450(OC)/2100(OC)/1600*/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile (AMP)

*1600MHz memory speed is supported depend on the AM3/AM3+ CPU you adopt. For detail CPU specification, please refer AMD official website.

**To reach the maximum 64GB of system memory, memory modules with 16GB capacity or above are required. ASRock will update the memory support list on the official website once these memory modules are available on the market.

***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB, SB Voltage Multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
– Premium Blu-ray audio support


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Intel® 82583V
– Supports Wake-On-LAN
– Supports PXE


Slots
– PCI Express 2.0 x 16 : 3 (x16 / x16 / 0 or x16 / x8 / x8) 1 (x4 mode)
– 1 x PCI Express 2.0 x1 slot
– 1 x PCI slot
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™


SATA3
– 6 x SATA3 6.0 Gb/s connectors by AMD SB950, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug functions
– 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions


USB 3.0
– 4 x Rear USB 3.1 Gen1 ports by Etron EJ188H, support USB 1.1/2.0/3.0 up to 5Gb/s
– 2 x Front USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports) by Etron EJ188H, support USB 1.1/2.0/3.0 up to 5Gb/s


Connector
– 8 x SATA3 6.0 Gb/s connectors
– 1 x IR header
– 1 x CIR header
– 1 x COM port header
– 1 x IEEE 1394 header
– 1 x Power LED header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 24 pin ATX power connector
– 8 pin 12V power connector (Hi-Density Power Connector)
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)
– 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports)
– 1 x Dr. Debug (7-Segment Debug LED)*
– 1 x Power Switch with LED
– 1 x Reset Switch with LED

*Check the Dr. Debug code list here.

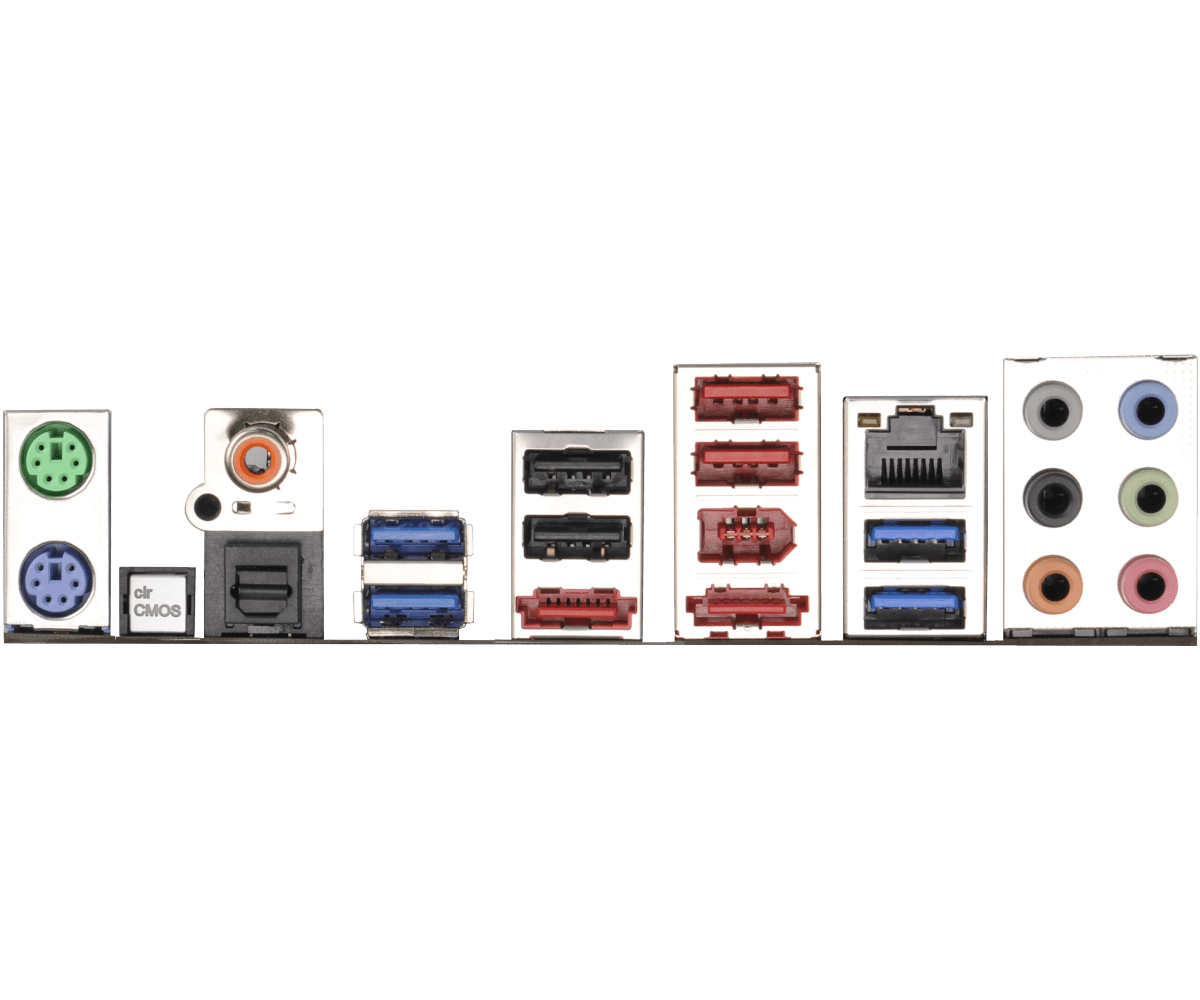

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Coaxial SPDIF Out Port
– 1 x Optical SPDIF Out Port
– 4 x Ready-to-Use USB 2.0 Ports
– 4 x Ready-to-Use USB 3.1 Gen1 Ports
– 2 x eSATA3 Connectors
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x IEEE 1394 Port
– 1 x Clear CMOS Switch with LED
– HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Unique Feature
– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock APP Shop
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Turbo 50 / Turbo 60 Overclocking
– Good Night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis, Power Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)
– Multiple Filter Cap (MFC) (Filters different noises by 3 different capacitors: DIP solid cap, POSCAP and MLCC)


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit


Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
AMD

AM3(+)

Merk

Asrock

Chipset

Northbridge: AMD 990FX, Southbridge: AMD SB950

Formaat

ATX

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

64 GB

Aansluitingen

eSATA, IEEE 1394 Port, USB 2.0, USB 3.1 Gen1

Opslag interfaces

SATA3 6.0 Gb/s

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

AMD AM3(+)
