Product informatie

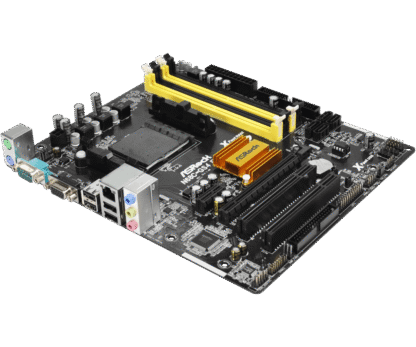

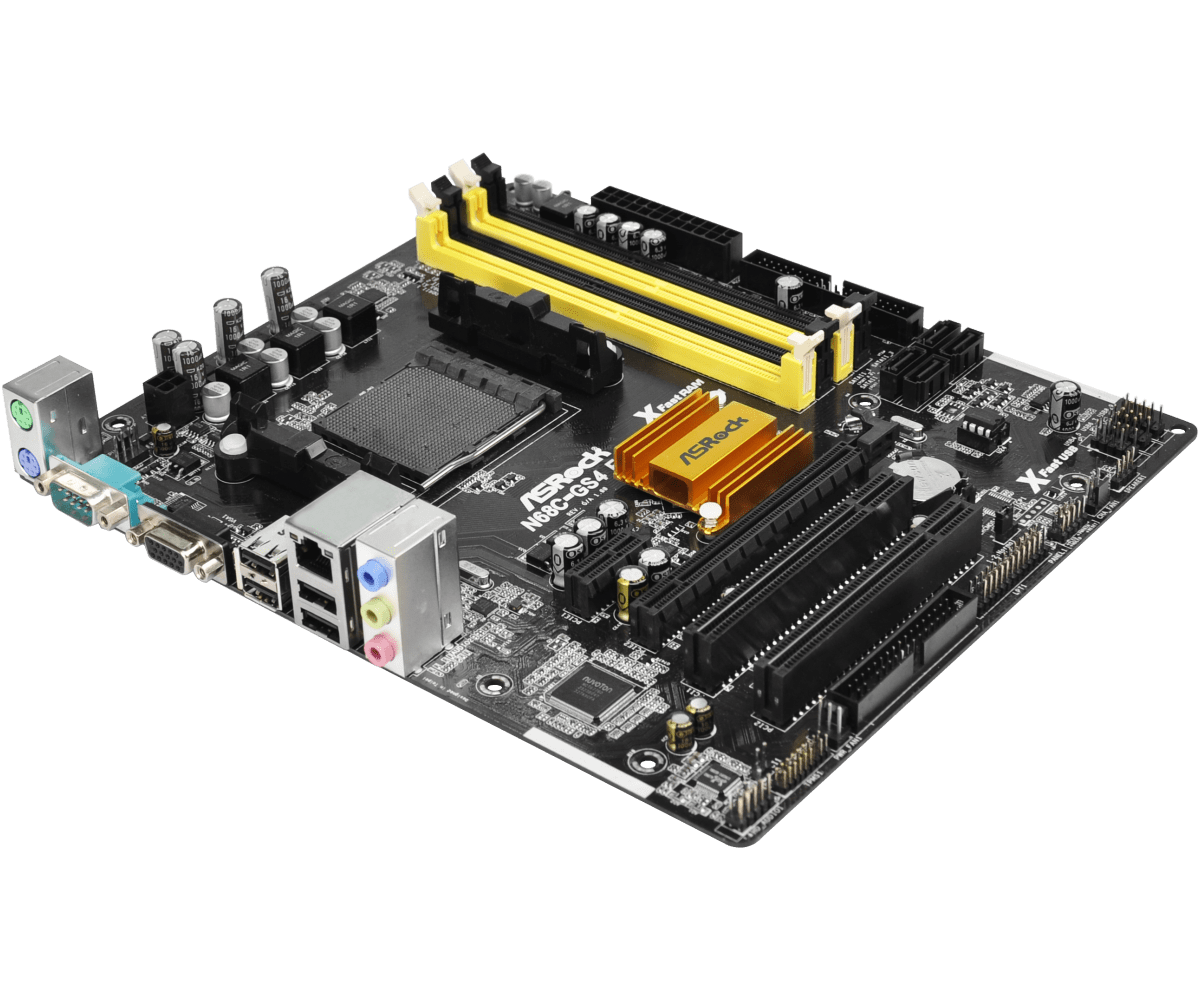

De ASRock N68C-GS4 FX is een Micro ATX Socket AM3+ moederbord gebaseerd op de Nvidia nForce 630a chipset. Het bord dient gecombineerd te worden met DDR3 of DDR2 geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de ASRock N68C-GS4 FX 4 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 5.1 kanaals geluid en is gebaseerd op een Realtek ALC662 chip.

Eigenschappen:
Moederbord – M-ATX | AMD AM3+ | 2x DDR2 | 2x DDR3 | 4x Sata-300 | 2x PCI | PCI-e x1 | PCI-e x16 | 8x USB 2.0 | VGA

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: ASRock N68C-GS4 FX
Socket: AMD AM3+
Categorie: Moederborden
Merk: ASRock
EAN: 4717677322446
Staat: Refurbished – Bios bijgewerkt naar de laatste versie
SKU: 90-MXGSN0-A0UAYZ, N68C-GS4 FX
Garantie:
6 Maanden

pakketinhoud:
– Moederbord (ASRock N68C-GS4 FX)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels


A-Style
– Home Cloud


CPU
– Support up to 95W Socket AM3+ processors
– Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Support up to 95W Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processors
– Supports UCC feature (Unlock CPU Core)
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 1000MHz (2.0 GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport Technology

*For more information, please refer to the “CPU Support List”.


Chipset
– NVIDIA® GeForce 7025 / nForce 630a


Memory
– Dual Channel DDR3/DDR2 Memory Technology*
– 2 x DDR3 DIMM Slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB**
– 2 x DDR2 DIMM Slots
– Supports DDR2 1066***/800/667/533 non-ECC, un-buffered memory
– Max. capacity of system memory: 8GB**

*The memory controller is integrated in the CPU.
AM2 and AM2+ CPUs can support only DDR2 memory.
AM3 CPUs can support DDR2 and DDR3 memory (not simultaneously).
AM3+ CPUs can support only DDR3 memory.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

***Support with AM3 / AM2+ CPU.


BIOS
– 8Mb AMI Legal BIOS
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– CPU, VCCM, NB Voltage multi-adjustment


Graphics
– Integrated NVIDIA® GeForce 7025 graphics
– DX9.0 VGA, Pixel Shader 3.0
– Max. shared memory 256MB
– Supports D-Sub with max. resolution up to 1920×1440 @ 60Hz


Audio
– 5.1 CH HD Audio (Realtek ALC662 / VIA® VT1705 Audio Codec)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Qualcomm® Atheros® AR8171
– Supports Qualcomm® Atheros® Security Wake On Internet Technology
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express x16 Slot
– 1 x PCI Express x1 Slot
– 2 x PCI Slots


Storage
– 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug

*This mainboard does not support RAID with HDDs of 3TB and above.


Connector
– 1 x ATA133 IDE Connector (supports 2 x IDE devices)
– 1 x Floppy Connector
– 1 x Print Port Header
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Serial Port: COM1
– 1 x D-Sub Port
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Unique Feature
– ASRock OC Tuner
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock OC DNA
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%


Accessories
– I/O Shield


Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU Quiet Fan
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– Micro ATX Form Factor


OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht1 kg
AMD

AM3(+)

Merk

Asrock

Chipset

NVIDIA® GeForce 7025 / nForce 630a, Southbridge: AMD SB710

Formaat

Micro-ATX

Geheugentype

DDR2, DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), Serial Port: COM1, USB 2.0

Opslag interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

ASRock N68C-GS4 FX socket AM3 moederbord

Snelle levering

Merk: Asrock
Model: ASRock N68C-GS4 FX
Socket: AMD AM3(+)
Geheugen: 2x DDR2 & 2x DDR3 (16GB Max)
Form-Factor: Micro-ATX
EAN: 4717677322446
SKU: 90-MXGSN0-A0UAYZ, N68C-GS4 FX


Artikelnummer: N68C-GS4 FX Categorieën: , , Tags: , ,
